Saab 9-5 (650) 2010-2011 Engine injektion system

Group 3a Electrical, general, section 4100

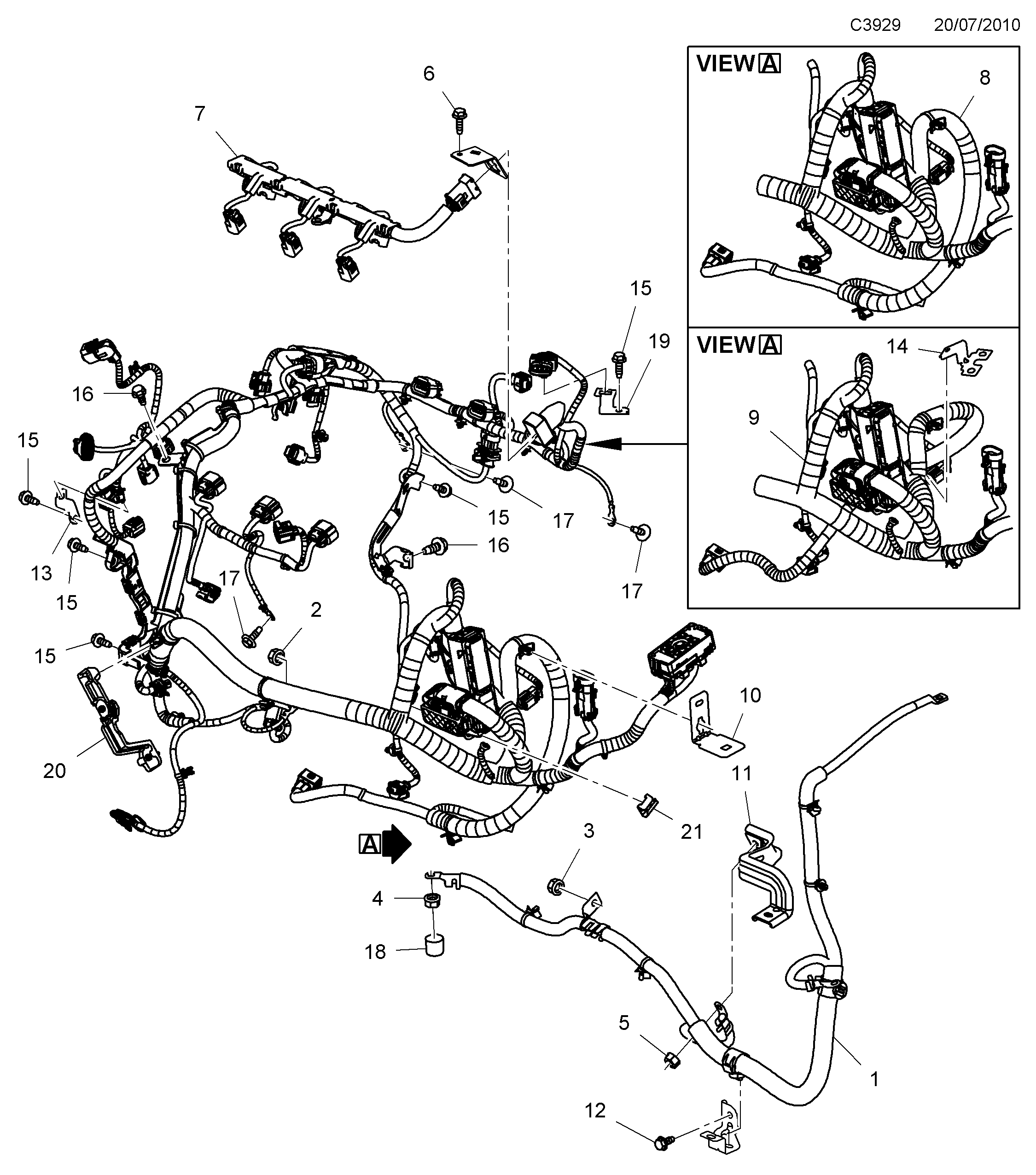

Saab 9-5 (650) Engine injektion system diagram
PosArticlePart No.
1Cable harness13295305
2Hexagon nut11097592
3Hexagon nut5125984
5Hexagon nut11104191
6Screw11588712
7Cable harness12623358
8Cable harness13299905
9Cable harness13299907
9Cable harness13299909
10Bracket13259114
11Bracket55562735
12Hexagon screw11588722
13Bracket55562737
14Bracket13293011
15Hexagon screw11588711
17Hexagon screw11609466
18Protective cap55564522
19Retainer13283001
20Bracket55565963
21Retainer55557751
