Saab 9-5 (650) 2010-2011 Engine injektion system

Group 3a Electrical, general, section 4000

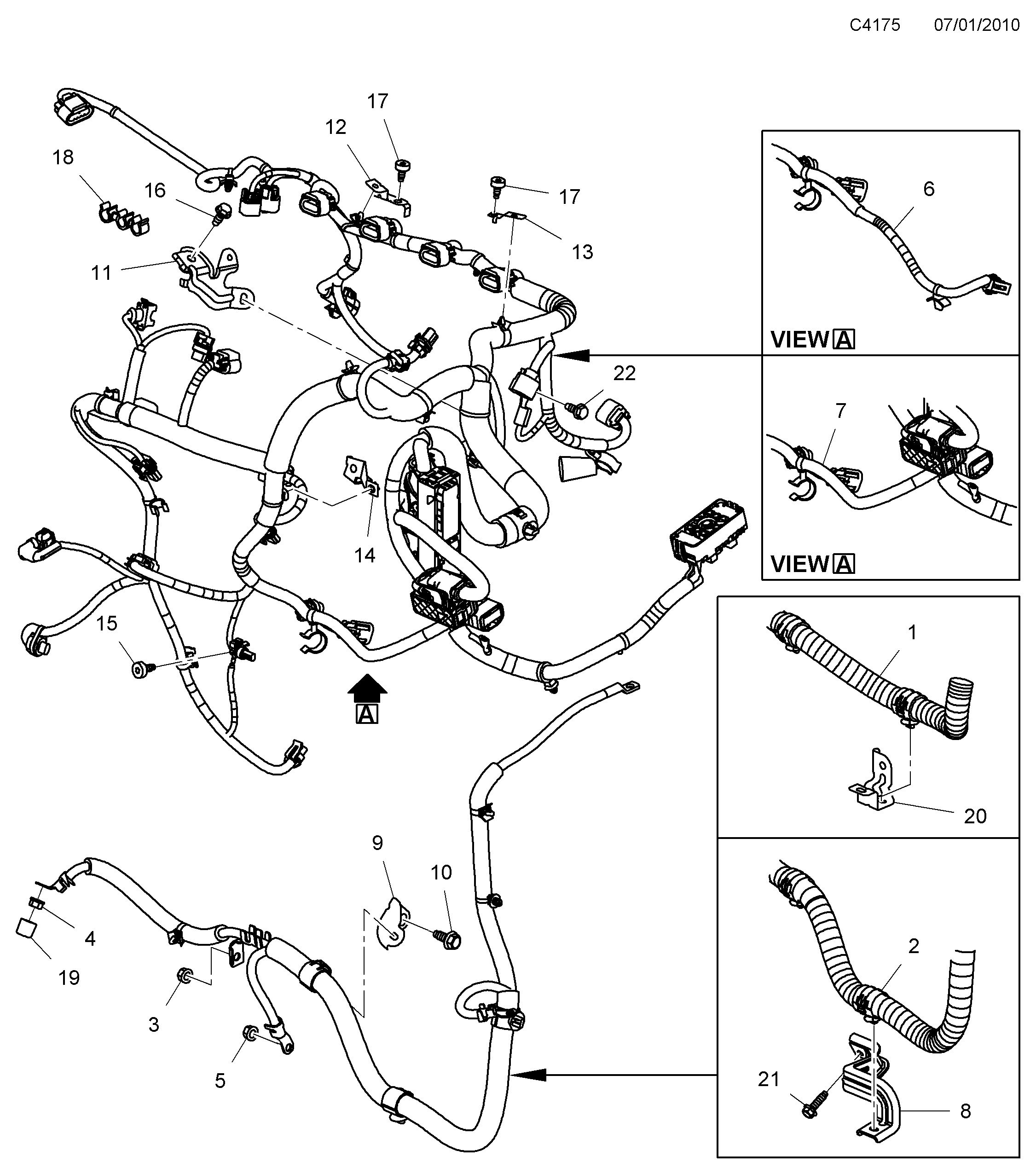

Saab 9-5 (650) Engine injektion system diagram

Pos	Article	Part No.
1	Cable harness	13295300
1	Cable harness	13348723
2	Cable harness	13295302
2	Cable harness	13348722
3	Hexagon nut	5125984
5	Hexagon nut	11104191
6	Cable harness	13299897
6	Cable harness	13353966
6	Cable harness	13353963
6	Cable harness	13321569
7	Cable harness	13299898
7	Cable harness	13353965
7	Cable harness	13353964
7	Cable harness	13321568
8	Bracket	55562735
9	Retainer	55562733
10	Hexagon screw	11588722
11	Bracket	13287046
12	Bracket	55353515
13	Bracket	55556085
14	Bracket	55556443
15	Hexagon screw	11588711
18	Clip	13292928
19	Protective cap	55564522
20	Bracket	13293010
21	Screw	11562004
22	Screw	11588564
