Saab 9-5 (650) 2010-2011 Saab Parking Assistance (SPA) Camera

Group 3a Electrical, general, section 3800

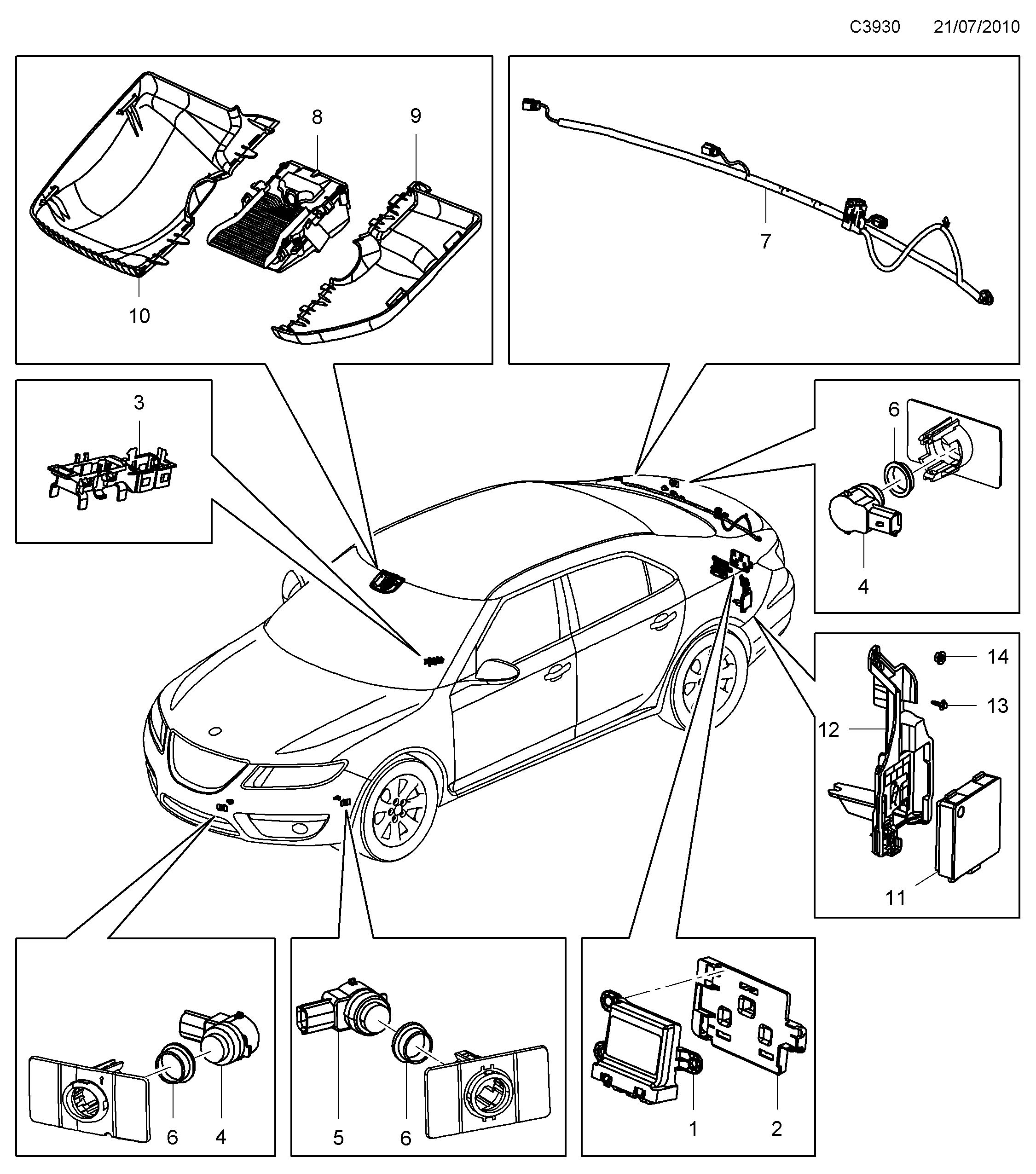

Saab 9-5 (650) Saab Parking Assistance (SPA) Camera diagram
PosArticlePart No.
1Control unit13333995
1Control unit20934328
1Control unit20895445
1Control unit20928121
2Support bracket12770267
3Bracket12842687
4Sensor93191445
5Sensor13291381
6Retaining ring15161630
7Cable harness12783516
8Camera13330410
9Cover13305299
10Cover13305300
11Sensor20780910
12Bracket13330270
12Bracket13330271
13Screw11589011
14Nut11609411
