Saab 9-5 (650) 2010-2011 Loudspeaker Booster

Group 3a Electrical, general, section 3100

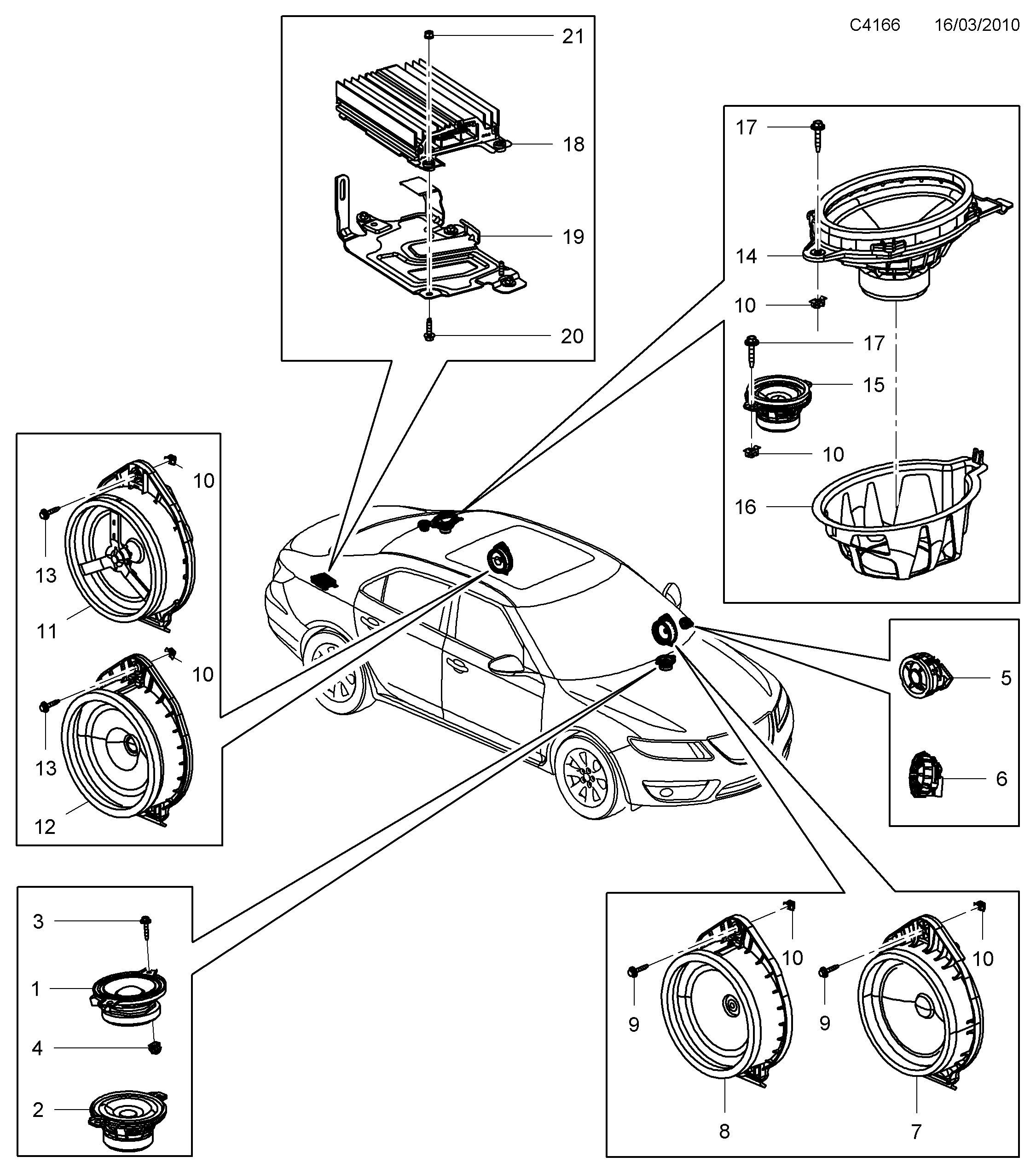

Saab 9-5 (650) Loudspeaker Booster diagram
PosArticlePart No.
1Loudspeaker13257497
2Loudspeaker13240954
3Plate screw11589015
4Press nut11561629
5Loudspeaker13240950
6Loudspeaker13264618
7Loudspeaker13240949
8Loudspeaker25854027
9Screw11589012
10Press nut11570654
11Loudspeaker20967782 (replaces 13240948)
12Loudspeaker15911768
14Loudspeaker13264617
15Loudspeaker13265079
16Cover moulding13283217
18Booster12821870
19Bracket13283216
20Hexagon screw11519377
21Nut11900451
