Saab 9-5 (650) 2010-2011 Windshield wiper

Group 3a Electrical, general, section 2500

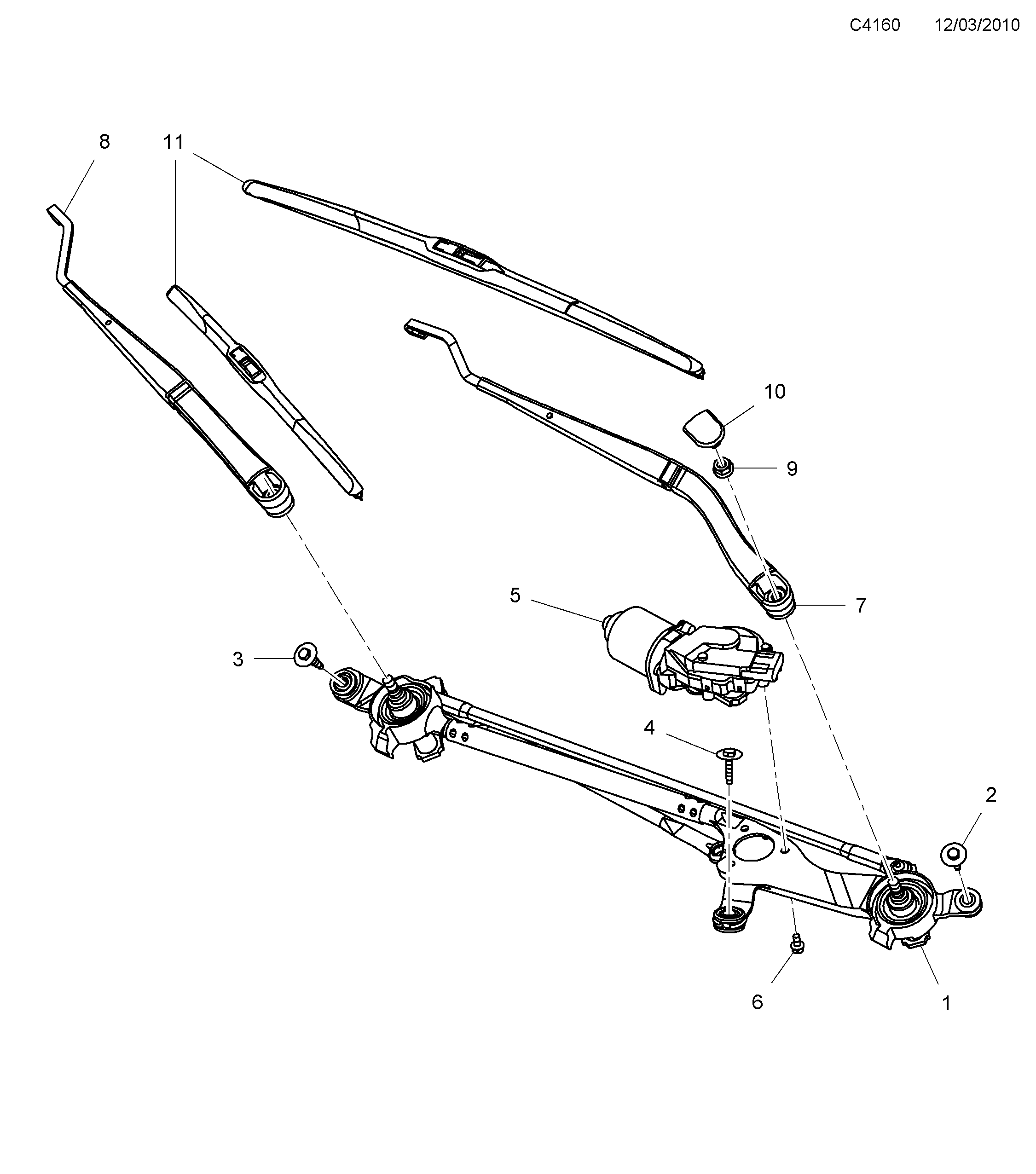

Saab 9-5 (650) Windshield wiper diagram
PosArticlePart No.
1Spindle frame13299355
1Spindle frame13299356
2Screw13282464
3Screw13282465
4Hexagon screw11570279
5Electrical motor13299357
5Electrical motor13299358
6Screw13277079
7Wiper arm13299359
8Wiper arm13299360
7Wiper arm13299361
8Wiper arm13299362
9Nut11609634
10Cap blanking10341324
11Wiper blade13342283
11Wiper blade13342284
