Saab 9-5 (650) 2010-2011 Battery

Group 3a Electrical, general, section 100

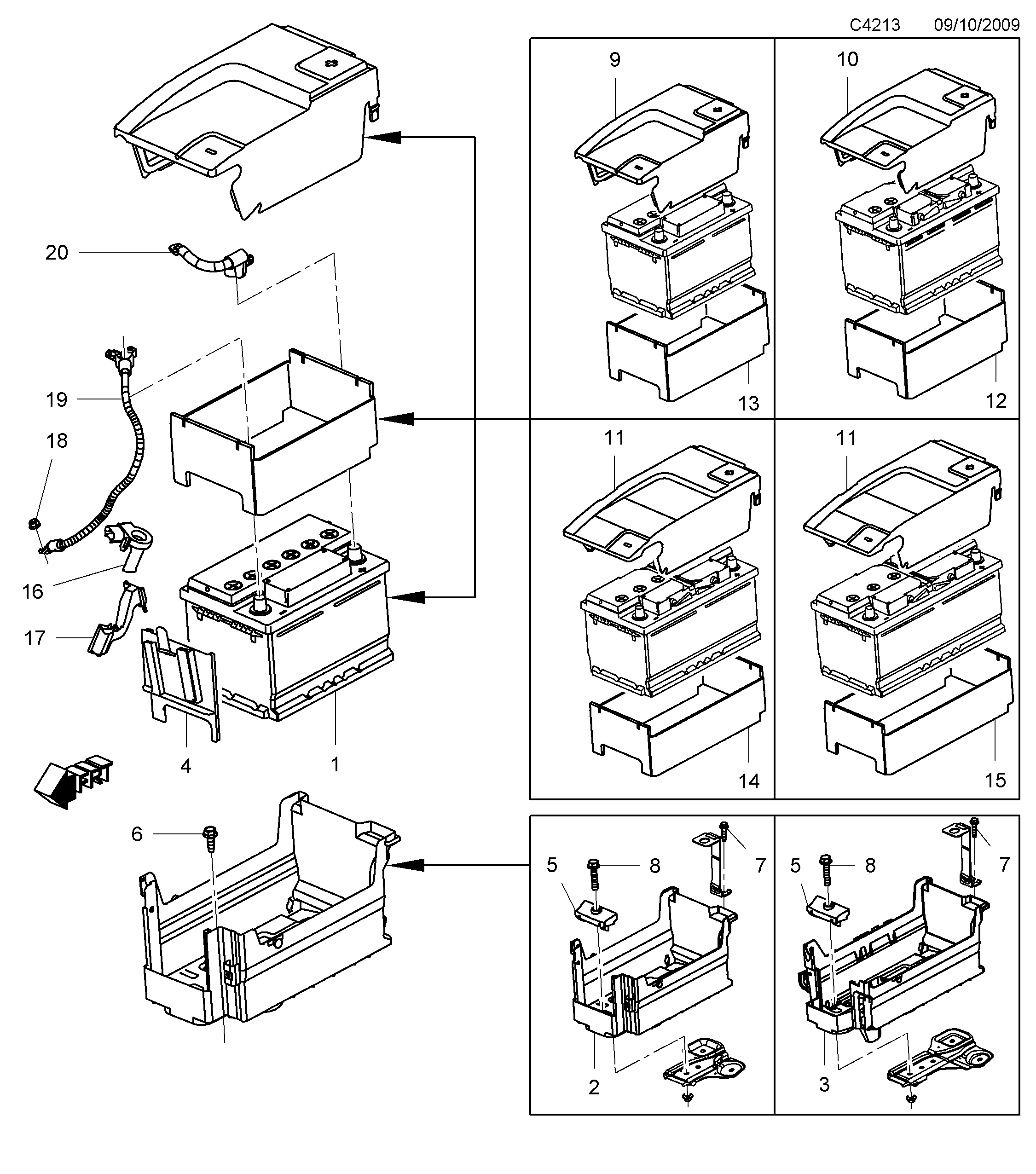

Saab 9-5 (650) Battery diagram

Pos	Article	Part No.
2	Battery tray	13310739
2	Battery tray	13310740
3	Battery tray	13330951
	Battery tray	20910581
	Battery tray	20910582
	Battery tray	13334616
	Battery tray	13334617
4	Partition wall	13256587
4	Partition wall	13303002
5	Bracket	9115187
5	Bracket	13308589
5	Bracket	13308590
6	Bolt	11519387
7	Hexagon screw	11588725
8	Hexagon screw	11588729
9	Cover	12772394
9	Cover	20957081
10	Cover	12772395
10	Cover	20957082
11	Cover	13330946
12	Cover	12772400
13	Cover	12772401
14	Cover	12772403
15	Cover	12772405
16	Sensor	13502261
17	Bracket	13267214
18	Hexagon nut	11104191
19	Battery cable	13238741
19	Ground cable	13327257
19	Battery cable	13238742
19	Ground cable	13327256
19	Ground cable	13327258
20	Battery cable	13293987
20	Battery cable	13293804
