Saab 9-5 (650) 2011-2011 Vacuum system

Group 2 Engine, section 7195

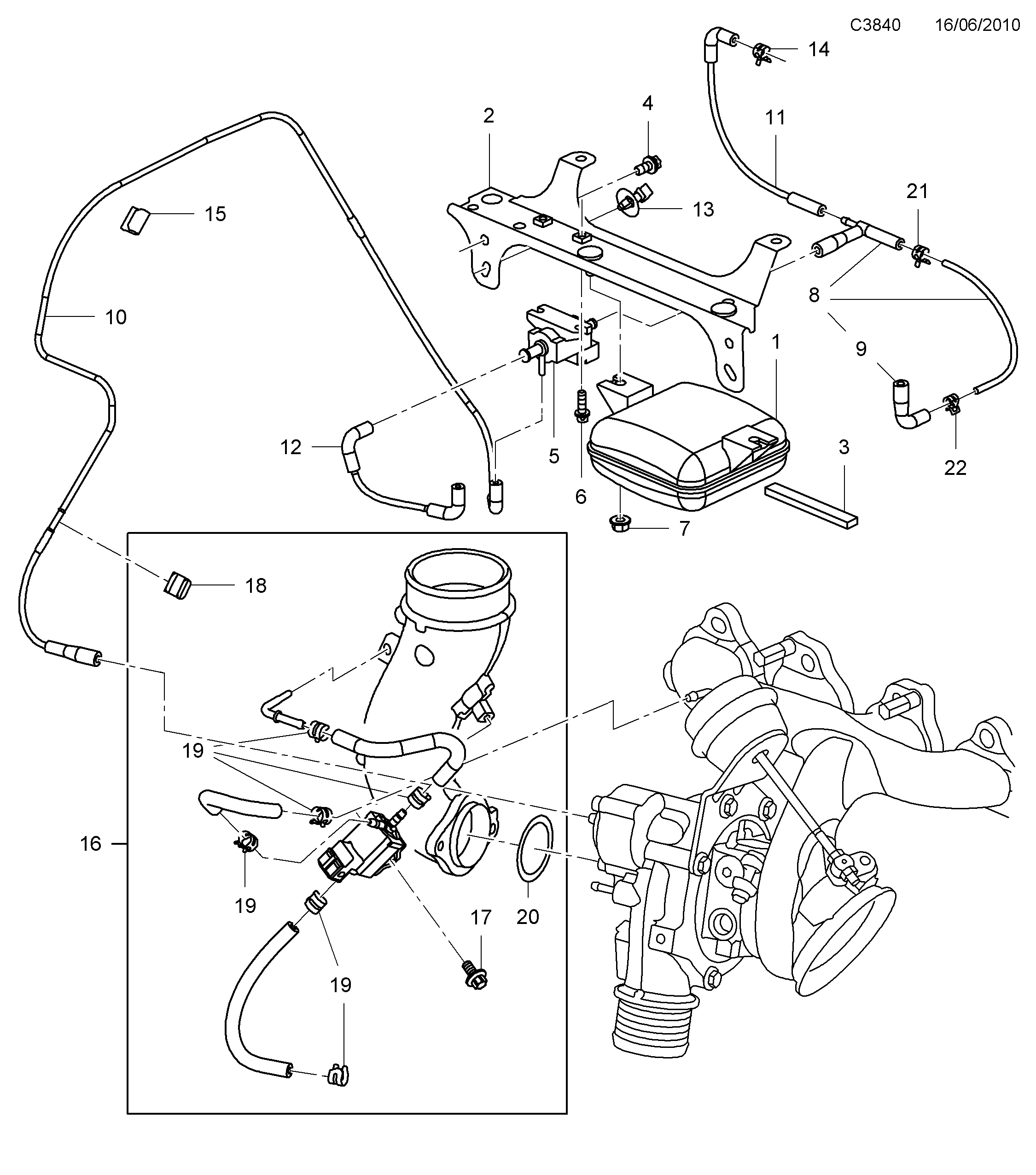

Saab 9-5 (650) Vacuum system diagram

Pos	Article	Part No.
1	Vacuum tank	90502721
2	Bracket	55564761
3	Insulation	90424424
4	Screw	11093971
5	Valve	55557829
6	Torx screw	11097862
7	Self-locking nut	11094425
8	Pipe	55556020
9	Elbow pipe	55562187
10	Vacuum pipe	55564497
11	Pipe	55556021
12	Pipe	55556019
13	Clip	55354536
14	Hose clamp	55564197
15	Clip	55567992
16	Adapter	55564496
17	Torx screw	11093973
18	Clip	55567758
19	Hose clamp	55573074
20	Gasket	55567764
21	Hose clamp	55572038
22	Hose clamp	55572035
