Saab 9-5 (650) 2010-2011 Turbocharger

Group 2 Engine, section 7100

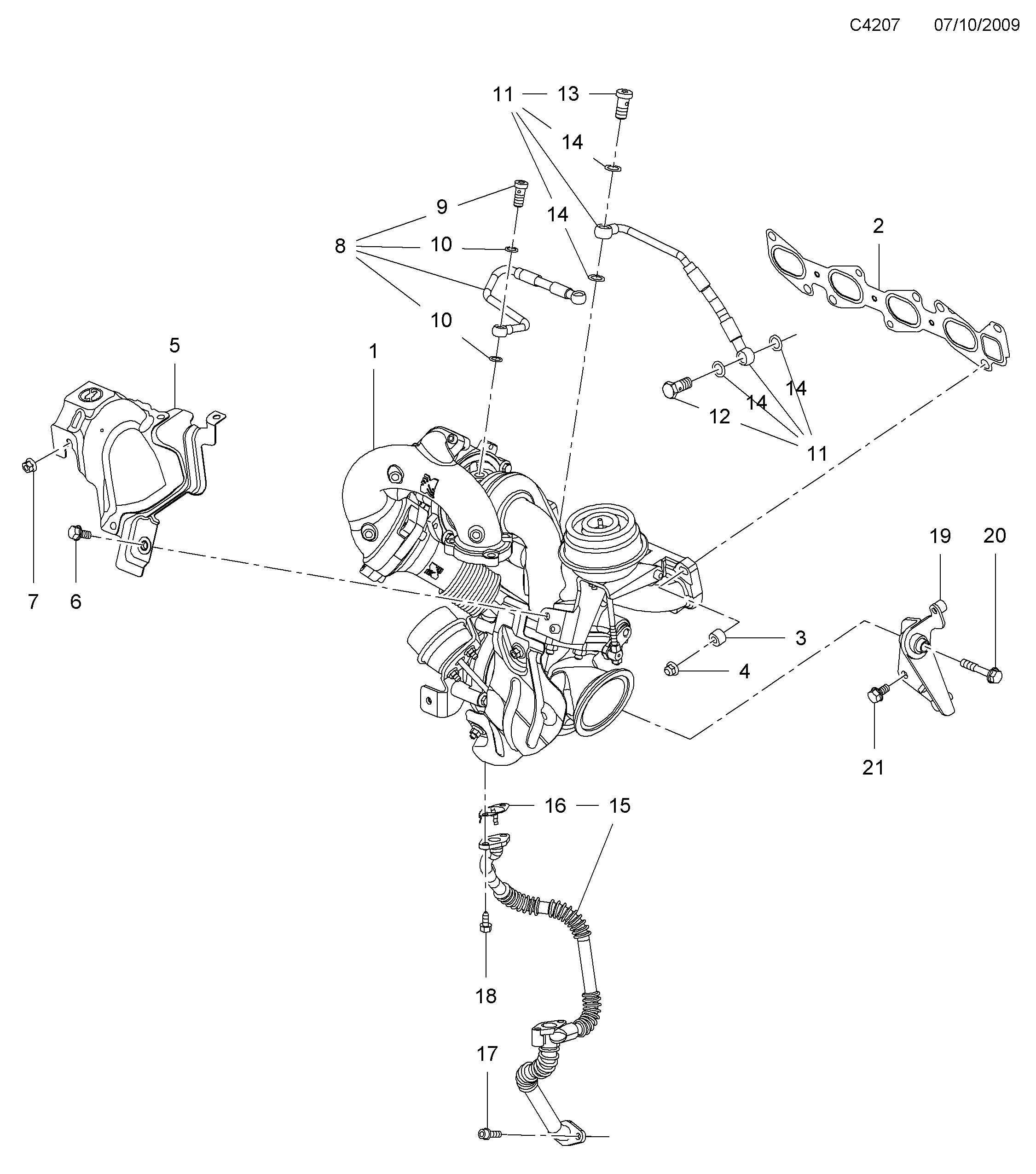

Saab 9-5 (650) Turbocharger diagram

Pos	Article	Part No.
1	Exhaust manifold	55562590
2	Gasket	55566281
3	Spacer piece	55573766
4	Flange nut	55566282
5	Heat shield	55565063
6	Screw	93179333
7	Nut	11516075
8	Pipe	55568901
9	Bolt	55566550
10	O-ring	12855333
11	Pipe	55568918
12	Hollow screw	55568920
13	Hollow screw	55568921
14	Gasket	12855485
15	Return line	55564719
16	Gasket	55564721
17	Screw	93191758
18	Screw	12855365
19	Bracket	55568903
20	Screw	93166866
21	Torx screw	93187889
