Saab 9-5 (650) 2010-2011 Oil pan, oil filter Oil cooler

Group 2 Engine, section 710

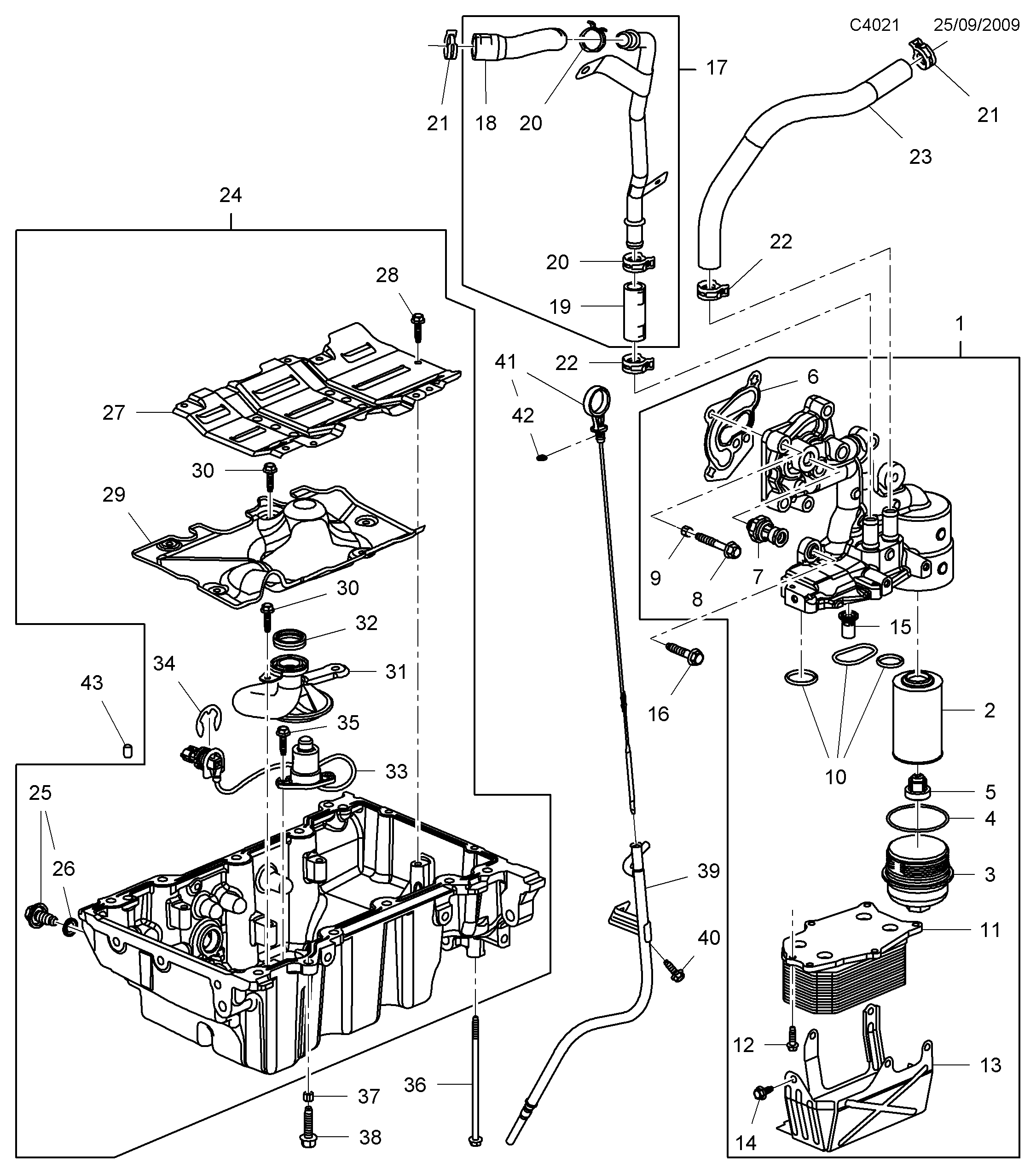

Saab 9-5 (650) Oil pan, oil filter Oil cooler diagram

Pos	Article	Part No.
1	Adapter	12623425
2	Filter insert	93186310
3	Cover	12583470
4	O-ring	12577653
5	Charge air bypass valve	25014612
6	Gasket	12591604
8	Hexagon screw	11588728
9	Sleeve	11588327
10	Gasket kit	12634385
11	Oil cooler	12572837
12	Hexagon screw	11589084
13	Shield	12580718
14	Hexagon screw	92138940
15	Valve	25013759
16	Hexagon screw	11588726
17	Pipe	55563354
18	Hose	55563568
19	Hose	55563567
20	Hose clamp	90572590
21	Hose clamp	90572594
23	Hose	55353821
24	Oil pan	12623431
25	Screw plug	11562588
26	O-ring	12616850
27	Baffle plate	12575362
28	Hexagon screw	11588713
29	Guard plate	12572089
31	Suction pipe	12571135
32	Seal	12566837
36	Hexagon screw	11588424
38	Hexagon screw	11519979
39	Guide tube	12593629
40	Screw	11588712
41	Dipstick, oil	12602232
42	O-ring	24504091
43	Pin	22531637
