Saab 9-5 (650) 2010-2011 Turbocharger

Group 2 Engine, section 7025

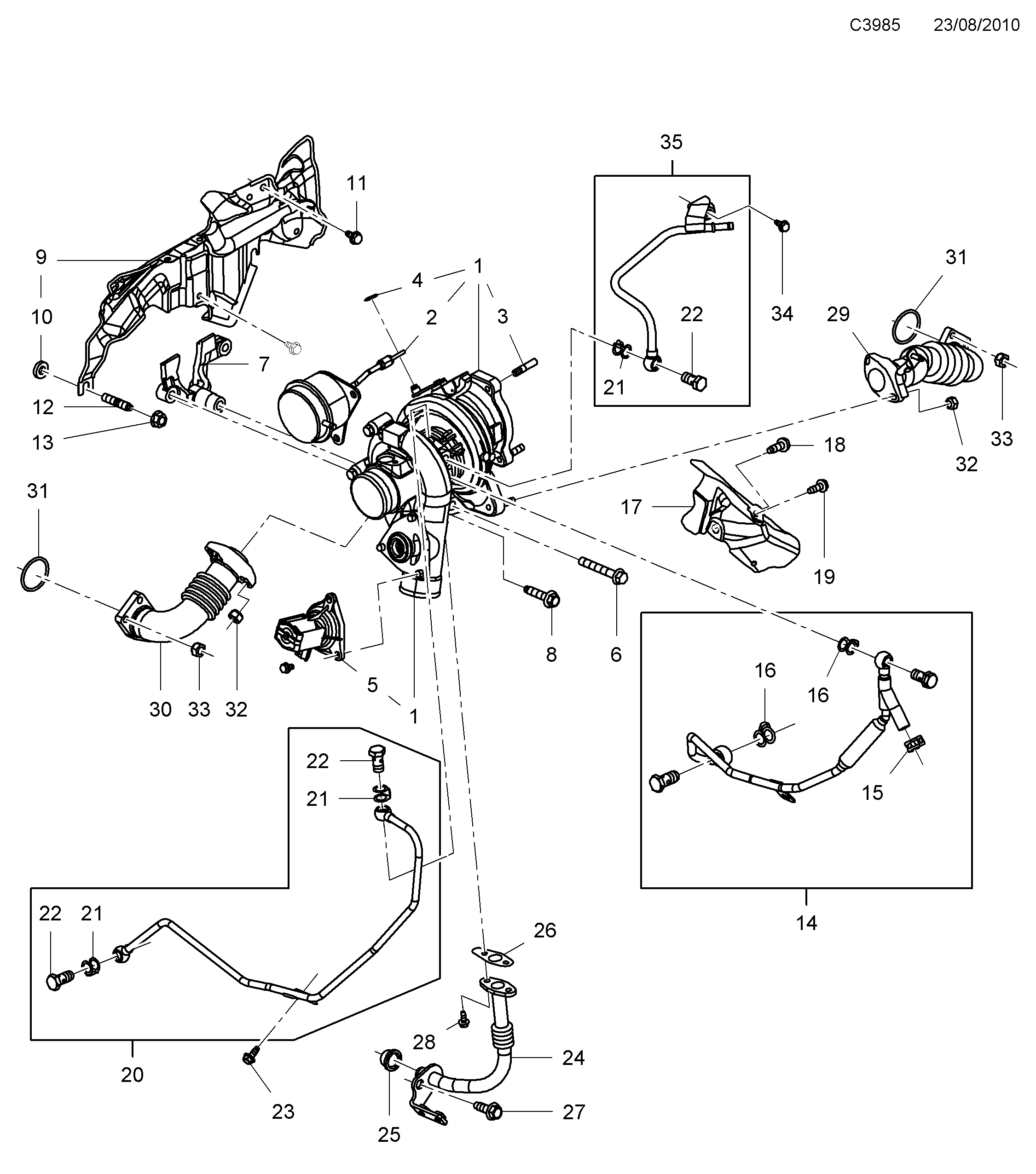

Saab 9-5 (650) Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	12637545
2	Pressure regulator	12640037
3	Stud	90490326
4	Clip	55556252
5	Charge air bypass valve	55566510
6	Hexagon screw	12797161
7	Bracket	12791720
8	Hexagon screw	11588741
9	Heat shield	55561792
10	Spacer	12798367
11	Hexagon screw	92138940
12	Stud	55170020
13	Nut	11514597
14	Hose	12633896
15	Hose clamp	90530642
16	Sealing ring	55170004
17	Heat shield	12590208
18	Hexagon screw	55565774
19	Screw	11588712
20	Pipe	12634817
21	Gasket	12633903
22	Hollow screw	11611014
24	Pipe	12791584
25	O-ring	12575552
26	Seal	12598447
27	Hexagon screw	11588738
29	Pipe	12791726
30	Pipe	12791727
31	Gasket	12636390
32	Nut	55560956
34	Hexagon screw	11588711
35	Pipe	12633899
