Saab 9-5 (650) 2010-2011 Oil pan, oil filter Oil cooler

Group 2 Engine, section 700

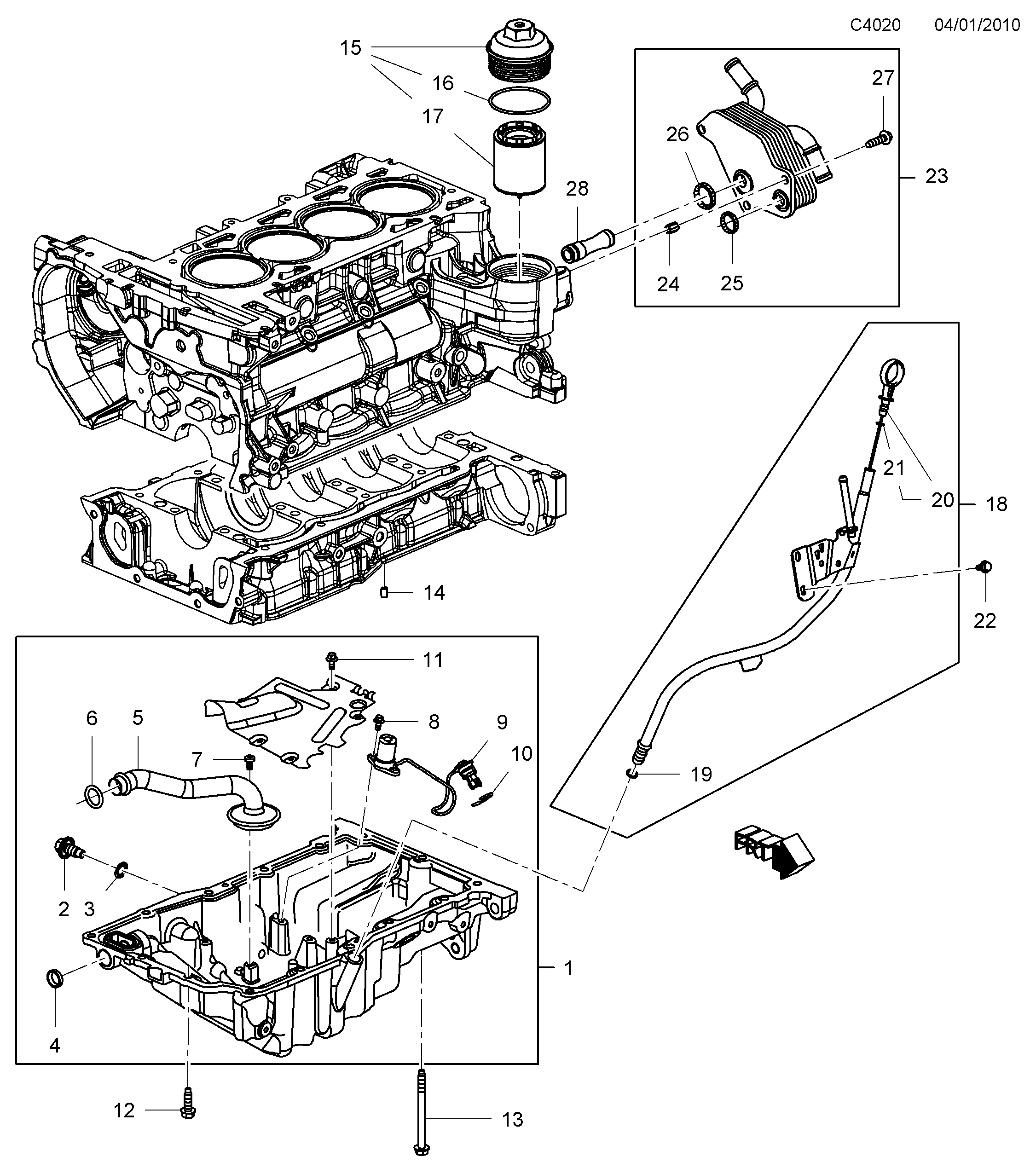

Saab 9-5 (650) Oil pan, oil filter Oil cooler diagram

Pos	Article	Part No.
1	Oil pan	55563937
2	Plug	11519933
3	Gasket	3536966
4	Plug	55567113
5	Oil pipe	12787811
6	O-ring	90537413
7	Screw	92153146
8	Screw	92153027
9	Sensor, oil lever	24461500
10	Clip	12617903
11	Screw	92153025
12	Screw	11589311
13	Screw	11589253
14	Pin	22531637
15	Oil filter	12605565
16	Sealing ring	12580255
17	Filter insert	12605566
18	Guide tube	12625463
19	O-ring	12607449
20	Dipstick, oil	12604225
21	O-ring	24504091
22	Screw	11588712
23	Oil cooler	12639408
24	Retainer	11588615
25	Seal	12601372
26	Seal	12601371
27	Screw	11588724
28	Tube	12790785
