Saab 9-5 (650) 2011-2011 Oil pan, oil filter Oil cooler

Group 2 Engine, section 695

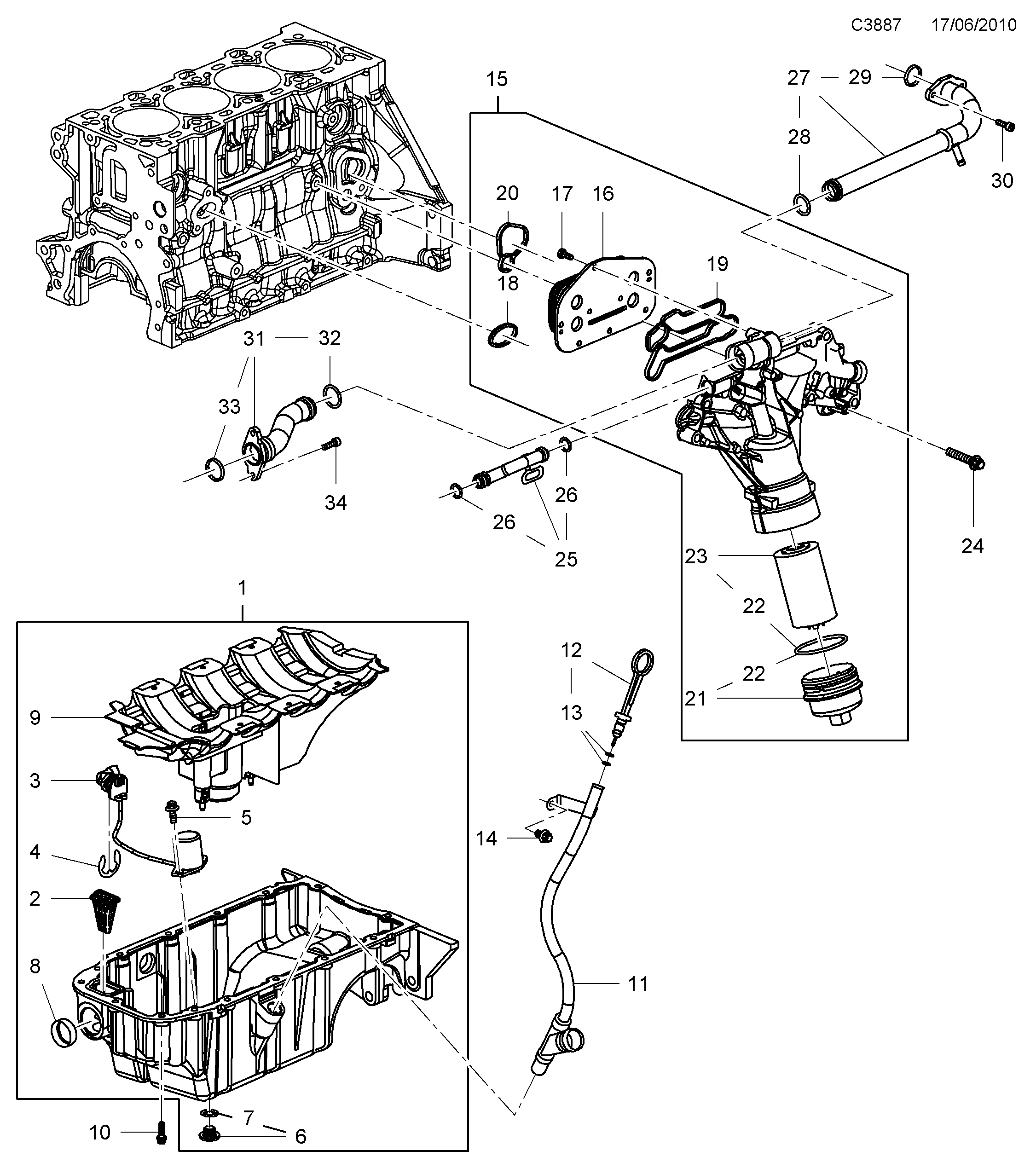

Saab 9-5 (650) Oil pan, oil filter Oil cooler diagram

Pos	Article	Part No.
1	Oil pan	55355595
2	Screen	55353334
6	Drain screw	96023264
7	Sealing ring	90528145
8	Lock plug	11056093
9	Baffle plate	55353308
10	Screw	11095001
11	Guide tube	55565719
12	Dipstick, oil	55355598
13	O-ring	90467373
14	Torx screw	11093973
15	Oil filter housing	93186325
16	Radiator	55355603
17	Screw	55353320
18	Gasket	55353319
19	Gasket	55355602
20	Gasket	55353321
21	Cover	55355604
22	O-ring	55353326
23	Filter insert	93185674
24	Screw	11096082
25	Pipe	55353327
26	O-ring	55353328
27	Pipe	55559110
28	O-ring	55354068
29	O-ring	55556547
30	Screw	11096011
31	Pipe	55353330
32	O-ring	55353331
33	Gasket	24445723
