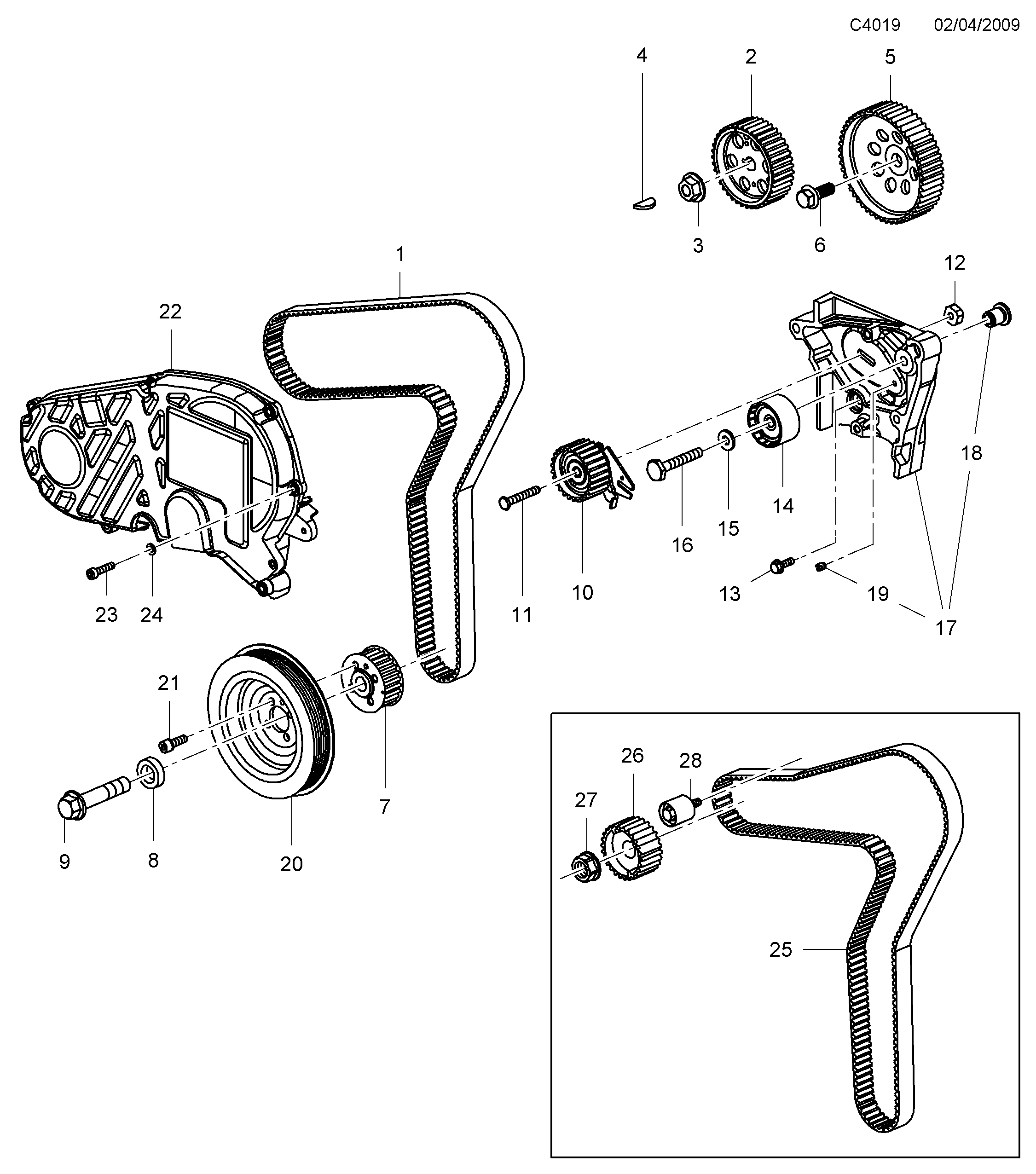

Group 2 Engine, section 625
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tooth belt | 93178812 |
| 2 | Chain gear | 55566016 |
| 3 | Nut | 93178824 |
| 4 | Key | 93179143 |
| 5 | Chain gear | 93178380 |
| 6 | Screw | 93177298 |
| 7 | Chain gear | 55566012 |
| 7 | Crankshaft gear | 93178821 |
| 8 | Spacer ring | 93178818 |
| 9 | Screw | 93178819 |
| 10 | Belt tensioner | 55566028 |
| 11 | Screw | 55566027 |
| 12 | Nut | 55566026 |
| 13 | Screw | 93178829 |
| 14 | Guide roller | 93178807 |
| 15 | Washer | 93178972 |
| 16 | Screw | 93178810 |
| 17 | Bracket | 55566023 |
| 18 | Bushing | 55566024 |
| 19 | Screw | 93178973 |
| 20 | Pulley | 55563401 |
| 21 | Screw | 93191382 |
| 22 | Cover | 55564429 |
| 23 | Hexagon screw | 12855483 |
| 24 | Washer | 93178977 |
| 25 | Tooth belt | 55564437 |
| 26 | Chain gear | 55564430 |
| 27 | Nut | 55564431 |
| 28 | Idler pulley | 55568974 |
