Saab 9-5 (650) 2010-2011 Turbocharger

Group 2 Engine, section 6000

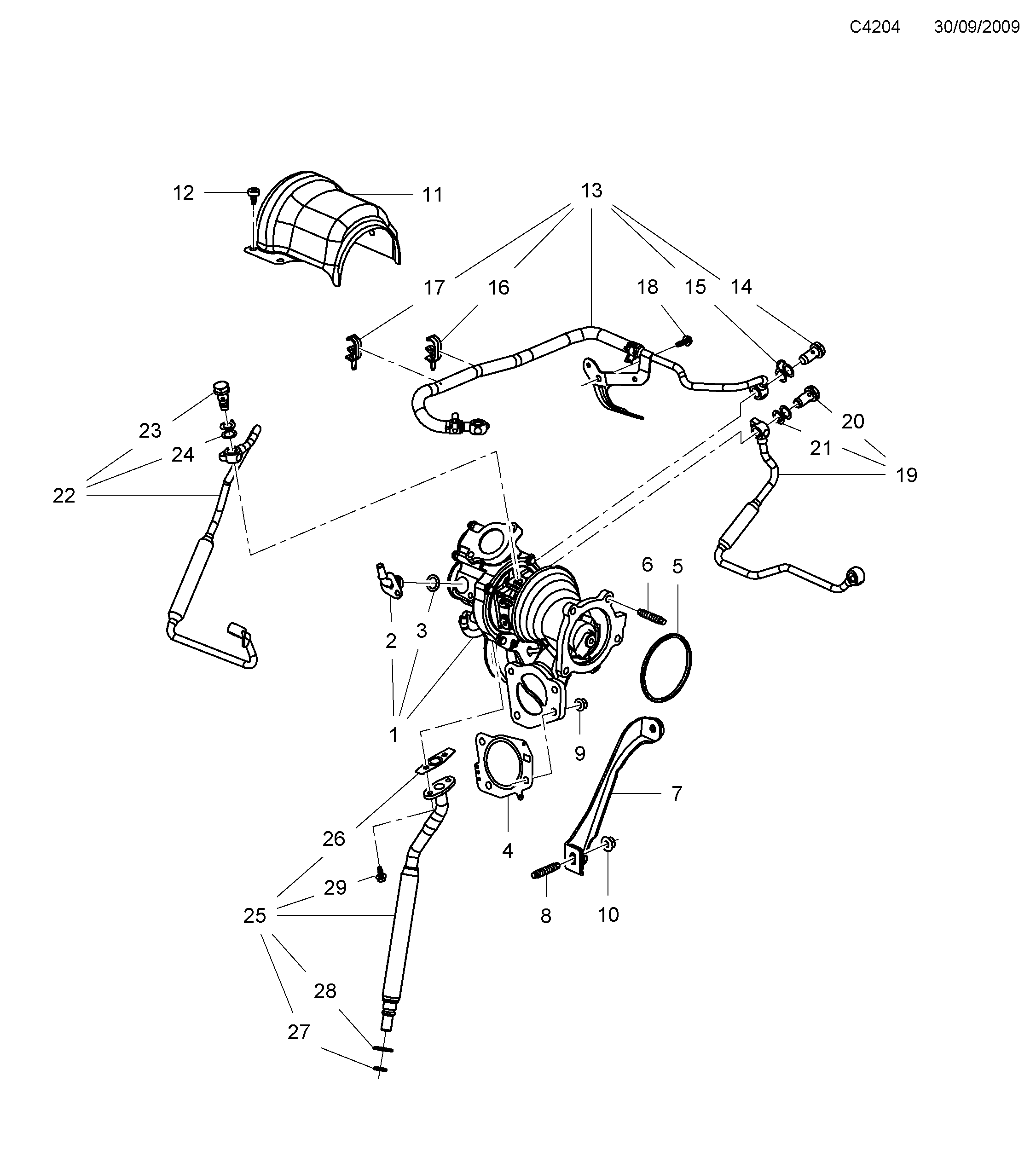

Saab 9-5 (650) Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	12618667 (replaces 12634179)
2	Fitting	12634180
3	Seal	12605720
1	Turbocharger	12618667
2	Fitting	12605965
4	Gasket	12618586
5	Gasket	12609878
6	Stud	11609870
7	Bracket	55569786
9	Nut	11588835
10	Nut	15032594
11	Heat shield	12610652
12	Hexagon screw	92138940
12	Hexagon screw	11588711
13	Hose	12626613
14	Screw	11561875
15	Gasket	12626102
16	Clip	12614767
17	Clip	12614768
18	Screw	11588712
19	Pipe	12618974
19	Pipe	12626640
22	Pipe	12625383
23	Screw	11561946
24	Gasket	12611119
25	Hose	12605462
26	Gasket	12589435
27	O-ring	12612816
28	Seal	12612817
25	Hose	12626643
