Saab 9-5 (650) 2010-2011 Coolant pump Thermostat

Group 2 Engine, section 5810

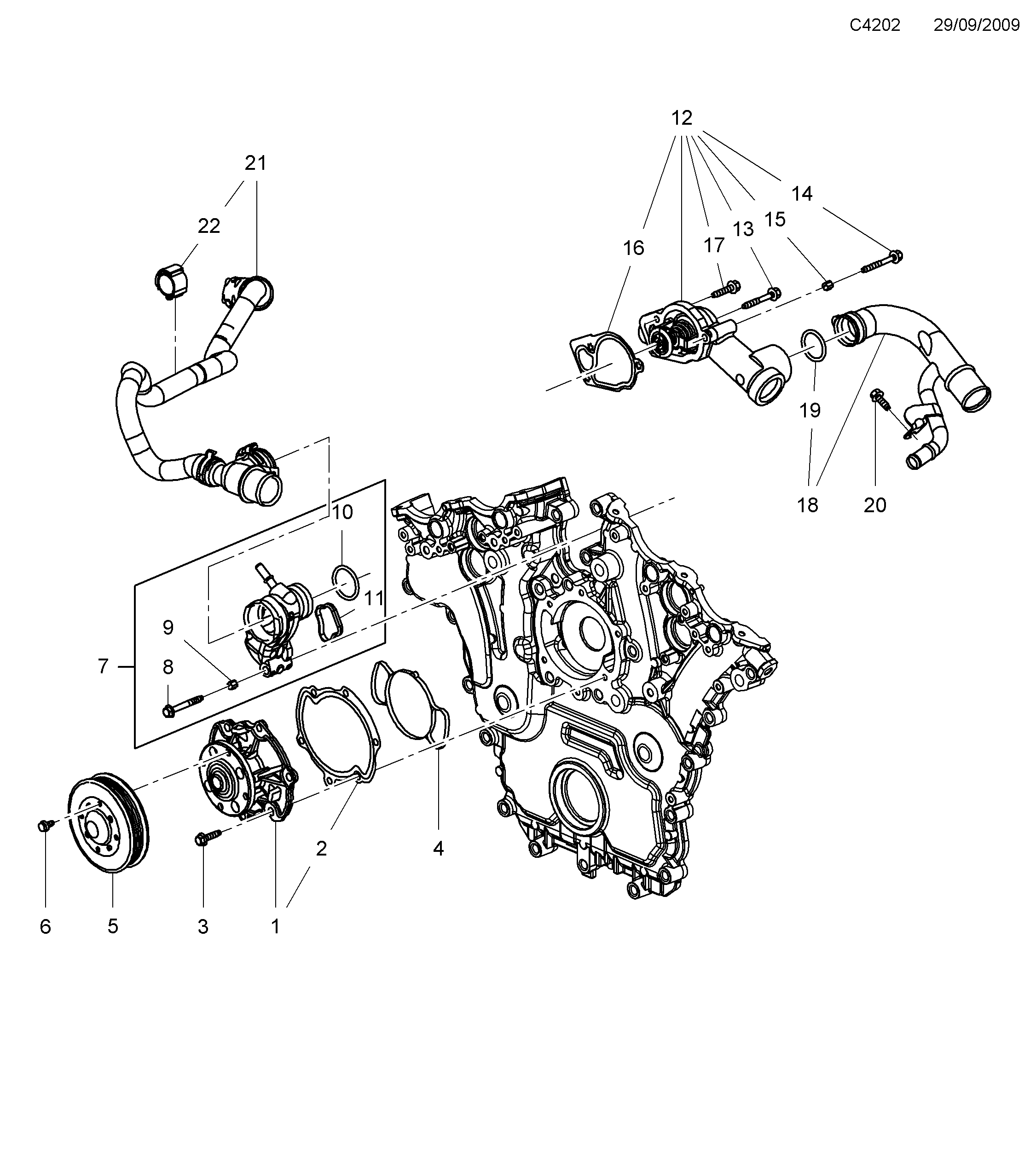

Saab 9-5 (650) Coolant pump Thermostat diagram

Pos	Article	Part No.
1	Water pump	92149009
2	Gasket	12576326
3	Hexagon screw	11588713
4	Seal	12593045
5	Pulley	12611587
6	Hexagon screw	11588940
7	Reservoir	12623051
8	Hexagon screw	11588718
9	Spacer piece	12570372
10	O-ring	12584040
11	Gasket	12566429
12	Thermostat housing	12608657
13	Hexagon screw	11519972
14	Hexagon screw	11519973
15	Sleeve	11518792
16	Gasket	12625923
17	Hexagon screw	11519968
18	Pipe	12603276
19	O-ring	12588317
20	Screw	11588712
21	Hose	13315207
22	Clip	13137556 (replaces 13136378)
