Saab 9-5 (650) 2010-2011 Coolant pump Thermostat

Group 2 Engine, section 5800

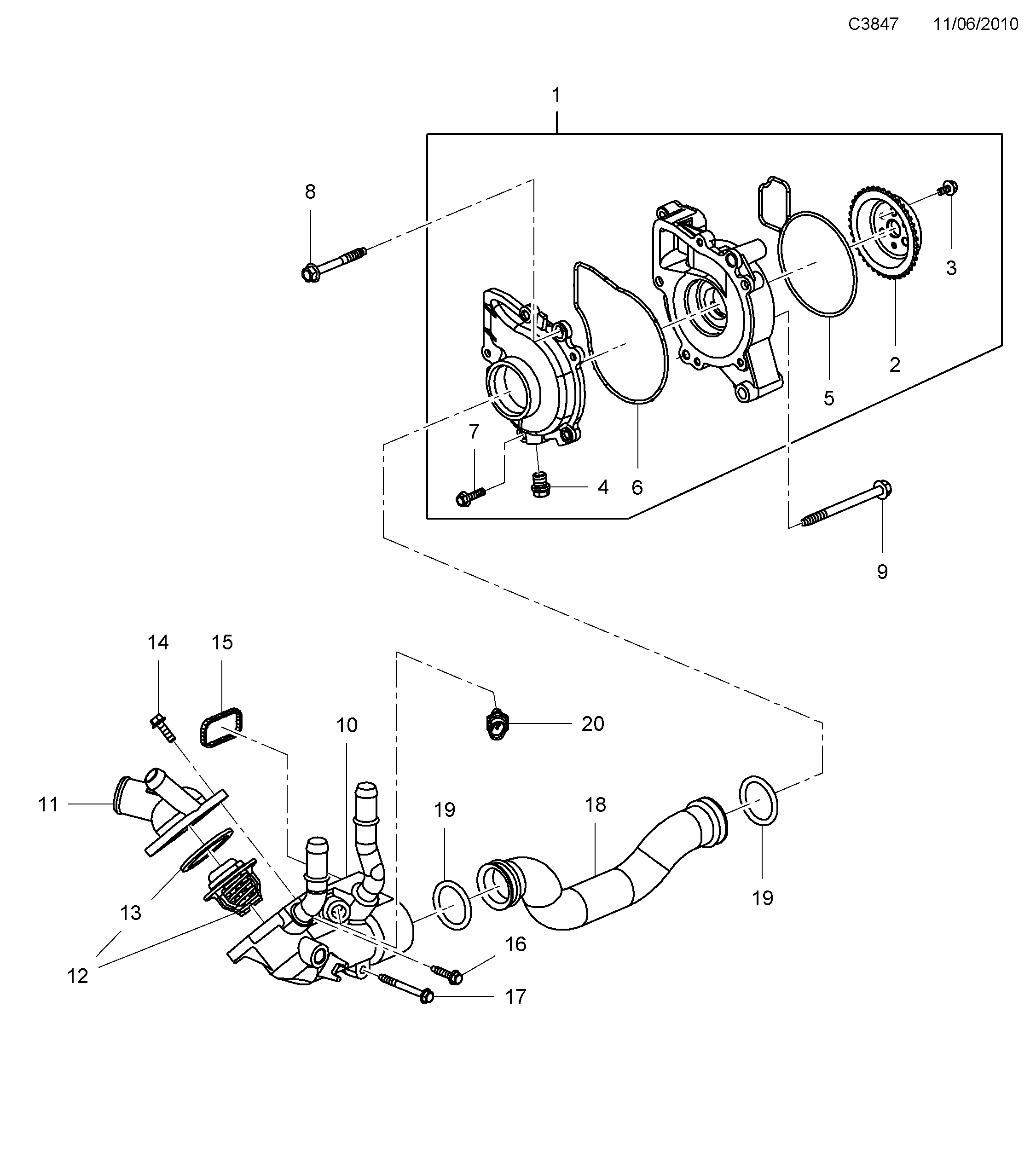

Saab 9-5 (650) Coolant pump Thermostat diagram

Pos	Article	Part No.
1	Water pump	12630084
2	Chain gear	90537298
3	Screw	11518061
4	Screw plug	90537623
5	Gasket	24439799
6	Gasket	24446365
7	Screw	11518063
8	Screw	11900262
9	Screw	11589253
10	Thermostat housing	12605853
11	Connector	12599085
12	Thermostat	12622410
13	Gasket	3522676
14	Screw	11588714
15	Gasket	90537471
16	Screw	11900244
17	Screw	11588719
18	Pipe	12592401
19	O-ring	90537379
