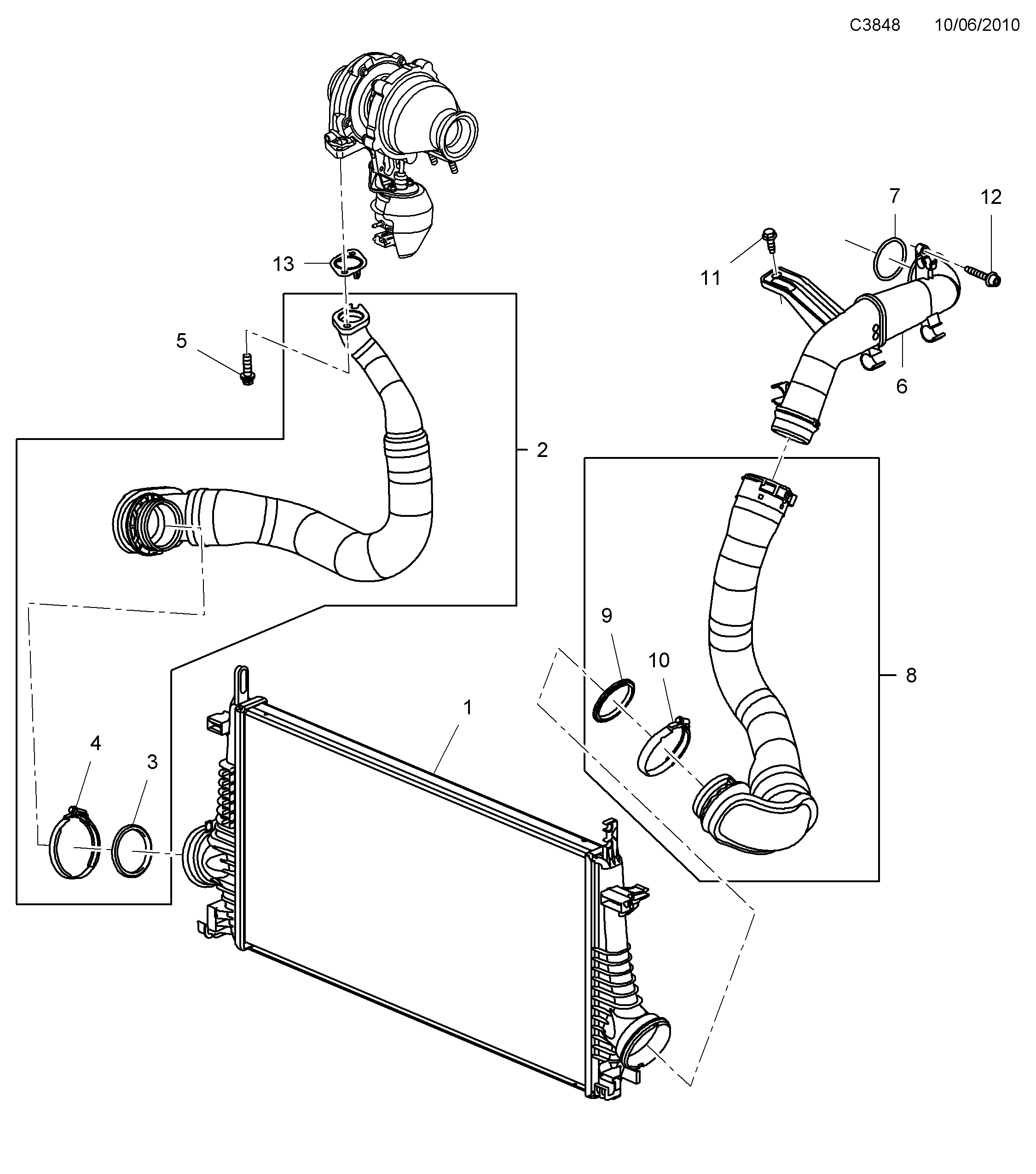

Group 2 Engine, section 5575
| Pos | Article | Part No. |
|---|---|---|
| 1 | Charge air cooler | 13241751 |
| 2 | Hose | 20911707 |
| 3 | Seal | 13265349 |
| 4 | Hose clamp | 13280718 |
| 5 | Torx screw | 11097422 |
| 6 | Pipe | 13240176 |
| 7 | Gasket | 55351945 |
| 8 | Pipe | 13242121 |
| 9 | Seal | 13280719 |
| 11 | Screw | 11588712 |
| 12 | Screw | 13294059 |
| 13 | Gasket | 13247992 |
