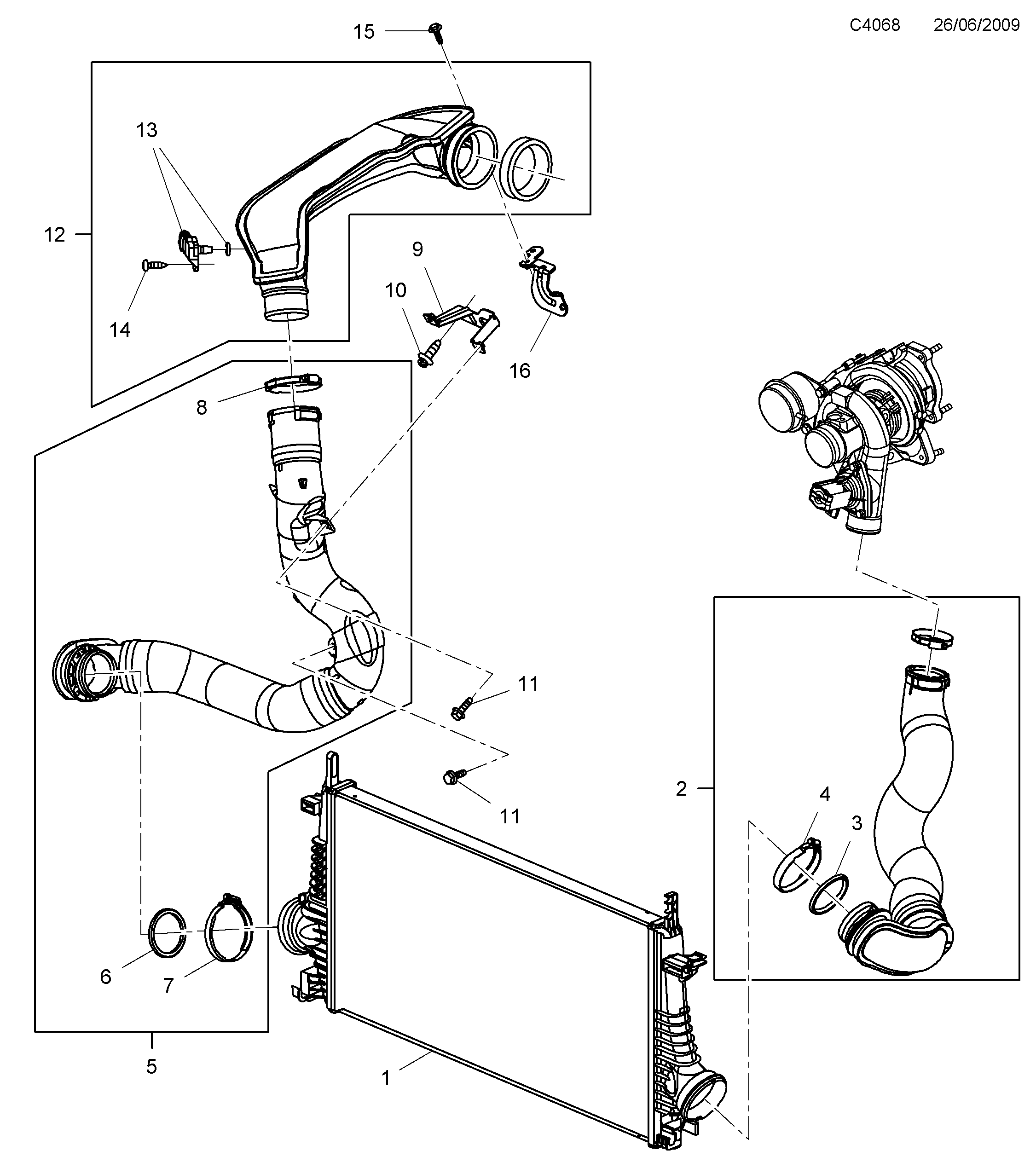

Group 2 Engine, section 5550
| Pos | Article | Part No. |
|---|---|---|
| 1 | Charge air cooler | 13241751 |
| 2 | Hose | 13220161 |
| 3 | Seal | 13265349 |
| 4 | Hose clamp | 13280718 |
| 5 | Hose | 13242139 |
| 6 | Seal | 13280719 |
| 8 | Hose clamp | 24442228 |
| 9 | Bracket | 55563355 |
| 10 | Hexagon screw | 11900026 |
| 11 | Screw | 11588712 |
| 12 | Pipe | 13220171 |
| 13 | Sensor | 93170309 |
| 14 | Screw | 92153222 |
| 15 | Screw | 11519376 |
| 16 | Pipe bracket | 13240173 |
