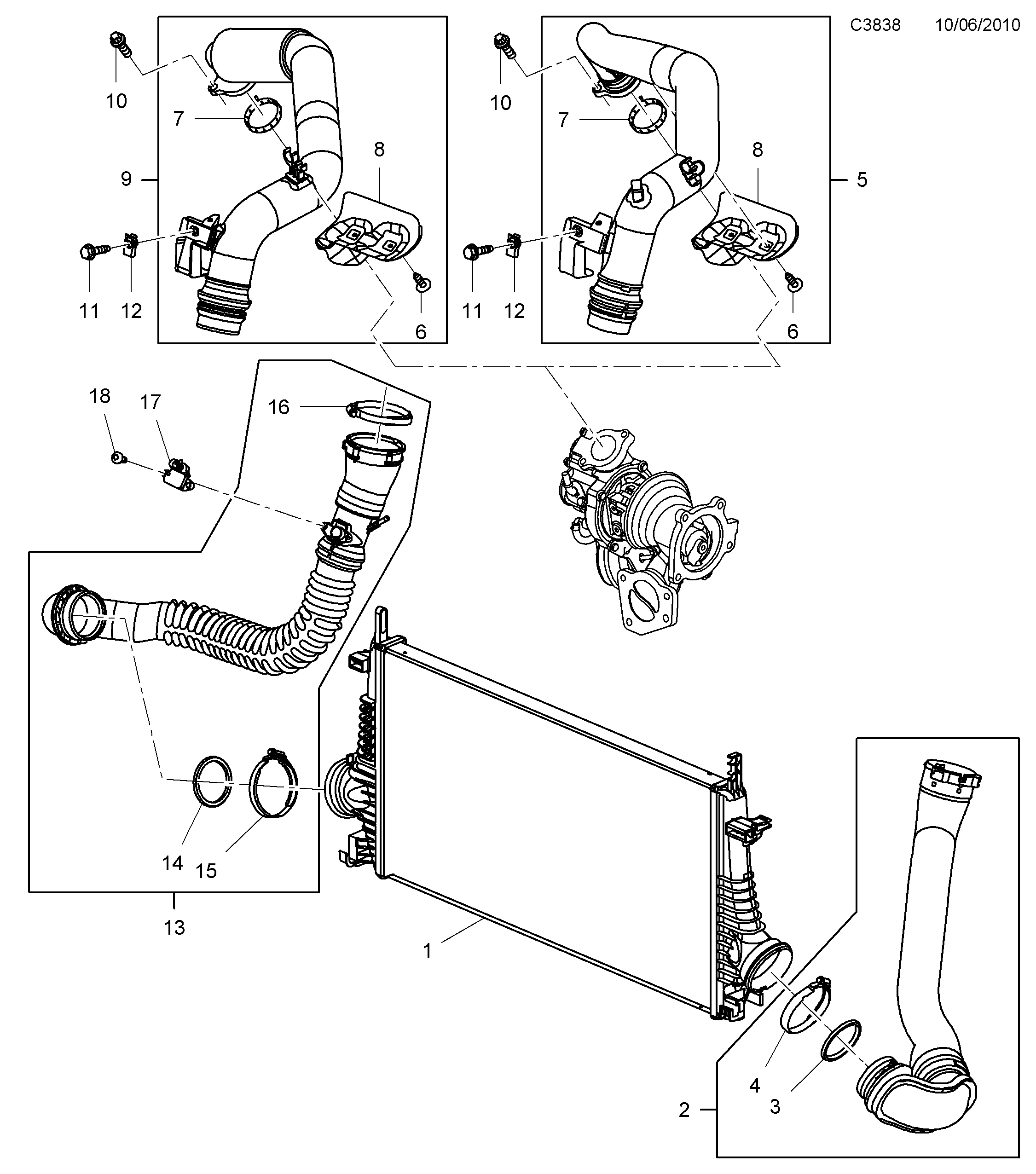

Group 2 Engine, section 5500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Charge air cooler | 13241751 |
| 2 | Hose | 13220160 |
| 2 | Hose | 13334020 |
| 3 | Seal | 13265349 |
| 4 | Hose clamp | 13280718 |
| 5 | Pipe | 13306046 |
| 6 | Screw | 13306048 |
| 7 | Seal | 13265351 |
| 8 | Heat shield | 13306047 |
| 9 | Pipe | 13334019 |
| 10 | Torx screw | 11097422 |
| 11 | Screw | 11588712 |
| 12 | Nut | 11507067 |
| 13 | Hose | 13220167 |
| 14 | Seal | 13280719 |
| 16 | Hose clamp | 24468104 |
