Saab 9-5 (650) 2010-2011 Radiator Expansion tank

Group 2 Engine, section 5100

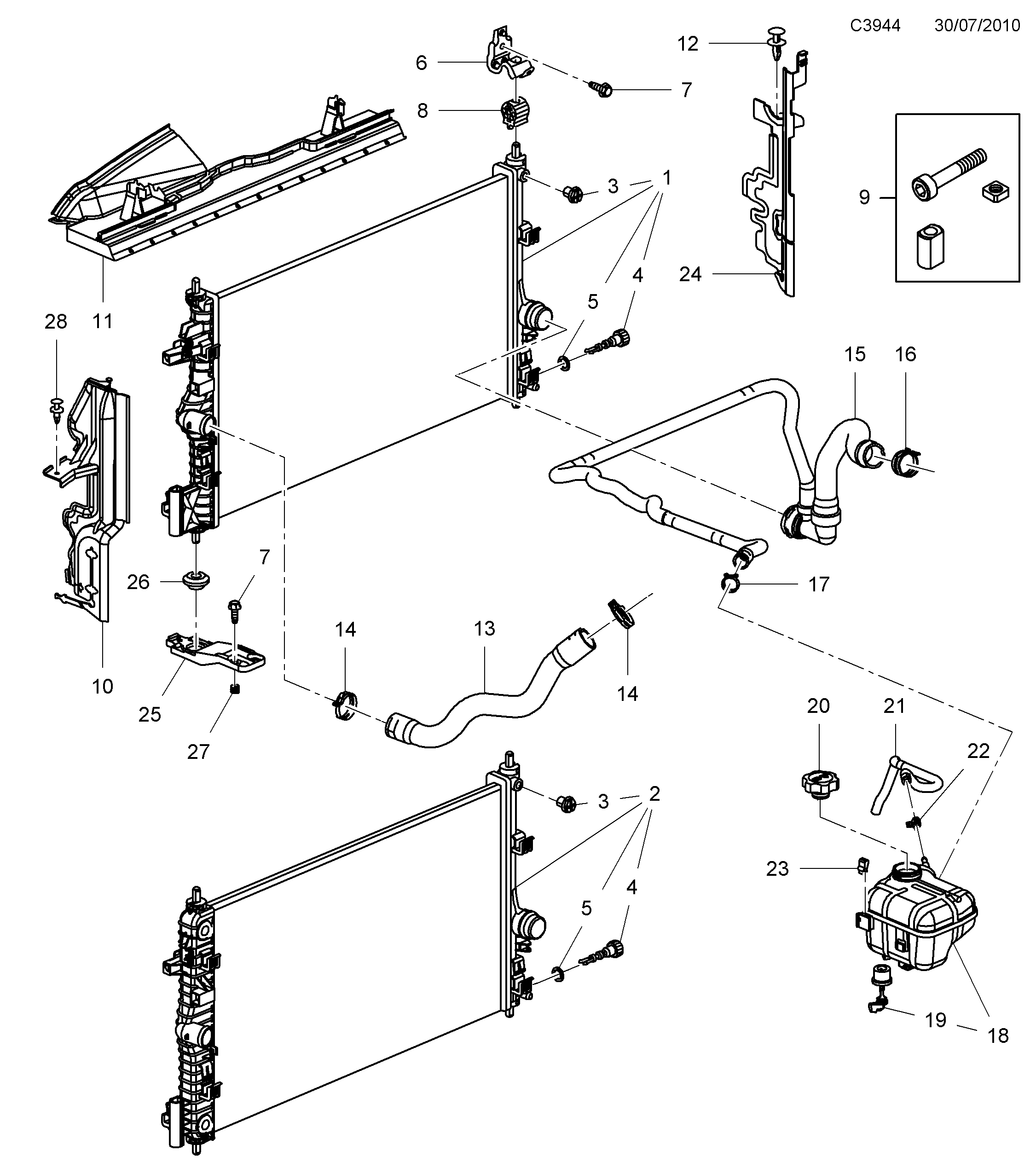

Saab 9-5 (650) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	13241725
2	Radiator	13241724
3	Drain screw	93188651
4	Drain cock	13241754
5	Washer	13280295
6	Support bracket	13239137
7	Screw	11588723
8	Buffer	13306606
9	Bolt	13282869
10	Air guide	13317910
11	Air guide	13317908
11	Air guide	13317909
12	Expanding rivet	11589290
13	Hose	13239142
14	Hose clamp	13162312
15	Hose	13220128
17	Hose clamp	13283239
18	Expansion tank	13220123
19	Control unit	13271444
20	Cap	13502353
21	Hose	13220154
22	Hose clamp	90530642
23	Clamp	13284504
24	Baffle	13266369
25	Bracket	13337769
26	Buffer	13304695
27	Thread insert	11087031
