Saab 9-5 (650) 2010-2011 Radiator Expansion tank

Group 2 Engine, section 5050

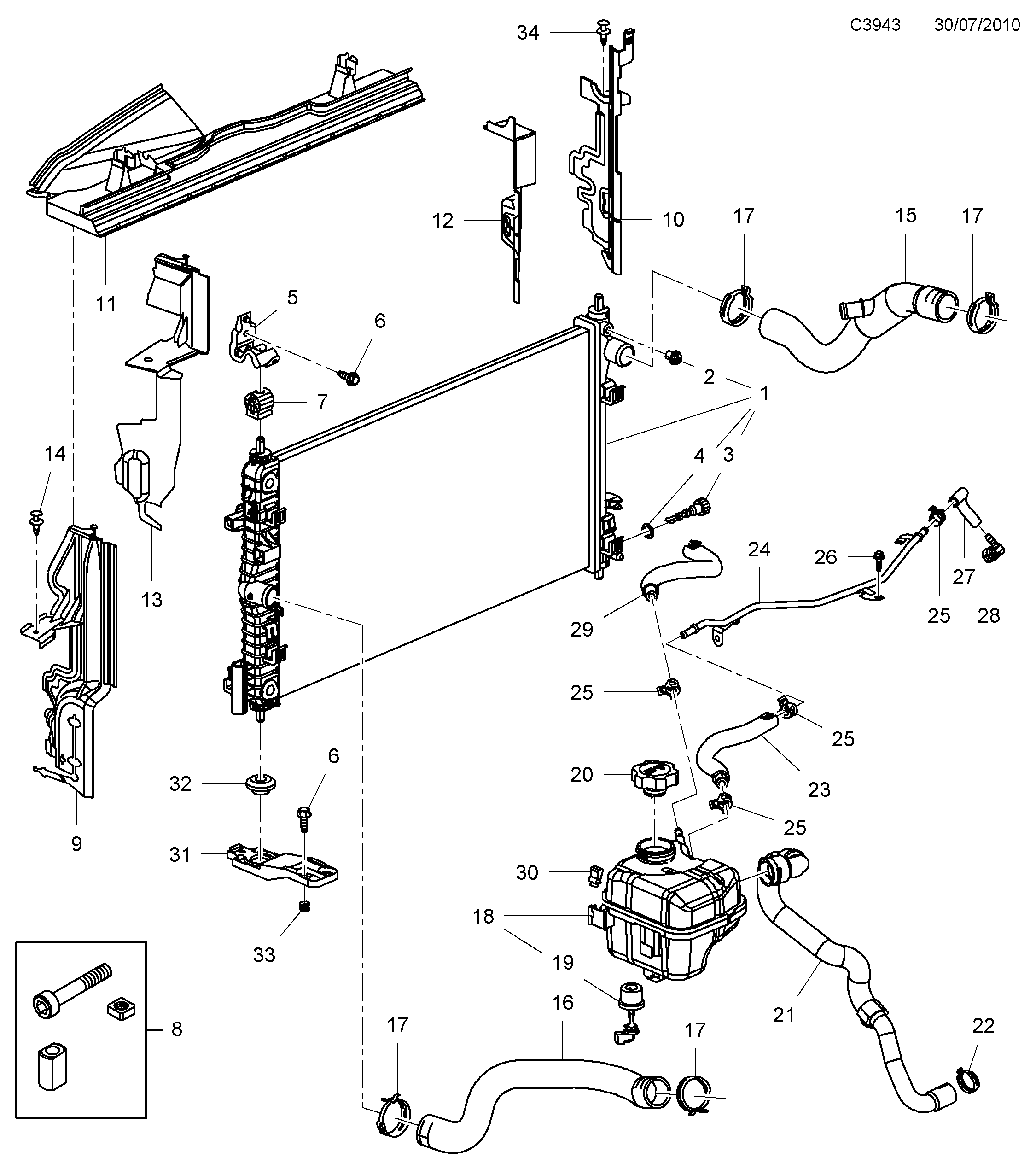

Saab 9-5 (650) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	13241722
2	Drain screw	93188651
3	Drain cock	13241754
4	Washer	13280295
5	Support bracket	13239137
6	Screw	11588723
7	Buffer	13306606
8	Bolt	13282869
9	Air guide	13317910
10	Baffle	13266369
11	Air guide	13317908
11	Air guide	13317909
12	Air guide	13306745
13	Air guide	13306900
14	Expanding rivet	11589290
15	Hose	13315206
16	Hose	13220127
17	Hose clamp	13162312
18	Expansion tank	13315695
19	Control unit	13271444
20	Cap	13502353
21	Hose	13239140
22	Hose clamp	13283239
23	Hose	13220153
24	Pipe	55564183
25	Hose clamp	90530642
26	Screw	11588712
27	Hose	55571704
28	Connector	55571705
29	Hose	13310060
29	Hose	13241977
30	Clamp	13284504
31	Bracket	13337769
32	Buffer	13304695
33	Thread insert	11087031
