Saab 9-5 (650) 2010-2011 Radiator Expansion tank

Group 2 Engine, section 5010

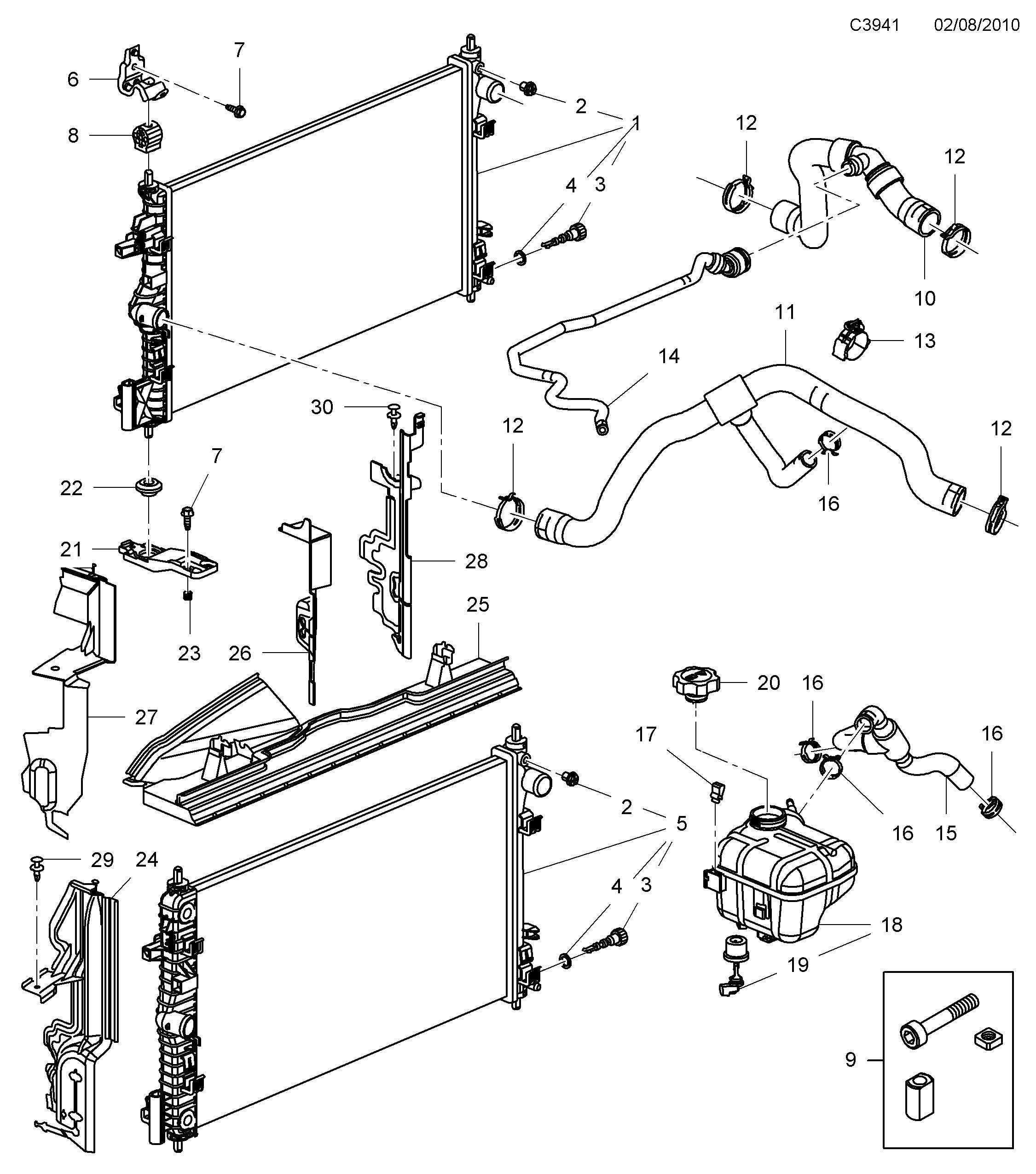

Saab 9-5 (650) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	13241728
2	Drain screw	93188651
3	Drain cock	13241754
4	Washer	13280295
5	Radiator	13241729
6	Support bracket	13239137
7	Screw	11588723
8	Buffer	13306606
9	Bolt	13282869
10	Hose	13220131
11	Hose	13220126
12	Hose clamp	13162312
13	Clip	9202590
14	Hose	13220152
14	Hose	20972727
15	Hose	13220146
16	Hose clamp	13283239
16	Hose clamp	90572594
17	Clamp	13284504
18	Expansion tank	13220123
19	Control unit	13271444
20	Cap	13502353
21	Bracket	13337769
22	Buffer	13304695
23	Thread insert	11087031
24	Air guide	13317910
25	Air guide	13317908
25	Air guide	13317909
26	Air guide	13306745
27	Air guide	13306900
28	Baffle	13266369
29	Expanding rivet	11589290
