Saab 9-5 (650) 2011-2011 Radiator Expansion tank

Group 2 Engine, section 4895

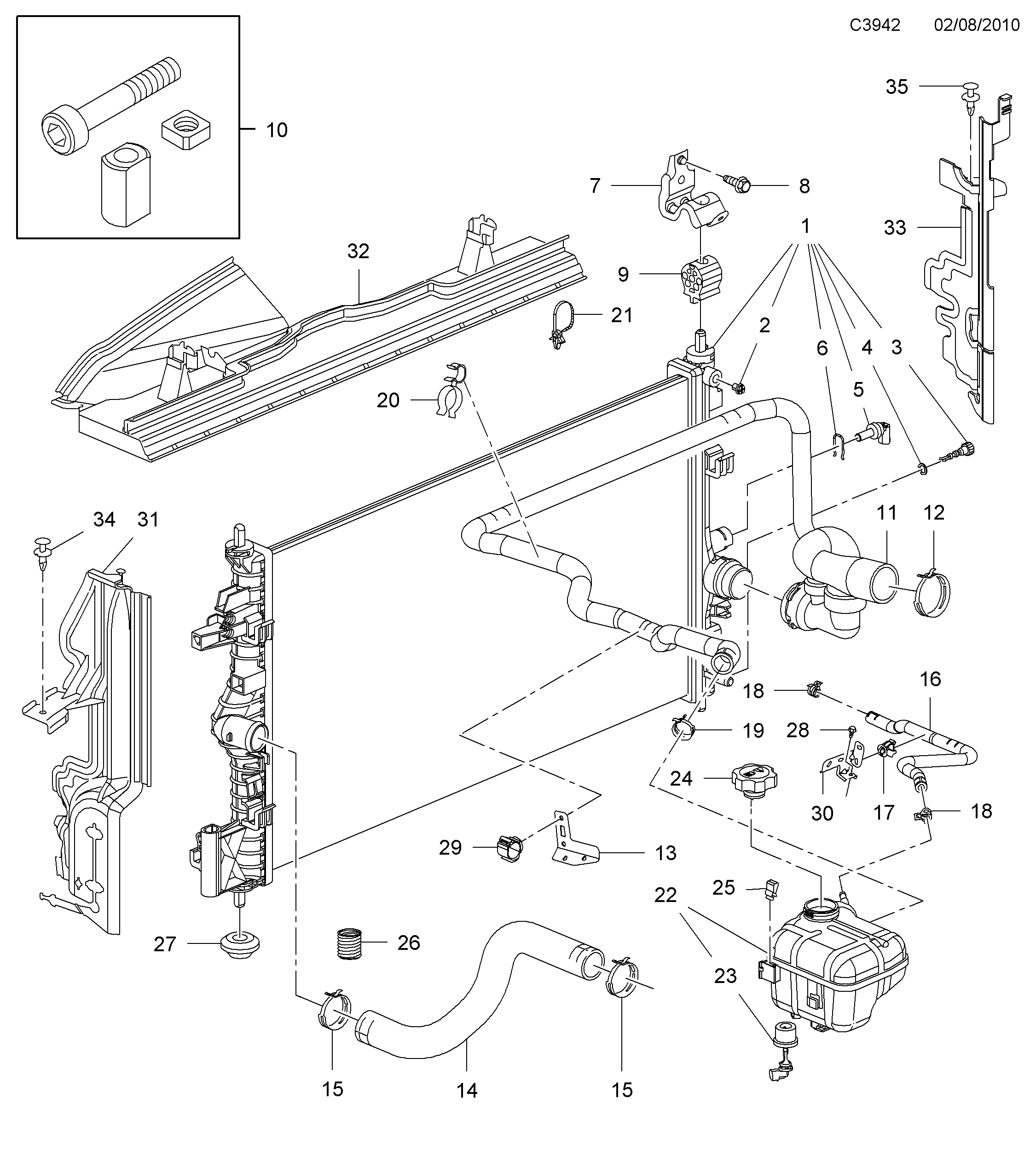

Saab 9-5 (650) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	13241726
2	Drain screw	93188651
3	Drain cock	13241754
4	Washer	13280295
7	Support bracket	13239137
8	Screw	11588723
9	Buffer	55702167
10	Bolt	13282869
11	Hose	13220125
12	Hose clamp	13283240
13	Bracket	9152982
14	Hose	13220130
15	Hose clamp	13162312
16	Hose	13239144
17	Clip	9128405
18	Hose clamp	90530642
19	Hose clamp	13283239
20	Clamp	90305532
21	Tie strap	13137556
22	Expansion tank	13220123
23	Control unit	13271444
24	Cap	13502353
25	Clamp	13284504
26	Thread insert	11087031
27	Buffer	13304695
28	Hexagon screw	11588711
29	Clip	13137556 (replaces 13136378)
30	Bracket	13292692
31	Air guide	13317910
32	Air guide	13317908
32	Air guide	13317909
33	Baffle	13266369
34	Expanding rivet	11589290
