Saab 9-5 (650) 2010-2011 Sensor Sensor

Group 2 Engine, section 4850

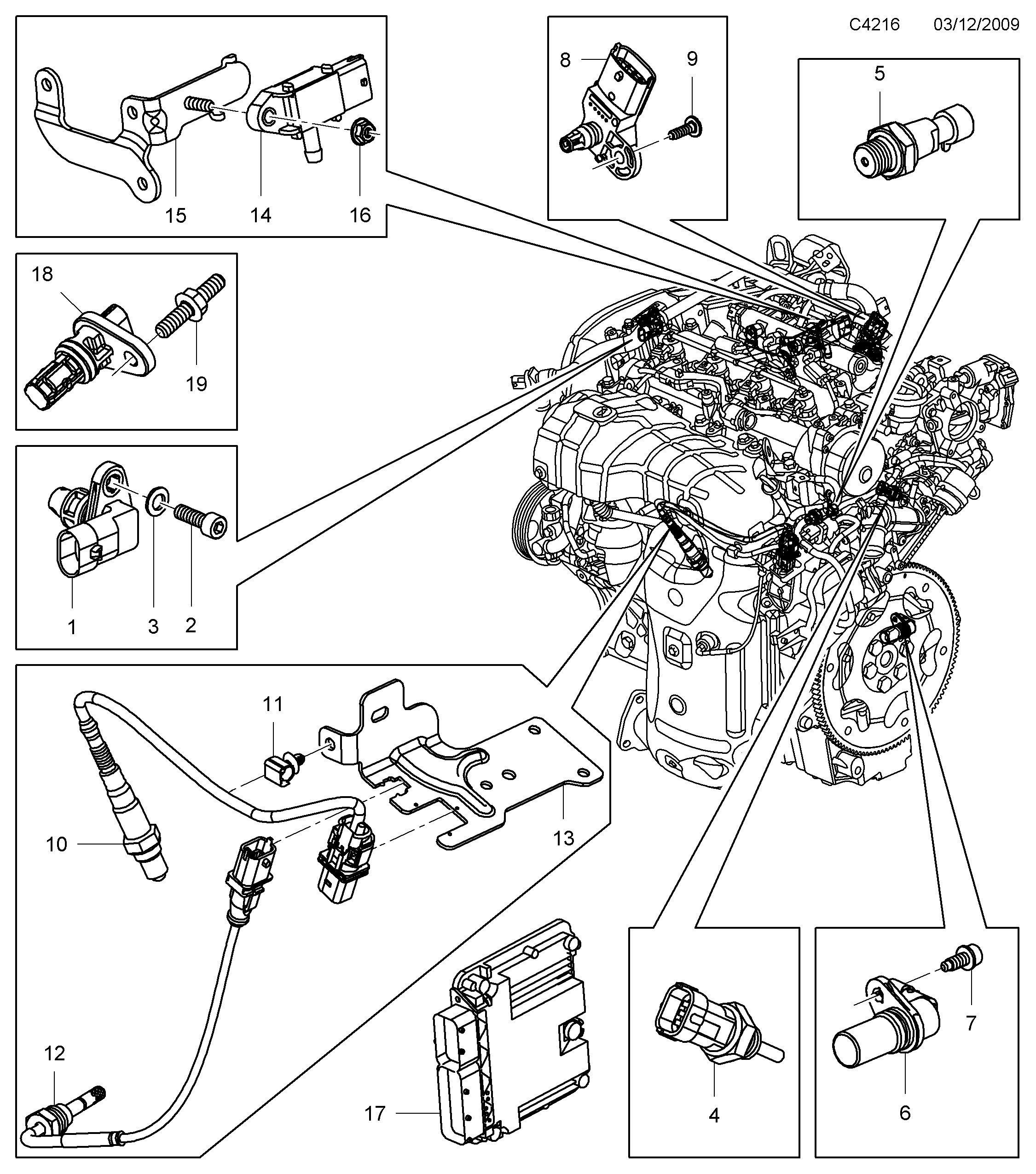

Saab 9-5 (650) Sensor Sensor diagram

Pos	Article	Part No.
1	Sensor	55216243
2	Screw	93178832 (replaces 93178711)
3	Washer	93178882
4	Temperature sensor	55566146
5	Oil pressure sensor	55202374
6	Crankshaft position sensor	93179391
7	Screw	93178468
8	Charge Air Absolute Pressure Sensor	55568175
9	Hexagon screw	12855377
10	Oxygen sensor	55572548
11	Clip	24422008
12	Sensor	55566185
13	Bracket	55566205
14	Charge Air Absolute Pressure Sensor	55566186
15	Bracket	55566127
16	Nut	11514516
18	Sensor	55568130
19	Bolt	11518950
