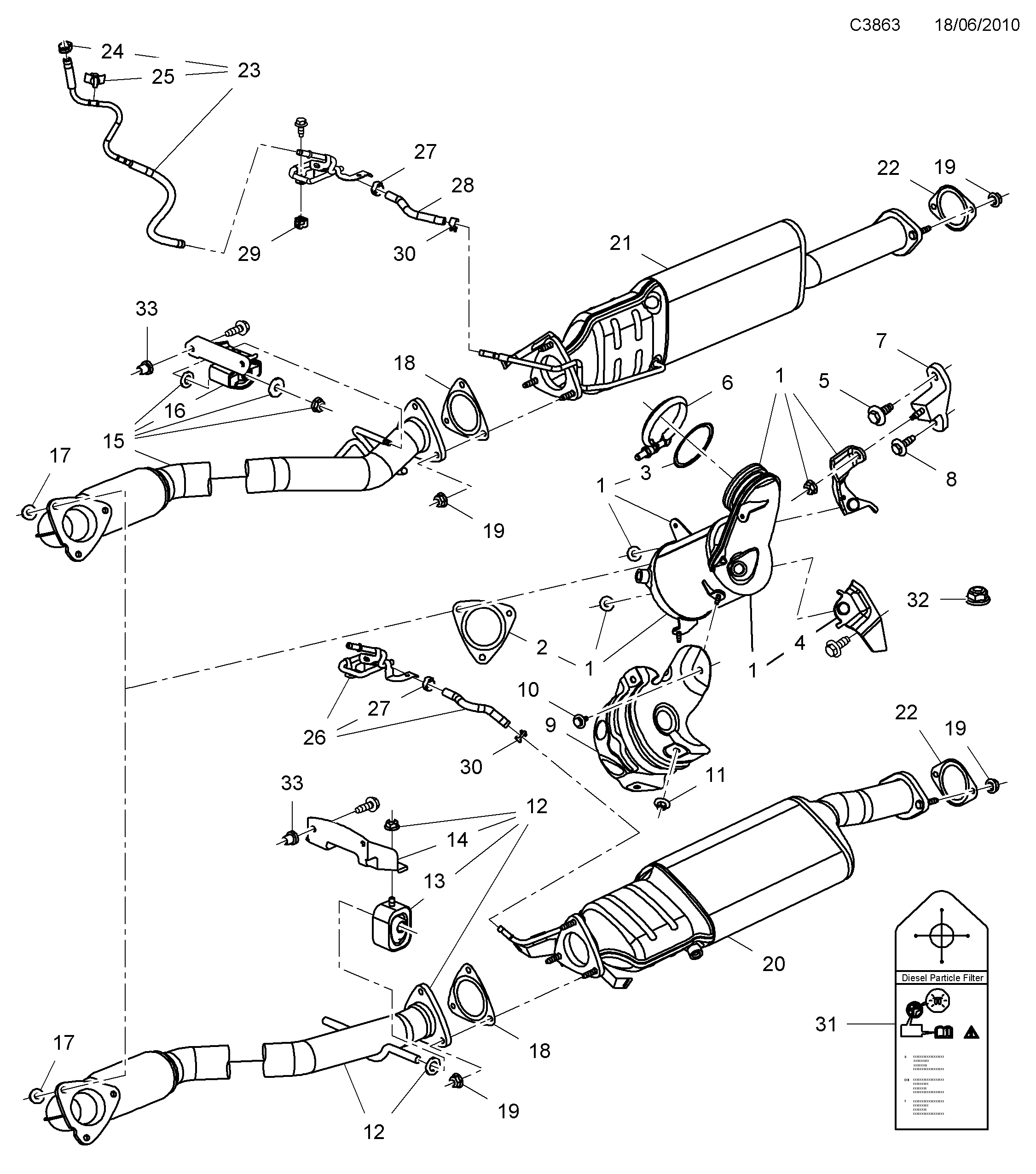

Group 2 Engine, section 4640
| Pos | Article | Part No. |
|---|---|---|
| 1 | Three way catalytic converter | 55562937 |
| 2 | Gasket | 55187592 |
| 3 | Gasket | 55207801 |
| 4 | Bracket | 55562940 |
| 5 | Screw | 11589163 |
| 5 | Screw | 11589164 |
| 6 | Pipe clip | 55209165 |
| 7 | Bracket | 55571181 |
| 8 | Screw | 11519388 |
| 9 | Heat shield | 55562942 |
| 10 | Screw | 11519374 |
| 11 | Nut | 11609411 |
| 12 | Exhaust pipe | 12848700 |
| 13 | Insulation | 13229781 |
| 14 | Bracket | 13229892 |
| 15 | Exhaust pipe | 12848701 |
| 16 | Insulation | 13229793 |
| 17 | Hexagon nut | 11102751 |
| 18 | Gasket | 13293994 |
| 19 | Nut | 11516076 |
| 20 | Three way catalytic converter | 55564240 |
| 21 | Three way catalytic converter | 55562888 |
| 22 | Gasket | 13229873 |
| 23 | Pipe | 55567805 |
| 24 | Hose clamp | 55353931 |
| 25 | Tie strap | 13173038 |
| 26 | Pipe | 55567812 |
| 28 | Hose | 55567821 |
| 29 | Nut | 11570215 |
| 30 | Hose clamp | 55564198 |
| 31 | Label | 13265825 |
| 32 | Nut | 11516077 |
| 33 | Rivet nut | 90575310 |
