Saab 9-5 (650) 2010-2011 Exhaust system Front

Group 2 Engine, section 4600

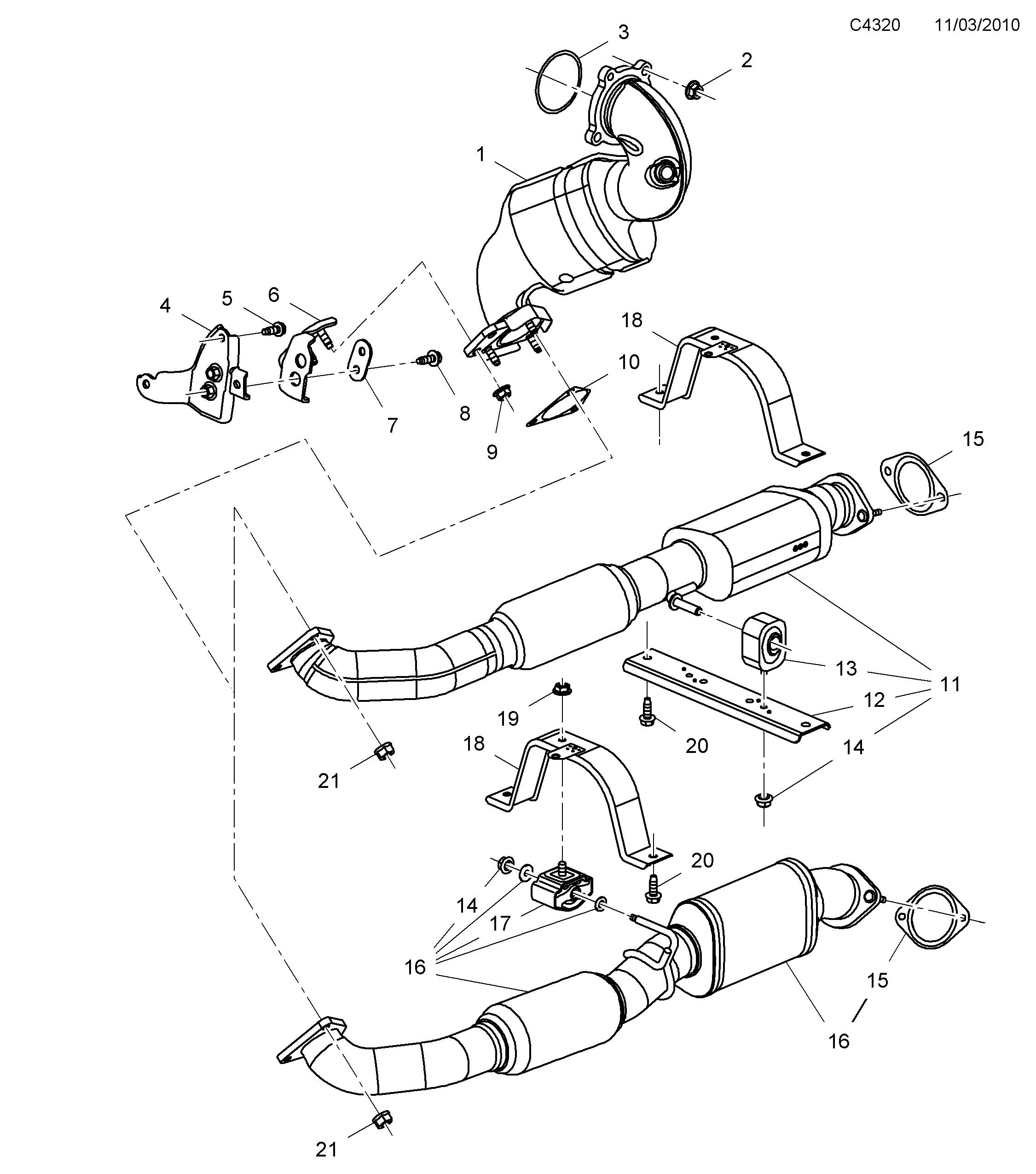

Saab 9-5 (650) Exhaust system Front diagram
PosArticlePart No.
1Three way catalytic converter55567206
1Three way catalytic converter12638306
1Three way catalytic converter12626553
2Nut15032594
3Gasket12609878
4Brace55563235
5Hexagon screw11609677
6Bracket55563234
7Washer55566407
8Hexagon screw11588738
9Nut11516077
10Gasket13255810
11Pipe13220405
12Bracket13229791
13Insulation13286674
14Nut11516076
15Gasket13229873
16Exhaust pipe13325076
17Insulation13229781
18Bracket13229792
20Screw11588723
21Hexagon nut90570845
