Saab 9-5 (650) 2010-2011 Inlet pipe Throttle body

Group 2 Engine, section 4000

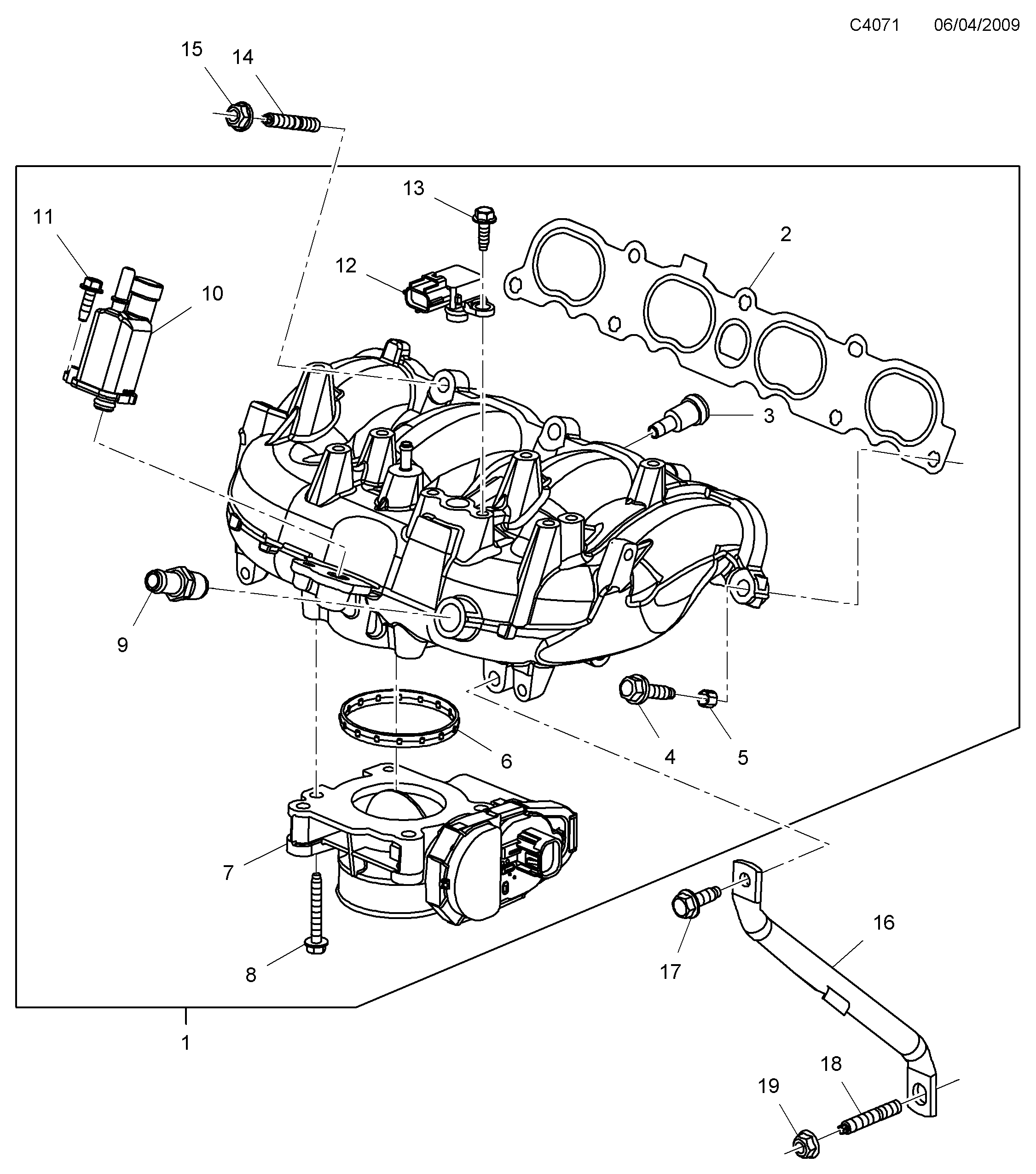

Saab 9-5 (650) Inlet pipe Throttle body diagram
PosArticlePart No.
1Inlet manifold12616667
1Inlet manifold12631188
2Gasket12589366
3Bleeder valve12589440
4Screw11562199
5Sleeve11588327
6Seal12589416
7Throttle body12616669
8Screw11588717
9Fitting24504220
10Valve12592015
11Screw11589241
14Stud11519235
15Nut11516076
16Brace12606941
17Screw11588723
18Stud11589054
