Saab 9-5 (650) 2010-2011 Fuel rail Injection pump

Group 2 Engine, section 3450

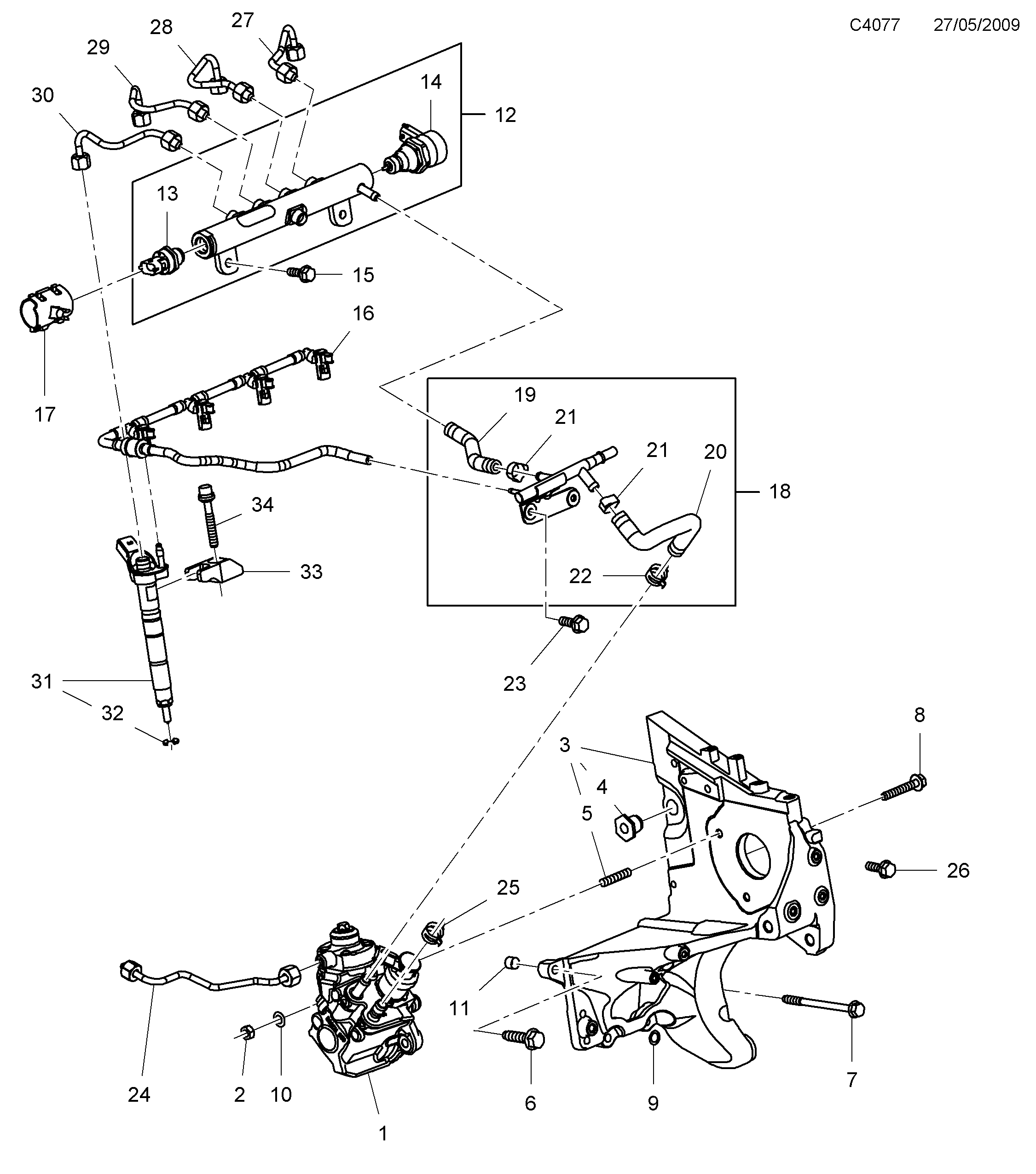

Saab 9-5 (650) Fuel rail Injection pump diagram

Pos	Article	Part No.
1	Injection pump	55565210
2	Nut	93178880
3	Bracket	55564432
4	Spacer piece	55207720
5	Stud	12855241
6	Screw	93178847
7	Hexagon screw	55207946
8	Hexagon screw	12855322
9	Washer	93179080
10	Washer	93178879
11	Screw plug	93178469
12	Distribution pipe	55564168
13	Regulator	55564170
14	Sensor	55564171
15	Screw	93178829
16	Hose	55564172
17	Hose clamp	55567011
18	Reservoir	55567093
19	Hose	55567094
20	Hose	55567095
21	Hose clamp	93177692
22	Hose clamp	12855374
23	Screw	93178832
24	Fuel pipe	55564340
25	Clamp	90572588
27	Fuel pipe	55564336
28	Fuel pipe	55564337
29	Fuel pipe	55564338
30	Fuel pipe	55564339
31	Injector	55565209
32	O-ring	55565375
33	Bracket	55564625
34	Screw	55564653
