Saab 9-5 (650) 2010-2011 Fuel rail Injection pump

Group 2 Engine, section 3400

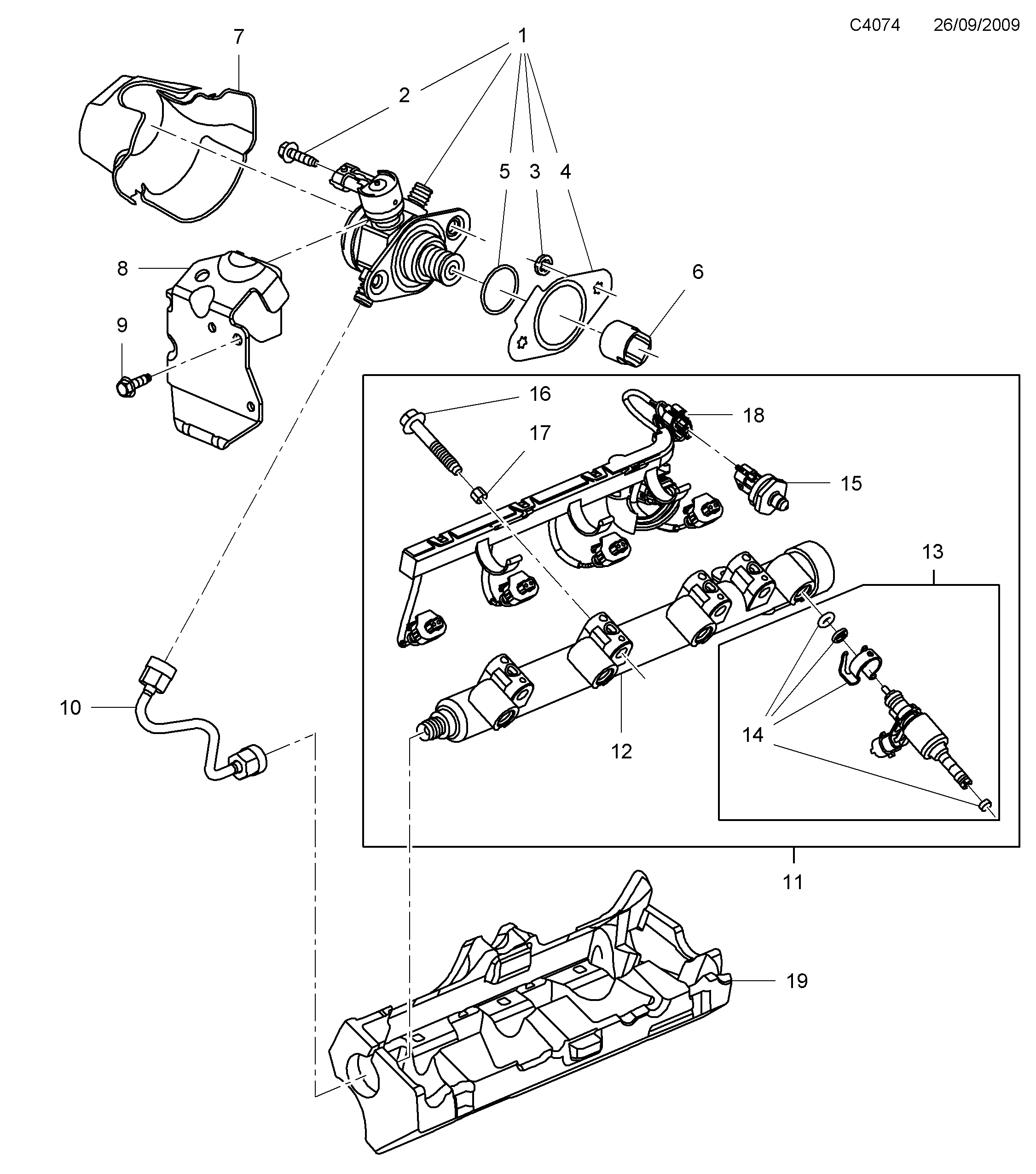

Saab 9-5 (650) Fuel rail Injection pump diagram

Pos	Article	Part No.
1	Fuel pump	12629135
2	Screw	11562426
3	Retainer	12610684
4	Gasket	12595951
5	O-ring	12600313
6	Tappet	12590679
7	Insulation	12628069
8	Cover	12633550
9	Screw	11588712
10	Pipe	12615401
11	Distribution pipe	12621643
12	Distribution pipe	12615400
13	Injection valve	12636111
14	Part kit	12633374
16	Hexagon screw	11588728
17	Sleeve	11588327
18	Cable harness	12589446
19	Protecting plate	12610638
