Saab 9-5 (650) 2010-2011 Cylinder block Crankshaft and piston

Group 2 Engine, section 310

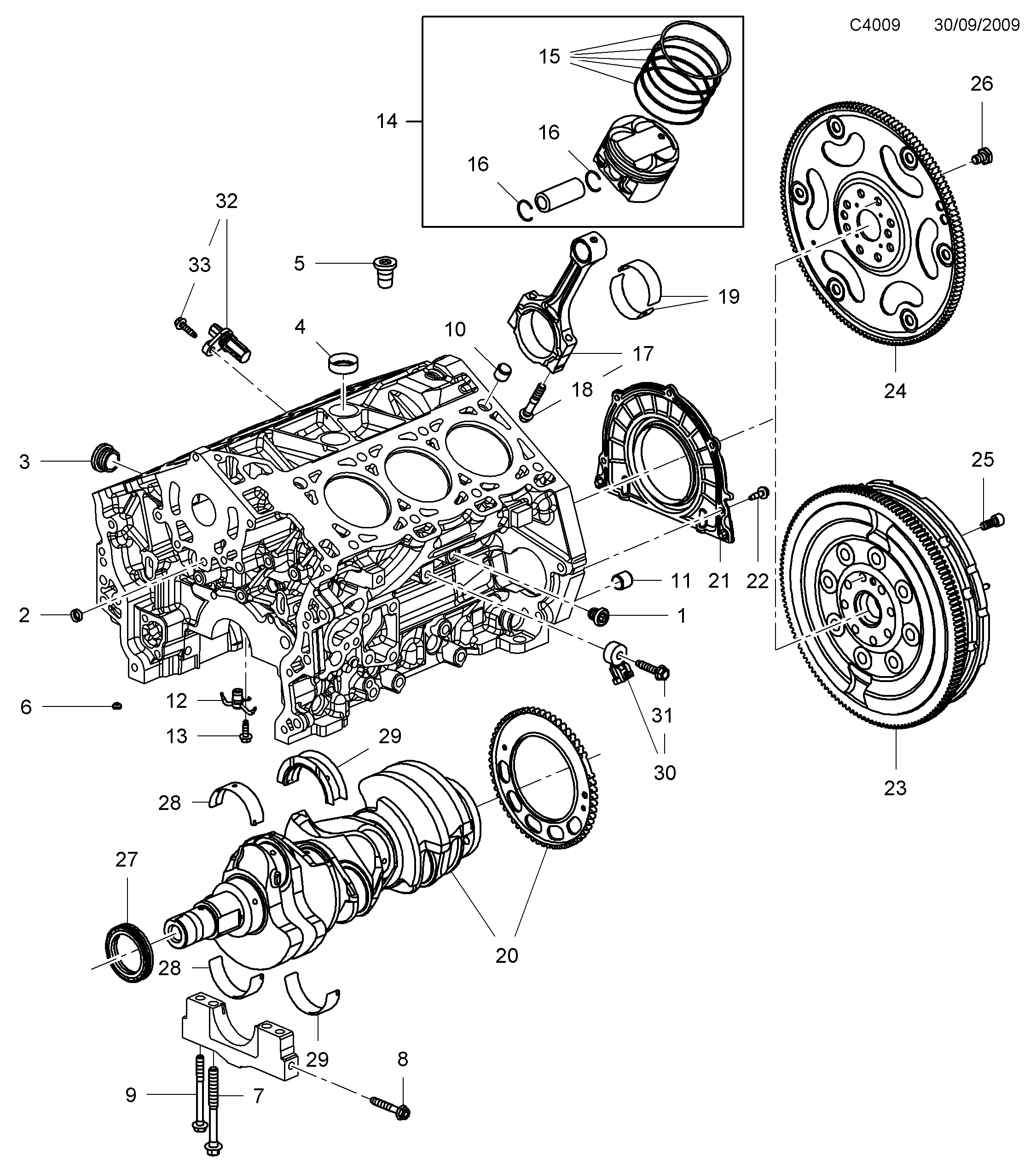

Saab 9-5 (650) Cylinder block Crankshaft and piston diagram

Pos	Article	Part No.
1	Lock plug	11561583
2	Plug	11562127
3	Lock plug	11609289
4	Screw plug	11569584
5	Cap	11561751
6	Lock plug	12557520
7	Screw	12560272
8	Hexagon screw	11589000
9	Screw	11518861
10	Centering sleeve	12558081
11	Sleeve	12597210
12	Nozzle	12610143
13	Screw	11588712
14	Piston	92068444
14	Piston	92068445
15	Piston ring kit	92068446
15	Piston ring kit	92068447
16	Snap ring	12566186
17	Connecting rod	12608427
18	Connecting rod bolt	11519680
19	Big end bearing kit	93186280
20	Crankshaft	12621350
21	Gasket	12592243
23	Flywheel	55562133
24	Flywheel	12606654
25	Torx screw	11588884
26	Screw	93172267
27	Sealing ring	12608750
28	Crankshaft bearing, kit	12610603
29	Guide bearing, kit	12610604
