Saab 9-5 (650) 2010-2011 Cylinder block Crankshaft and piston

Group 2 Engine, section 300

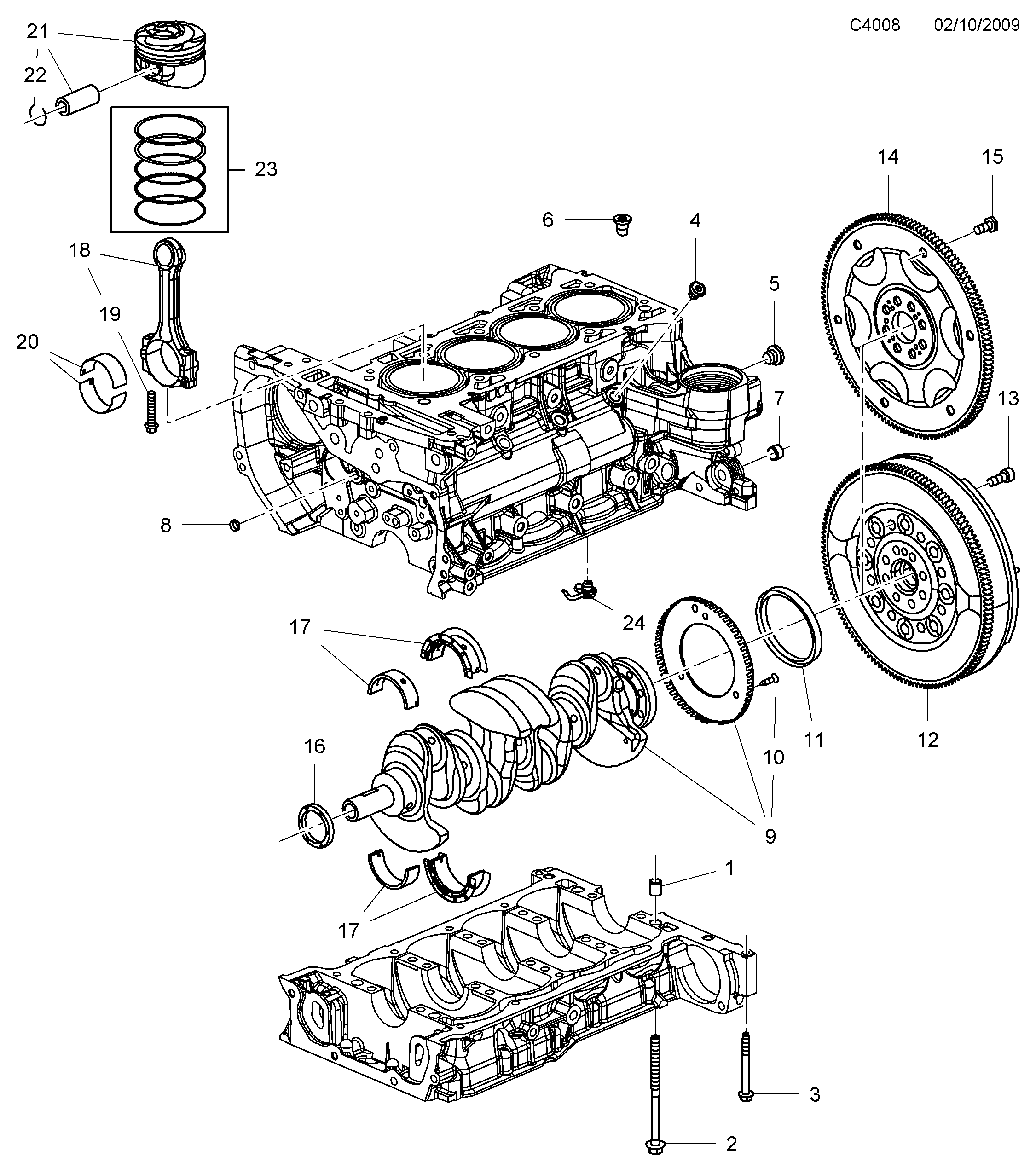

Saab 9-5 (650) Cylinder block Crankshaft and piston diagram

Pos	Article	Part No.
1	Guide sleeve	90537102
2	Screw	11571239
3	Hexagon screw	11588733
4	Screw plug	11588547
5	Lock plug	11569958
6	Lock plug	11561583
7	Sleeve	90351708
8	Sealing cover	21000867
9	Crankshaft	12619107
10	Screw	90280051
11	Scalloped seal ring	12591866
12	Flywheel	55562132
13	Screw	11562103
14	Flywheel	55562237
15	Screw	11570626
16	Seal	90571925
17	Crankshaft bearing, kit	12591092
18	Connecting rod	12638832
19	Screw	90537293
20	Big end bearing kit	12591093
21	Piston	89018108
22	Lock ring	12755171
23	Piston ring kit	89018107
24	Nozzle	12596230
