Saab 9-5 (650) 2011-2011 Cylinder block Crankshaft and piston

Group 2 Engine, section 290

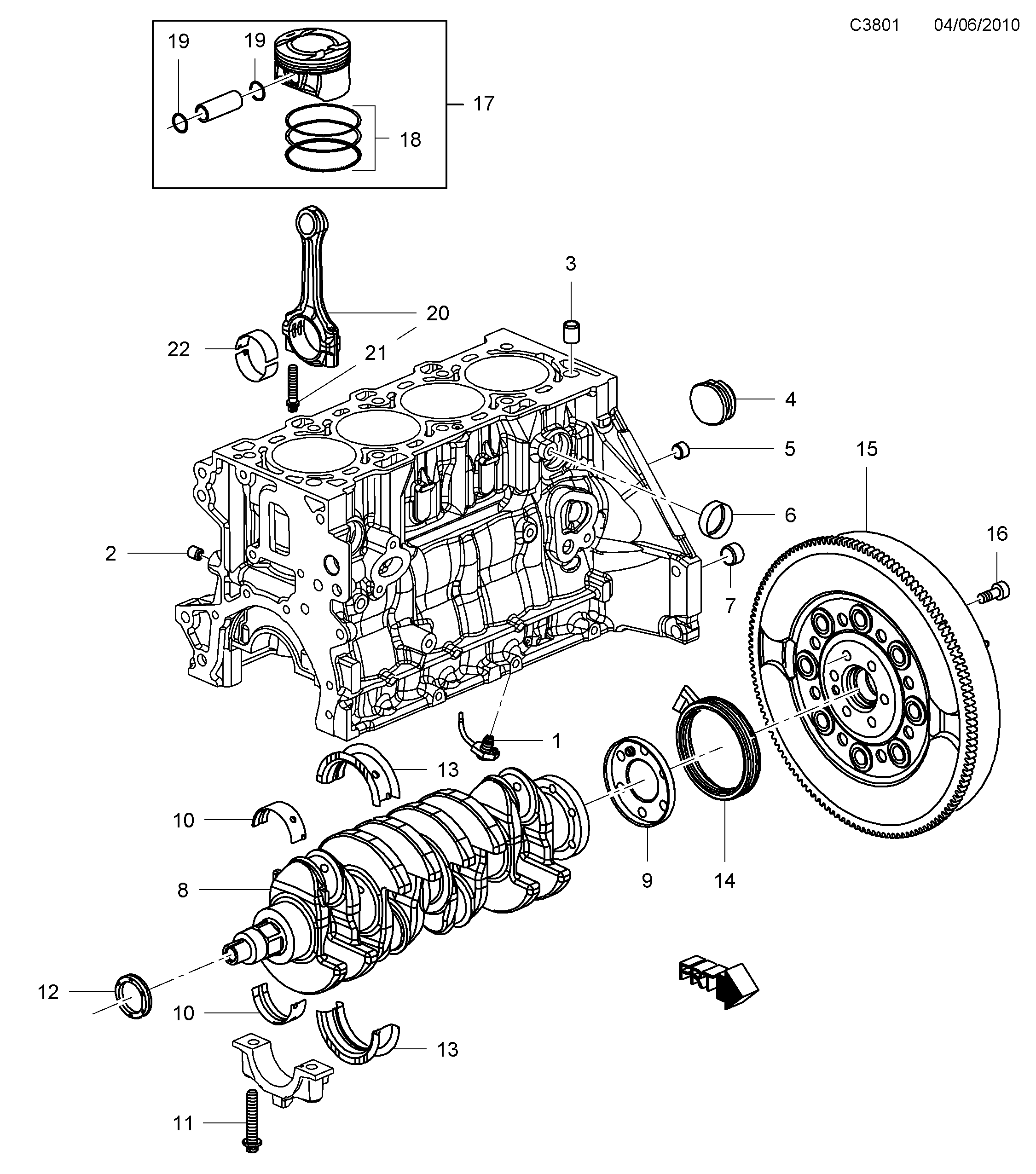

Saab 9-5 (650) Cylinder block Crankshaft and piston diagram

Pos	Article	Part No.
1	Nozzle	55564441
2	Check valve	93180107
3	Sleeve	90351710
4	Screw plug	55566841
5	Screw plug	11056321
6	Lock plug	11070803
6	Lock plug	11056093
7	Sleeve	90351708
8	Crankshaft	55569766
9	Disc	55574780 (replaces 55555803)
10	Crankshaft bearing, kit	93184596
10	Crankshaft bearing, kit	93184597
10	Crankshaft bearing, kit	93184598
11	Torx screw	24418414
12	Seal	24465791
13	Guide bearing, kit	93184599
13	Guide bearing, kit	93184600
13	Guide bearing, kit	93184601
14	Scalloped seal ring	55555805
15	Flywheel	55564555
16	Torx screw	93186900
17	Piston	55561413
17	Piston	55571126
18	Piston ring kit	93186225
19	Lock ring	12992353
17	Piston	55561415
18	Piston ring kit	93188426
20	Connecting rod set	55568467
21	Connecting rod bolt	12992338
22	Big end bearing kit	55568638
22	Big end bearing kit	55568639
22	Big end bearing kit	55568640
