Saab 9-5 (650) 2010-2011 Cylinder head - Valve cover

Group 2 Engine, section 225

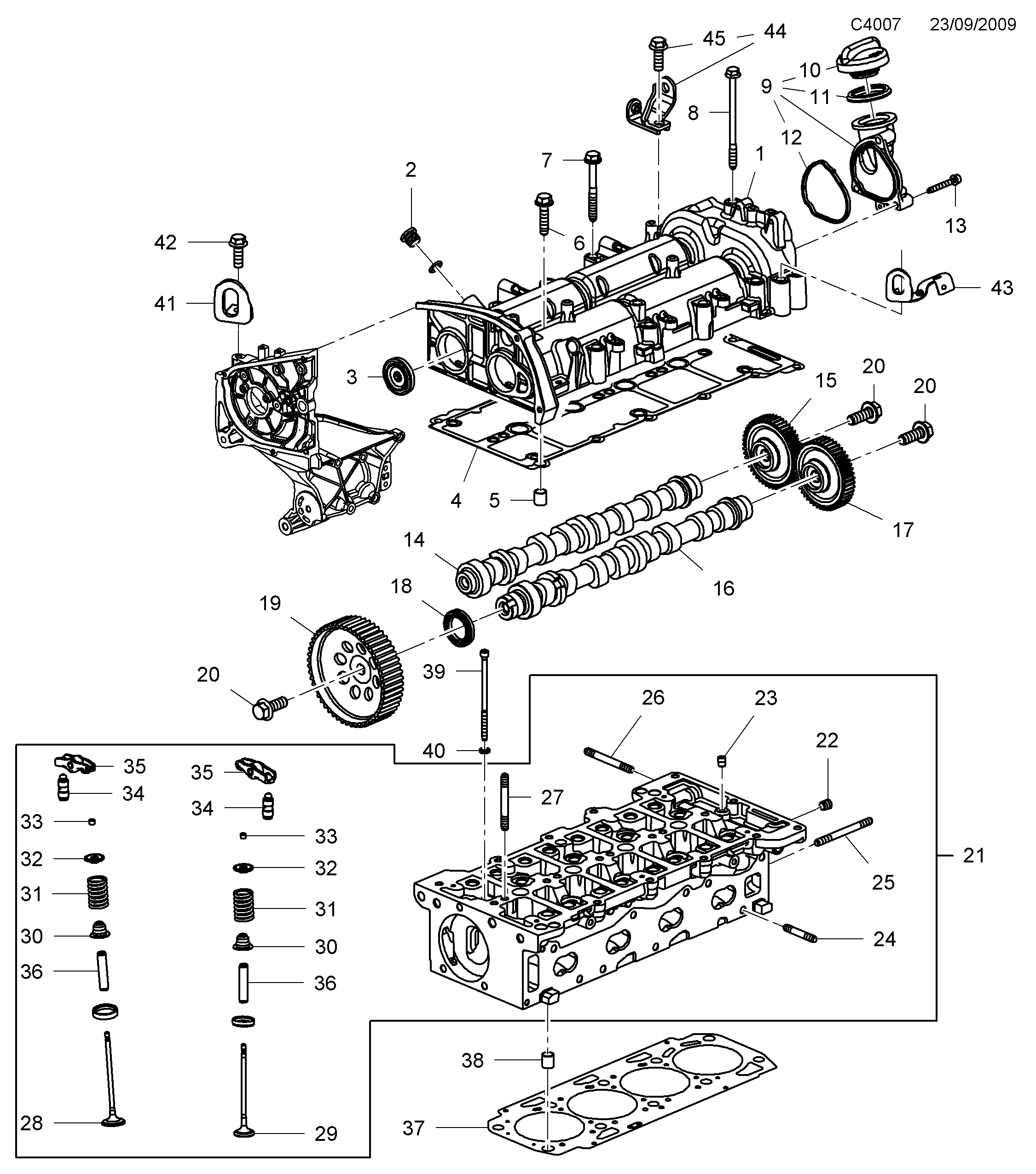

Saab 9-5 (650) Cylinder head - Valve cover diagram

Pos	Article	Part No.
1	Housing, camshaft	55565668
2	Sealing washer	93178485
3	Lock plug	93178484
4	Gasket	55562830
5	Lock plug	93178480
6	Screw	93178486
7	Screw	93179142
8	Screw	93178488
9	Housing	55565945
10	Oil filler cap	55565948
11	O-ring	55565950
12	Seal	55565947
13	Special screw	55566001
14	Camshaft	55565852
15	Chain gear	55573057
16	Camshaft	55565850
17	Chain gear	55573054
18	Scalloped seal ring	12855372
19	Chain gear	93178380
20	Screw	93177298
21	Cylinder head	55564331
21	Cylinder head	55565812
22	Screw plug	93178476
23	Screw plug	93180038
24	Stud	55566152
25	Stud	55562826
26	Stud	93179065
27	Stud	93179050
28	Inlet valve	55565261
29	Exhaust valve	55574148
30	Seal	55183812
31	Valve spring	55204136
32	Spring disc	55564476
33	Valve cone	12855339
34	Tappet	93177316
35	Rocker arm	55186463
36	Valve guide	55204200
36	Valve guide	55210015
36	Valve guide	55210016
36	Valve guide	55210017
37	Cylinder head gasket	55574904
37	Cylinder head gasket	55574905
37	Cylinder head gasket	55574906
38	Sleeve	93178416
39	Screw	55571777
40	Washer	93178478
41	Shackle	55567316
42	Hexagon screw	12855484
43	Shackle	55567031
44	Shackle	55568573
