Saab 9-5 (650) 2010-2011 Fuel tank

Group 2 Engine, section 2150

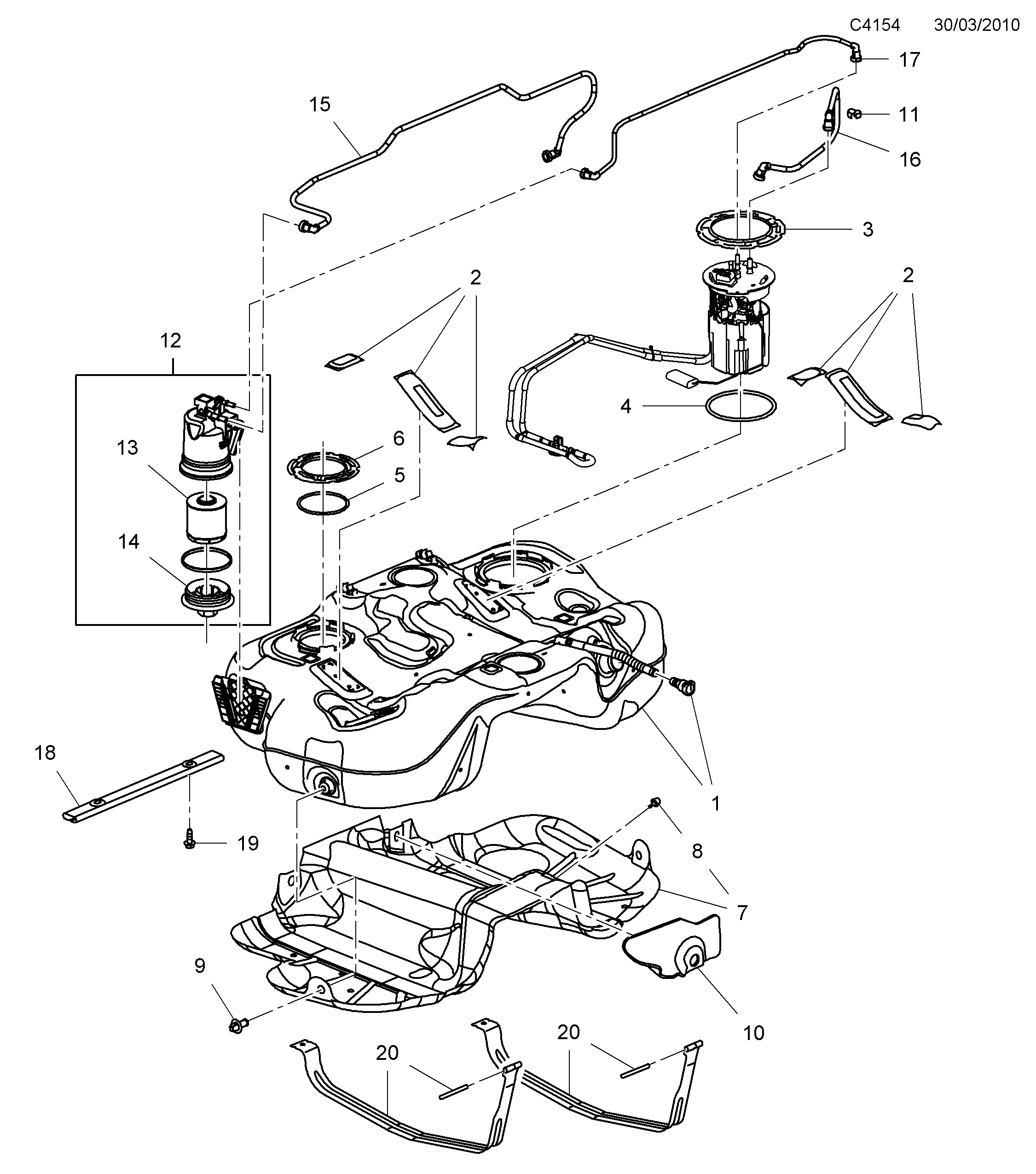

Saab 9-5 (650) Fuel tank diagram

Pos	Article	Part No.
1	Fuel reservoir	13251871
2	Insulation	13263372
3	Cam	10325852
4	O-ring	22682111
5	Sealing ring	15776433
6	Retainer	15776431
7	Heat shield	13273477
8	Spacer piece	13273528
9	Plastic rivet	22718369
10	Insulator	13182612
11	Clamp	24413499
12	Filter	13244294
13	Fuel filter	13263262
14	Retainer	13263263
15	Fuel pipe	13251874
16	Return line	13251877
17	Fuel pipe	13251873
18	Protection	13238468
19	Hexagon screw	11588738
20	Tie strap	13238465
