Saab 9-5 (650) 2010-2011 Fuel tank

Group 2 Engine, section 2110

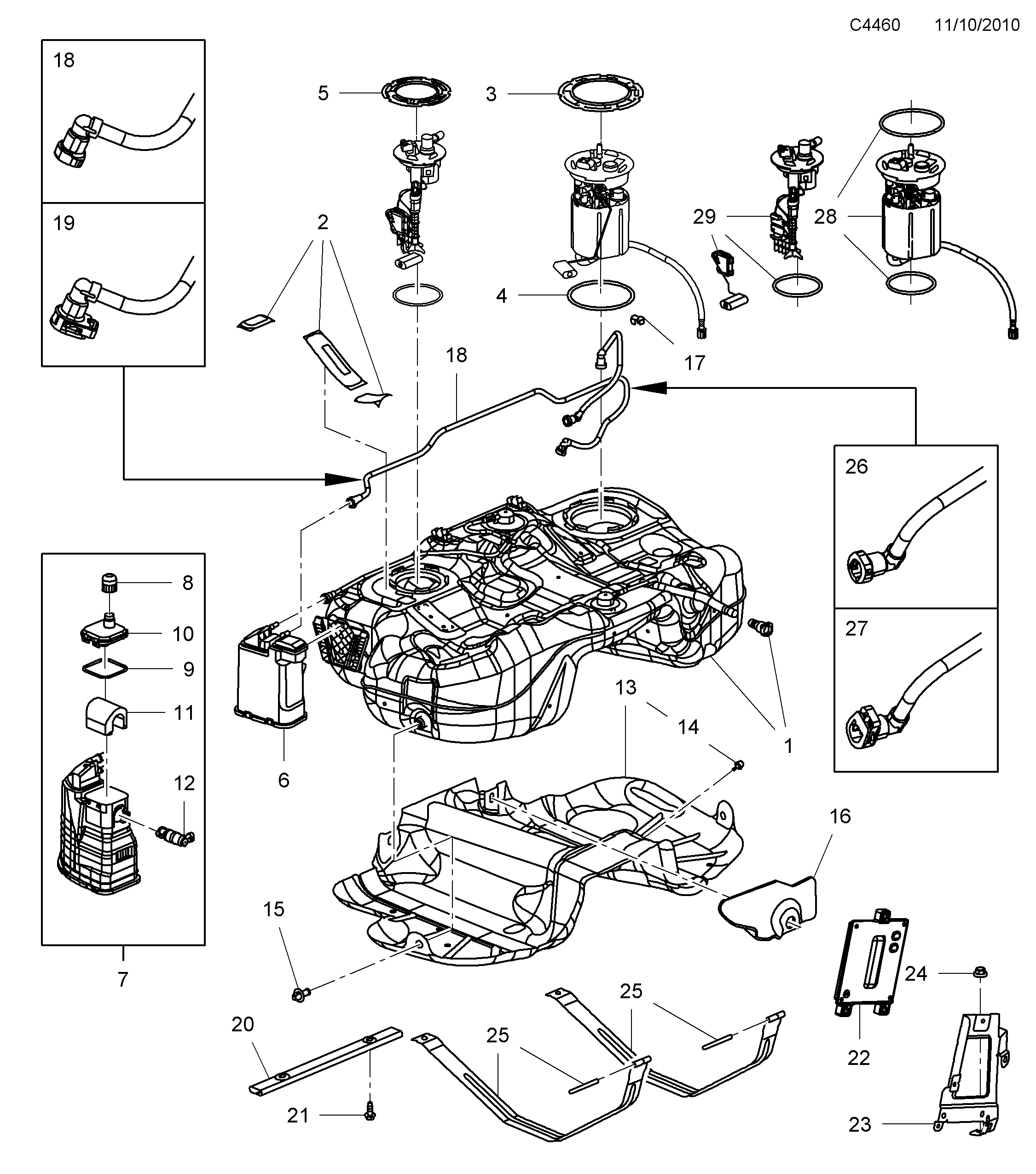

Saab 9-5 (650) Fuel tank diagram

Pos	Article	Part No.
1	Fuel reservoir	13250374
1	Fuel reservoir	13245051
2	Insulation	13263372
3	Cam	10325852
4	O-ring	22682111
5	Retainer	15776431
6	Charcoal canister	13230479
7	Reservoir	13230482
8	Cap blanking	13267929
9	Seal	25827633
10	Cover	13267930
11	Filter insert	22682316
12	Solenoid valve	25932573
13	Heat shield	13273477
14	Spacer piece	13273528
15	Plastic rivet	22718369
16	Insulator	13182612
17	Clamp	24413499
18	Fuel pipe	13250371
19	Fuel pipe	13264367
20	Protection	13238468
21	Hexagon screw	11588738
22	Control unit	20850927
22	Control unit	20791901
23	Bracket	12782947
24	Nut	11609411
25	Tie strap	13238465
26	Pipe	13250369
27	Pipe	13250923
28	Pump kit	13578381
29	Fuel gauge	13578384
