Saab 9-5 (650) 2010-2011 Fuel tank

Group 2 Engine, section 2100

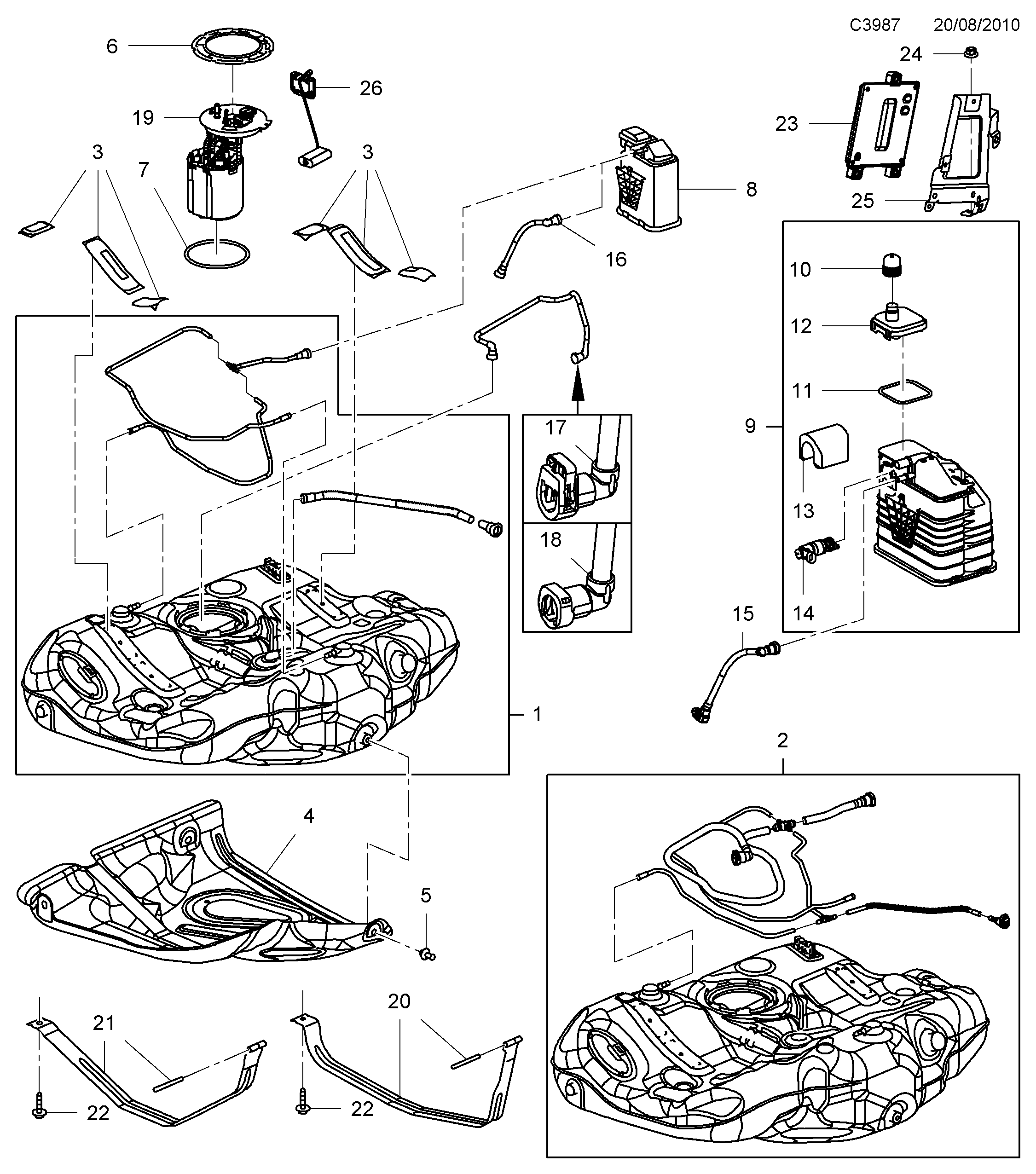

Saab 9-5 (650) Fuel tank diagram

Pos	Article	Part No.
1	Fuel reservoir	13247989
2	Fuel reservoir	13245054
3	Insulation	13263372
4	Heat shield	13276028
5	Plastic rivet	22718369
6	Cam	10325852
7	O-ring	22682111
8	Charcoal canister	13230479
9	Reservoir	13238457
10	Cap blanking	13267929
11	Seal	25827633
12	Cover	13267930
13	Filter insert	22682316
14	Solenoid valve	25932573
15	Pipe	13247982
16	Pipe	13273531
17	Fuel pipe	13273529
18	Fuel pipe	13247978
19	Fuel pump	12783092
20	Tie strap	13238487
21	Tie strap	13238465
22	Screw	11519390
23	Control unit	20850927
23	Control unit	20791901
24	Nut	11609411
25	Bracket	12782947
26	Fuel gauge	12783081
