Saab 9-5 (650) 2010-2011 Cylinder head - Valve cover

Group 2 Engine, section 210

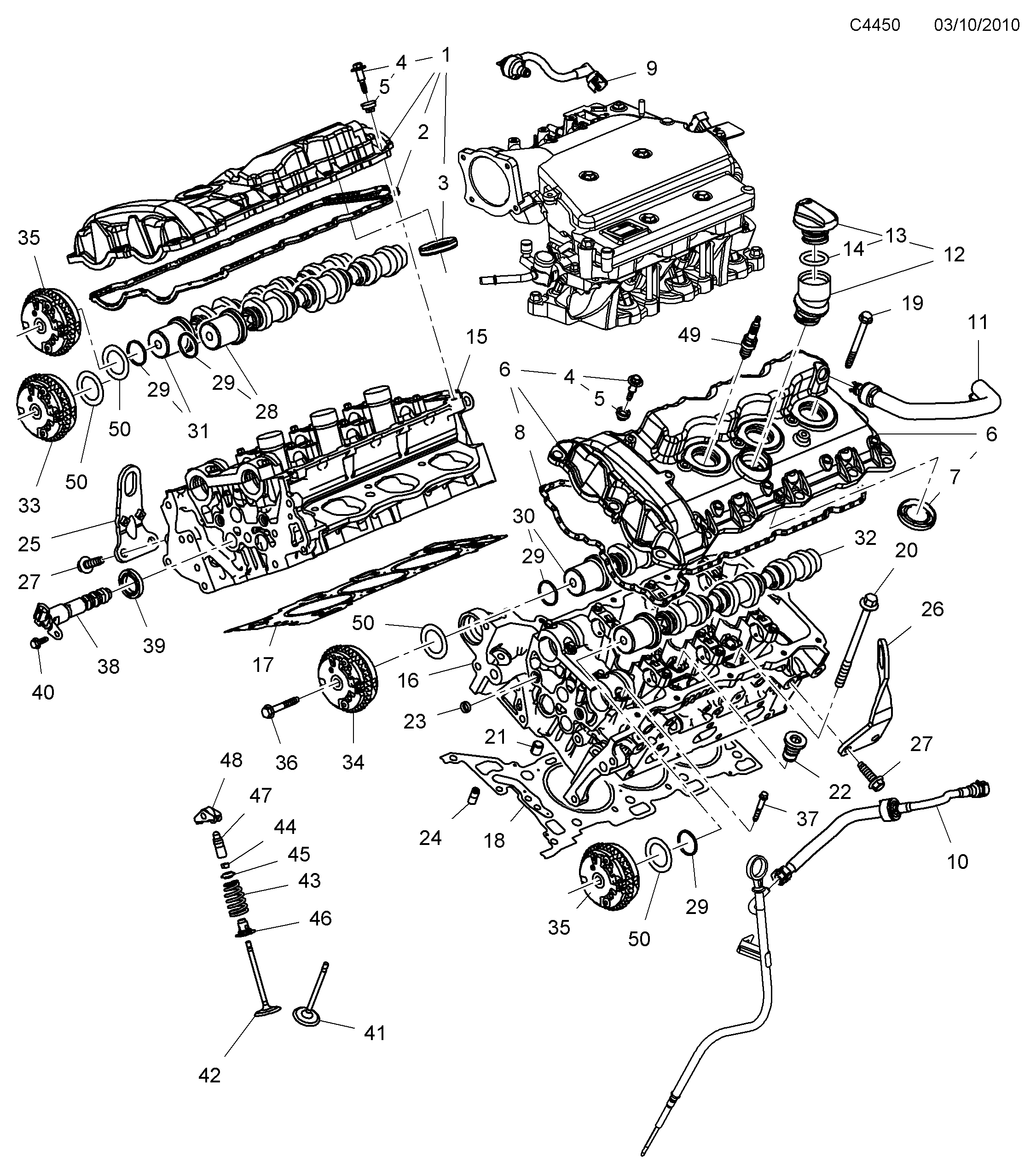

Saab 9-5 (650) Cylinder head - Valve cover diagram

Pos	Article	Part No.
1	Valve cover	12612437
2	Seal	12595107
3	Seal	12607600
4	Screw	11570020
5	Insulation	12595122
6	Cover	12623682
8	Seal	12595106
9	Pipe	12588555
10	Pipe	55561789
11	Hose	12617551
12	Filler tube	12629411
13	Oil filler cap	12597637
14	Gasket	12593348
15	Cylinder head	12638506
15	Cylinder head	12635528
16	Cylinder head	12615927
16	Cylinder head	12635527
17	Cylinder head gasket	12634480
18	Cylinder head gasket	12634481
19	Screw	11588734
20	Screw	11518863
21	Centering sleeve	12558081
22	Cap	11561751
23	Plug	11562127
24	Delivery valve	12580965
25	Shackle	12798365
26	Shackle	55561157
27	Hexagon screw	11588739
28	Camshaft	12620462
29	Scalloped seal ring	12574477
30	Camshaft	12620460
30	Camshaft	12638411
31	Camshaft	12620461
31	Camshaft	12638412
32	Camshaft	12620459
32	Camshaft	12638410
33	Chain gear	12630917
33	Actuator	12626160
34	Chain gear	12603745
34	Actuator	12626161
35	Chain gear	12630918
35	Actuator	12614464
36	Hexagon screw	11588729
37	Hexagon screw	11518856
38	Actuator solenoid	12636175
39	O-ring	12593717
40	Screw	11588712
41	Inlet valve	12575352
41	Inlet valve	12584763
42	Exhaust valve	12575356
42	Exhaust valve	12584760
43	Valve spring	12616671
44	Valve cone	12575197
45	Disc	12575196
46	Valve steam seal	12565836
47	Valve lifter	9194698
48	Rocker arm	24100294
49	Spark plug	55564748
50	Washer	12632859
50	Thrust washer	12630941
