Saab 9-5 (650) 2010-2011 Cylinder head - Valve cover

Group 2 Engine, section 200

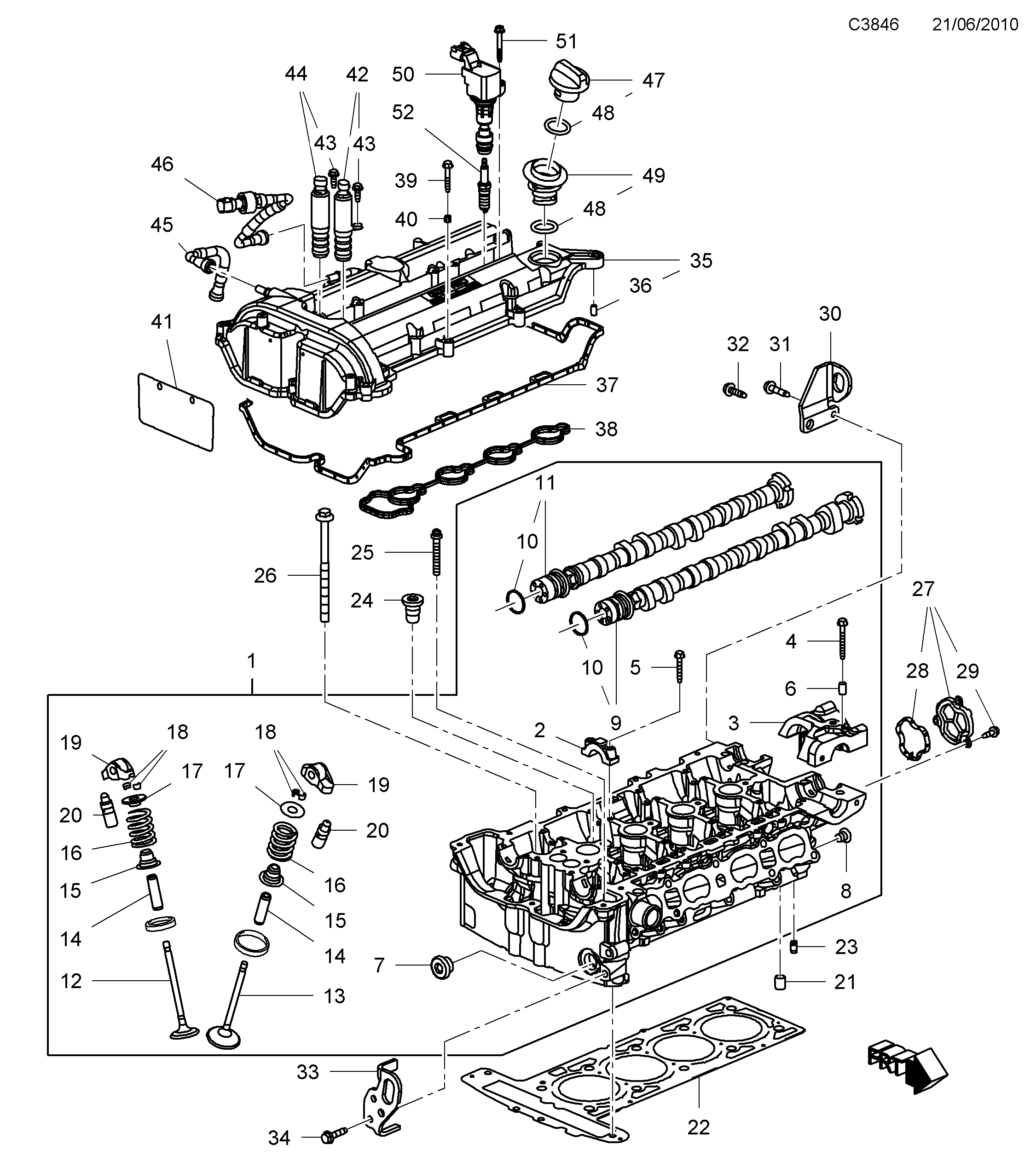

Saab 9-5 (650) Cylinder head - Valve cover diagram

Pos	Article	Part No.
1	Cylinder head	12626382
4	Screw	11609577
5	Torx screw	11588991
6	Guide sleeve	90537104
6	Sleeve	90351709
7	Cap	11561751
8	Screw plug	11588547
9	Camshaft	12589335
10	Scalloped seal ring	12574477
11	Camshaft	12629743
12	Exhaust valve	12597371
13	Inlet valve	55563529
15	Seal	90537241
16	Spring	90537032
17	Washer	90537243
18	Valve cone	90354648
19	Rocker arm	12565203
20	Valve lifter	9194698
21	Guide sleeve	90537102
22	Cylinder head gasket	12589346
23	Oil jet	90537983
25	Screw	11589328
26	Screw	90537691
27	Plate	12589459
28	Seal	12589461
29	Screw	11588712
30	Bracket	12612396
31	Hexagon screw	11588725
32	Screw	11589311
33	Bracket	12617527
34	Screw	11588723
35	Cover	12605217
36	Locating pin	12607128
37	Seal	12605173
38	Gasket	12593309
39	Screw	11588716
40	Sleeve	11518792
41	Insulation	12612784
42	Actuator solenoid	12628347
44	Actuator solenoid	12628348
45	Hose	12606566
46	Pipe	12625448
47	Oil filler cap	12621520
48	O-ring	24100002
49	Adapter	12589431
50	Ignition coil	12578224
50	Ignition coil	12629646
51	Screw	11589083
52	Spark plug	12620540
