Saab 9-5 (650) 2010-2011 Engine suspension

Group 2 Engine, section 130

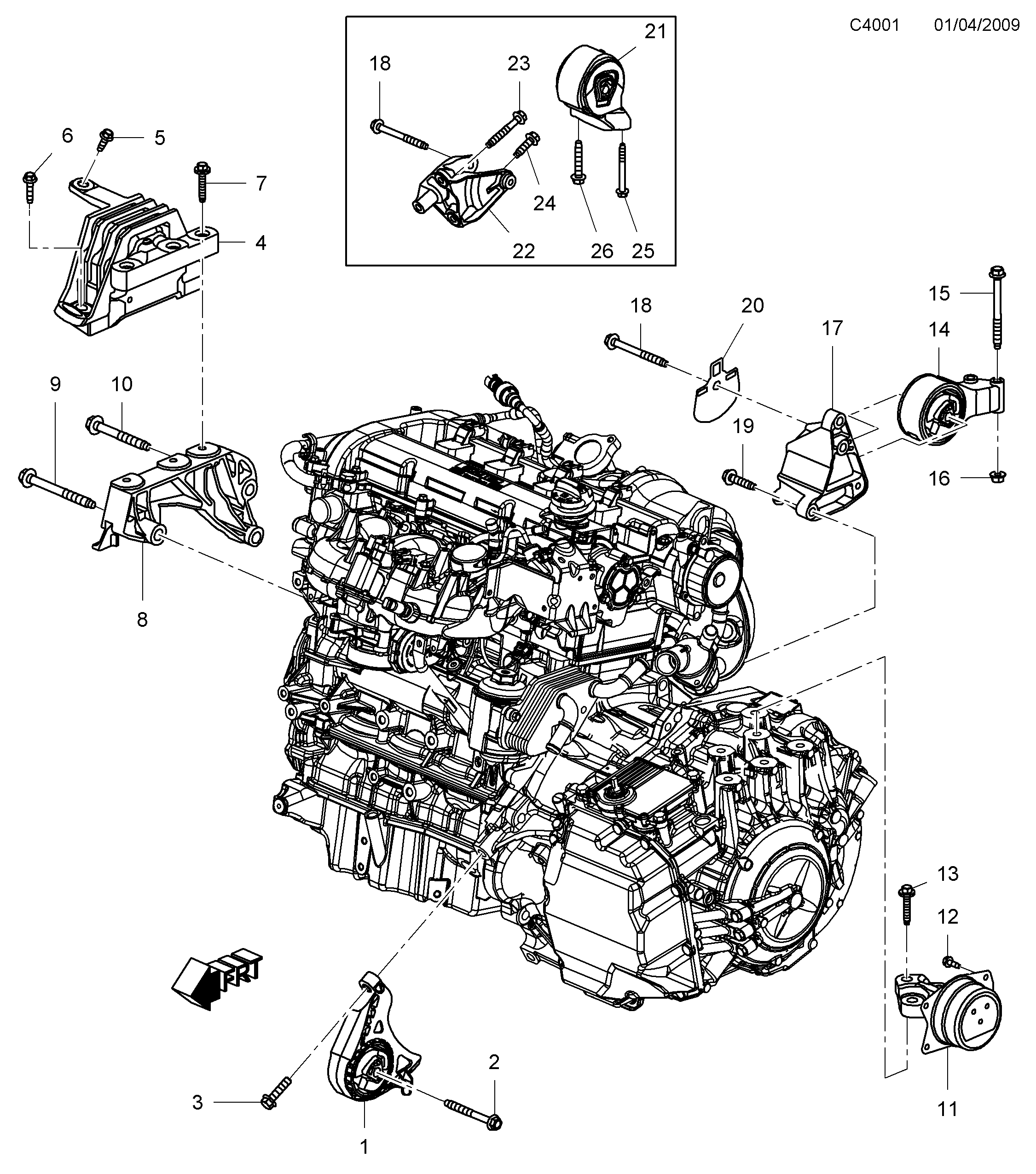

Saab 9-5 (650) Engine suspension diagram

Pos	Article	Part No.
1	Bushing	13227769
2	Hexagon screw	11589281
3	Screw	13274849
4	Vibration damper	13227714
4	Vibration damper	13227715
5	Hexagon screw	11588738
6	Hexagon screw	11588741
7	Screw	11570514
8	Bracket	13227754
9	Screw	11589275
10	Screw	11609606
11	Hydro bushing	13312096
11	Hydro bushing	13322172
12	Screw	11588723
12	Hexagon screw	92152134
14	Vibration damper	13228303
15	Screw	11589284
16	Nut	11514598
17	Bracket	13228288
18	Screw	11589283
19	Screw	11589276
20	Heat shield	9156952
21	Vibration damper	13228306
22	Bracket	13228287
23	Hexagon screw	11609598
24	Screw	11589274
25	Screw	11588751
