Saab 9-5 (650) 2010-2011 Engine suspension

Group 2 Engine, section 120

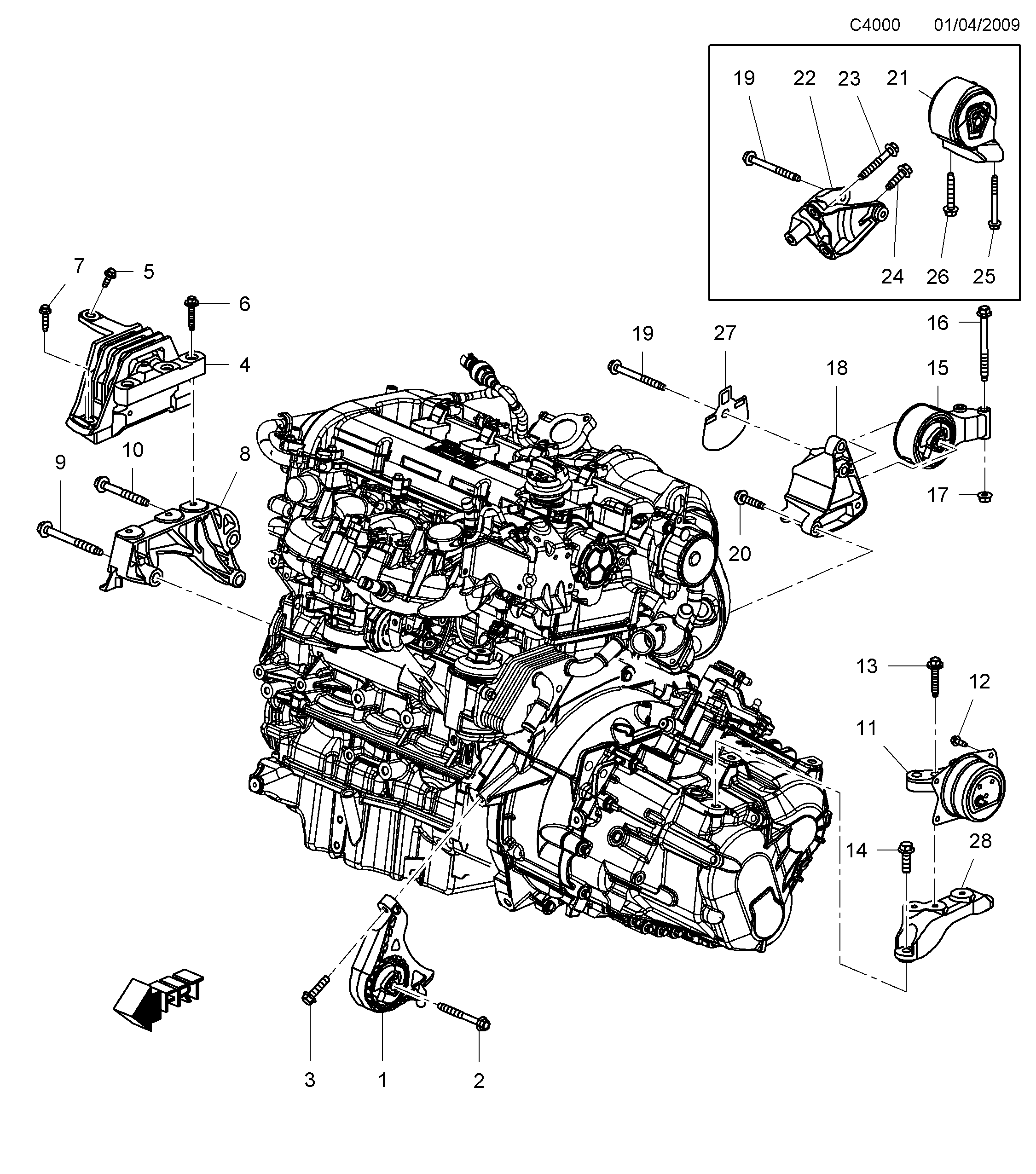

Saab 9-5 (650) Engine suspension diagram

Pos	Article	Part No.
1	Bushing	13227769
2	Hexagon screw	11589281
3	Screw	13274849
4	Vibration damper	13227714
4	Vibration damper	13227715
5	Hexagon screw	11588738
6	Screw	11570514
7	Hexagon screw	11588741
8	Bracket	13227754
9	Screw	11589275
10	Screw	11609606
10	Torx screw	11095041
11	Hydro bushing	13312094
11	Hydro bushing	13312100
12	Screw	11588723
12	Hexagon screw	92152134
14	Screw	13274851
14	Screw	11101131
15	Vibration damper	13228303
16	Screw	11589284
17	Nut	11514598
18	Bracket	13228288
19	Screw	11589283
20	Screw	11589276
21	Vibration damper	13228306
22	Bracket	13228287
23	Hexagon screw	11609598
24	Screw	11589274
25	Screw	11588751
27	Heat shield	9156952
28	Bracket	13228255
