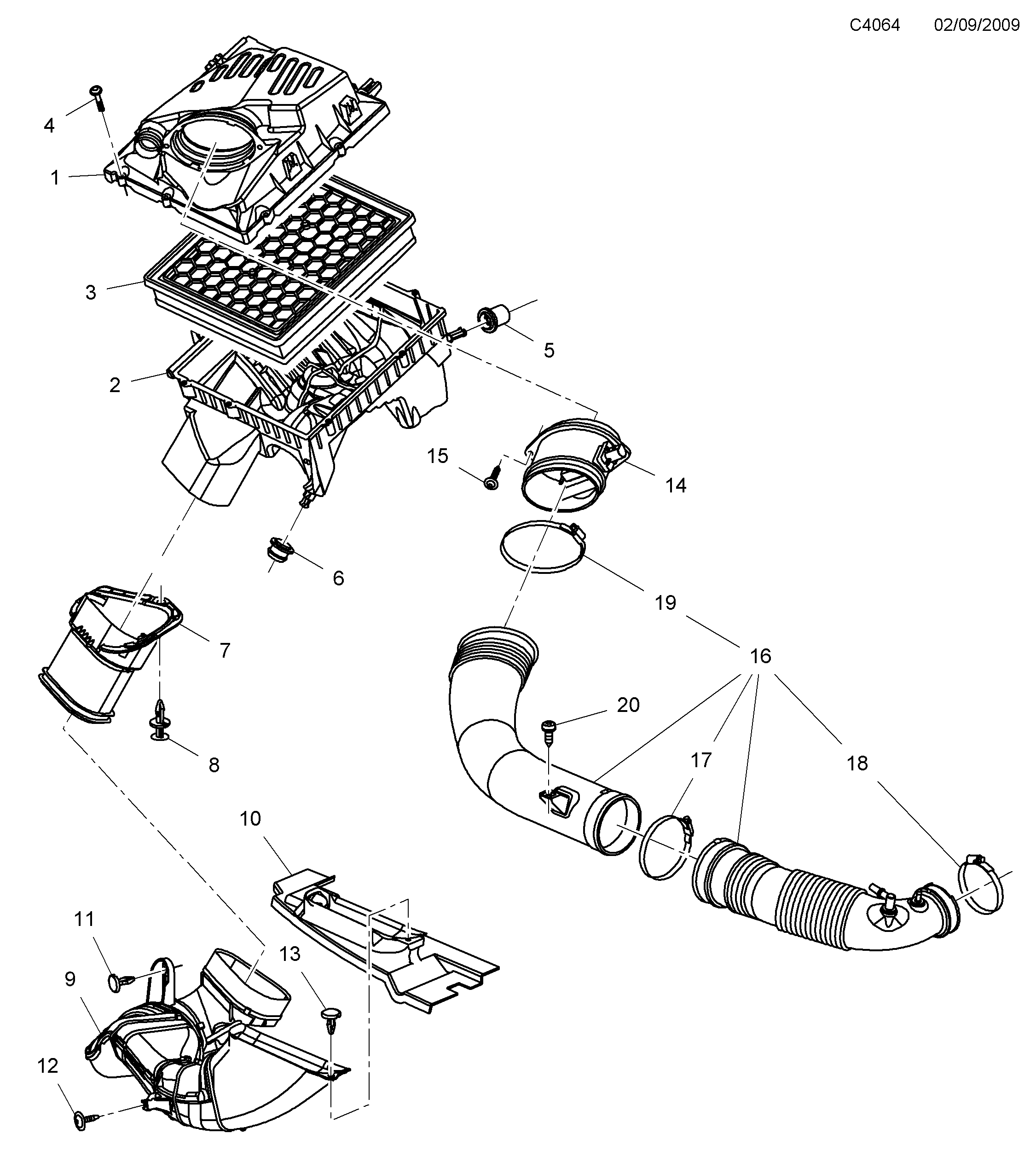

Group 2 Engine, section 1110
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 13296369 |
| 2 | Housing | 13335598 |
| 3 | Filter insert | 13319421 |
| 4 | Screw | 12800518 |
| 5 | Rubber spacer | 9202941 |
| 6 | Rubber spacer | 9129705 |
| 7 | Guide | 13325924 |
| 8 | Clip | 11589291 |
| 9 | Air duct | 13328136 |
| 10 | Water drainage | 13321545 |
| 12 | Screw | 13278397 |
| 13 | Expanding rivet | 11589290 |
| 14 | Mass air flow sensor | 13261544 |
| 15 | Screw | 11589012 |
| 16 | Air duct | 13307192 |
| 17 | Hose clamp | 24415474 |
| 18 | Hose clamp | 24442228 |
| 19 | Clamp | 13262349 |
| 20 | Torx screw | 11099882 |
