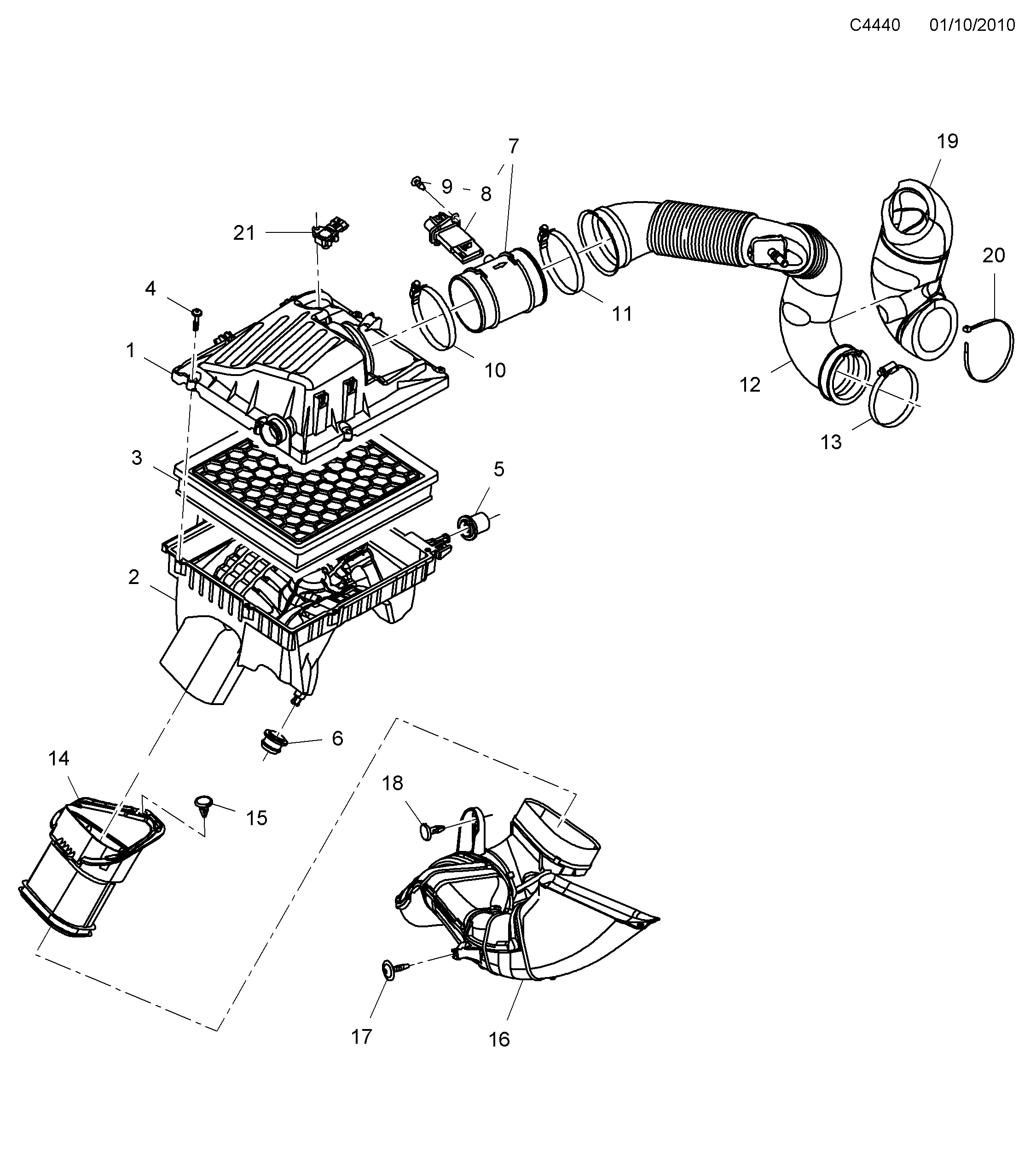

Group 2 Engine, section 1100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 13296370 |
| 1 | Cover | 13307055 |
| 2 | Housing | 13296372 |
| 3 | Filter insert | 13319421 |
| 3 | Filter insert | 55560894 |
| 4 | Screw | 12800518 |
| 5 | Rubber spacer | 9202941 |
| 6 | Rubber spacer | 9129705 |
| 7 | Mass air flow sensor | 13244778 |
| 8 | Mass air flow sensor | 15865791 |
| 9 | Screw | 11900491 |
| 10 | Hose clamp | 24415473 |
| 11 | Hose clamp | 24415472 |
| 12 | Air duct | 55560898 |
| 13 | Hose clamp | 24415471 |
| 14 | Guide | 13325924 |
| 15 | Rivet | 11589292 |
| 16 | Air duct | 13328136 |
| 17 | Screw | 13278397 |
| 18 | Clip | 11589291 |
| 19 | Insulation | 12821852 |
| 20 | Tie strap | 7971898 |
| 21 | Charge Air Absolute Pressure Sensor | 12594942 |
