Saab 9-3 (9440) 2003-2011 Climate control Heater unit

Group 9 Accessories, section 652

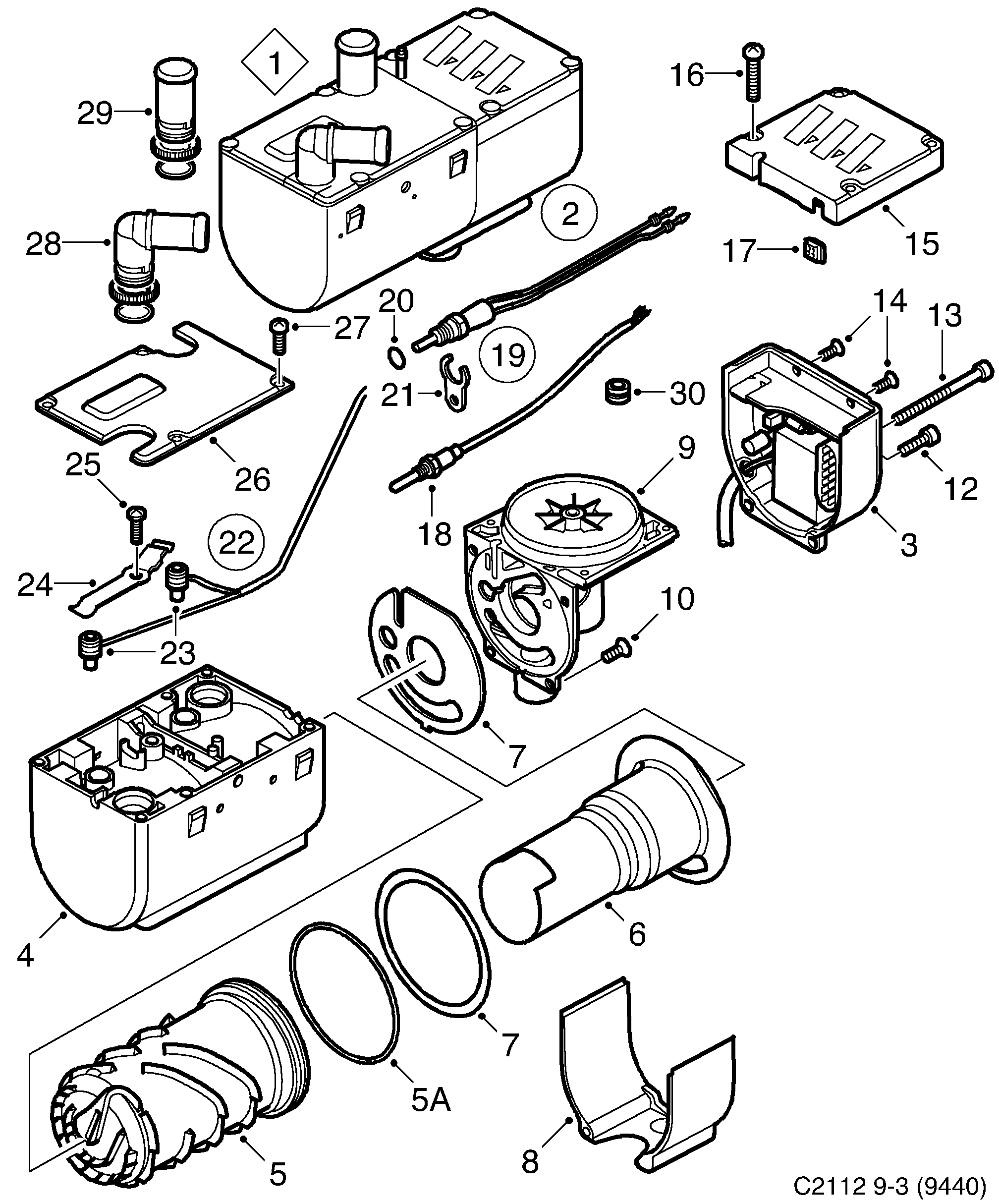

Saab 9-3 (9440) Climate control Heater unit diagram

Pos	Article	Part No.
2	Heater unit	12803312
3	Control unit	12788336
4	Cover	93172998
5	Heat exchanger	93173001
5A	O-ring	90541155
6	Burner	93173002
7	Gasket	93173004
8	Cover	93274250
9	Fan	93173003
10	Screw	93173061
12	Screw	93173064
13	Screw	93173062
14	Screw	93173063
15	Cover	93173013
16	Screw	93173065
17	Sleeve	93173068
18	Flame indicator	90544230
19	Glow plug	93174251
20	O-ring	93174508
21	Bracket	93173066
22	Cable harness	93174269
23	O-ring	93173067
24	Bracket	93173006
25	Screw	93173060
26	Cover	93173010
27	Screw	93173059
28	Nipple	93173069
29	Nipple	93173070
30	Fuel connection	93173071
