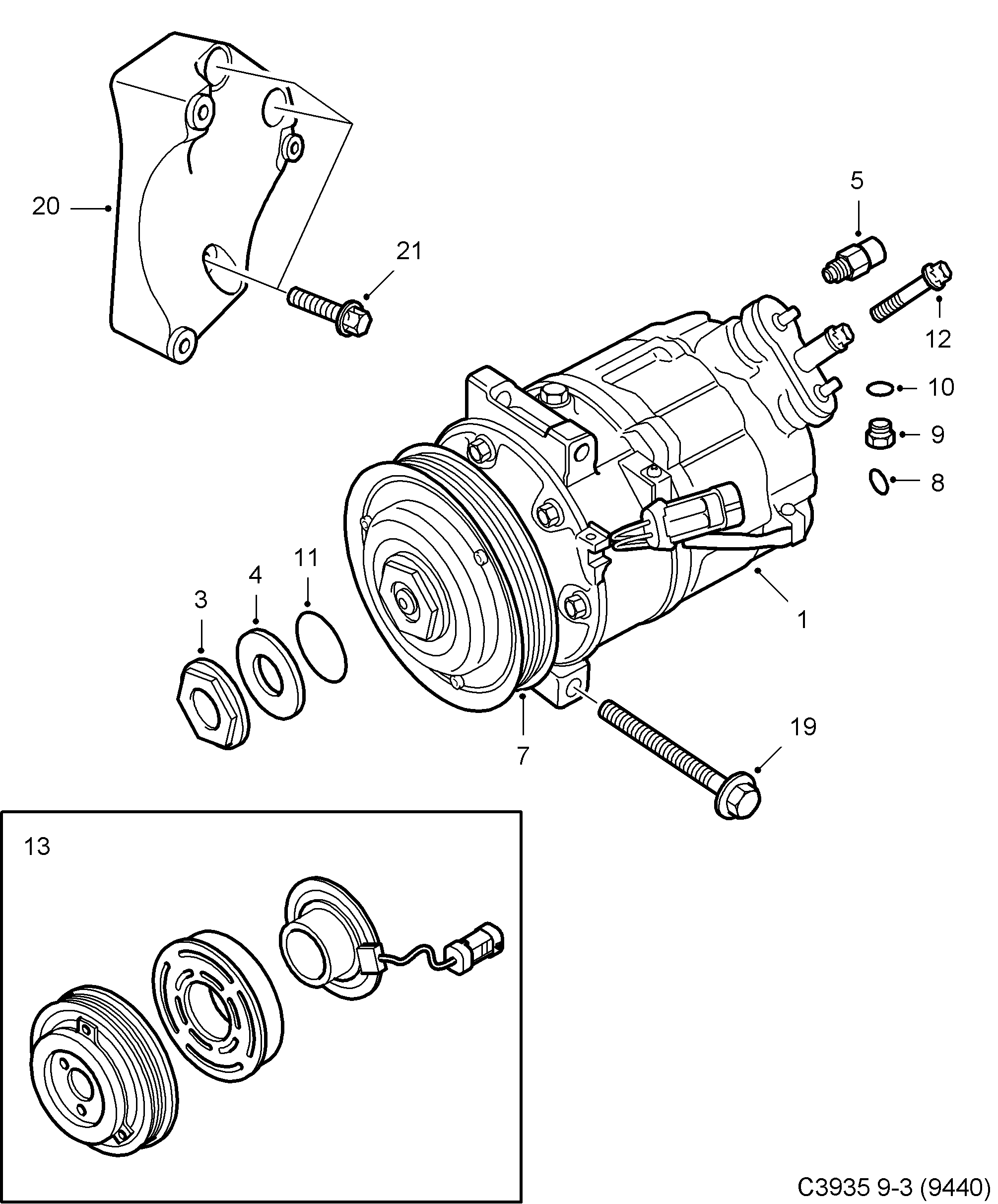

Group 8c Heating and ventilation, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Compressor | 12758381 (replaces 24411280) |
| 1 | Compressor | 12758381 |
| 1 | Compressor | 12759394 |
| 1 | Compressor | 12792669 |
| 1 | Compressor | 13171593 (replaces 24411249) |
| 1 | Compressor | 13171593 (replaces 13140505) |
| 1 | Compressor | 13191997 |
| 1 | Compressor | 13171593 |
| 1 | Compressor | 12770420 |
| 1 | Compressor | 13191995 (replaces 24411270) |
| 1 | Compressor | 13191995 |
| 3 | Nut | 93182419 (replaces 9194577) |
| 3 | Nut | 93182419 |
| 3 | Nut | 93184251 |
| 4 | Raceway washer | 90543271 |
| 5 | Valve | 9194582 |
| 7 | Clutch | 93184431 |
| 7 | Clutch | 93189061 (replaces 93185796) |
| 7 | Clutch | 93189061 |
| 7 | Conversion kit | 93184252 |
| 7 | Clutch | 93184285 |
| 7 | Clutch | 93185794 |
| 7 | Conversion kit | 93184432 |
| 8 | Lock ring | 90543272 |
| 9 | Screw | 93182417 |
| 10 | O-ring | 90543274 |
| 11 | Part kit | 93184284 |
| 11 | Sealing ring kit | 93182516 |
| 12 | Screw | 93173699 |
| 13 | Conversion kit | 93182423 |
| 19 | Screw | 24447549 (replaces 11519177) |
| 19 | Screw | 24447549 |
| 20 | Bracket | 55558799 (replaces 9226302) |
| 20 | Bracket | 55558799 |
| 20 | Bracket | 55187675 |
| 20 | Bracket | 55210423 |
| 20 | Support | 55354827 |
| 21 | Screw | 11097741 |
| 21 | Screw | 55563716 (replaces 12855059) |
| 21 | Screw | 55563716 |
| 21 | Hexagon screw | 92153207 |
| 21 | Screw | 11097651 |
| 21 | Screw | 11094051 |
| 21 | Screw | 11094791 |
