Saab 9-3 (9440) 2003-2011 Draft channels

Group 8c Heating and ventilation, section 220

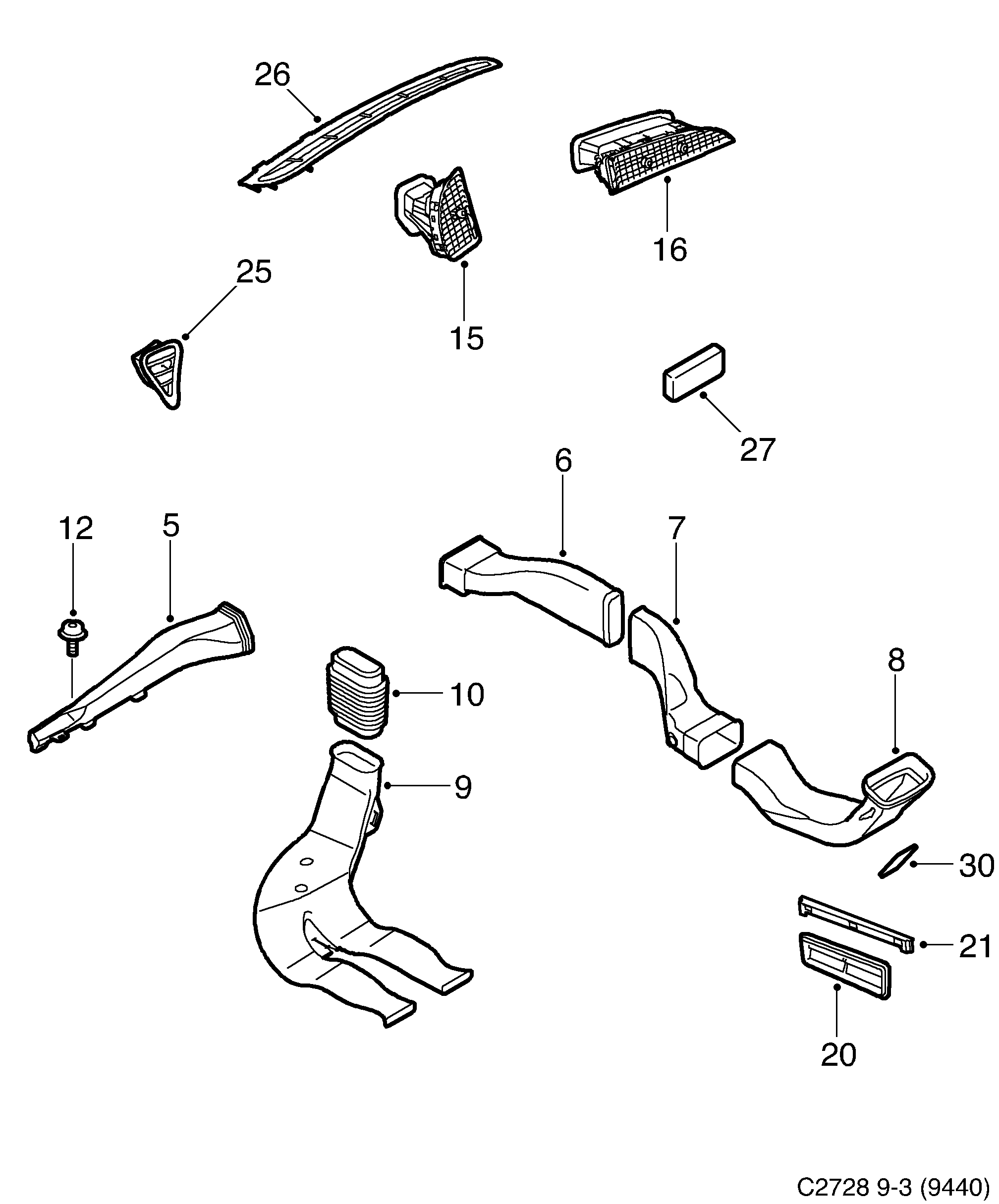

Saab 9-3 (9440) Draft channels diagram

Pos	Article	Part No.
5	Air duct	12779222 (replaces 12787121)
5	Air duct	12787123
5	Air duct	12787124
5	Air duct	12779221 (replaces 12787122)
6	Air duct	12786856
7	Air duct	12787067
8	Air duct	12785471
8	Air duct	12779318
9	Air duct	9179859
9	Air duct	9177130
10	Adapter	9229348
12	Screw	12780283 (replaces 92152214)
15	Air outlet	12786859
15	Air outlet	12804033
15	Air outlet	12766765
15	Air outlet	12789735
15	Air outlet	12804037
15	Air outlet	12766764
15	Air outlet	12791828
15	Air outlet	12804038
15	Air outlet	12766763
15	Air outlet	12786860
15	Air outlet	12804034
15	Air outlet	12766766
16	Air outlet	12786858
16	Air outlet	12804035
16	Air outlet	12765309
16	Air outlet	12786857
16	Air outlet	12804036
16	Air outlet	12765310
20	Exhaust grille	12765384 (replaces 12799761)
20	Exhaust grille	9177224
20	Exhaust grille	12765384
20	Exhaust grille	12765385
21	Guard plate	12765679
21	Guard plate	12765680
25	Air outlet	12791137
25	Air outlet	12791138
26	Grille	12804139 (replaces 12791135)
26	Grille	12804140 (replaces 12791136)
27	Foam part	12801535
30	Tape	12801649
