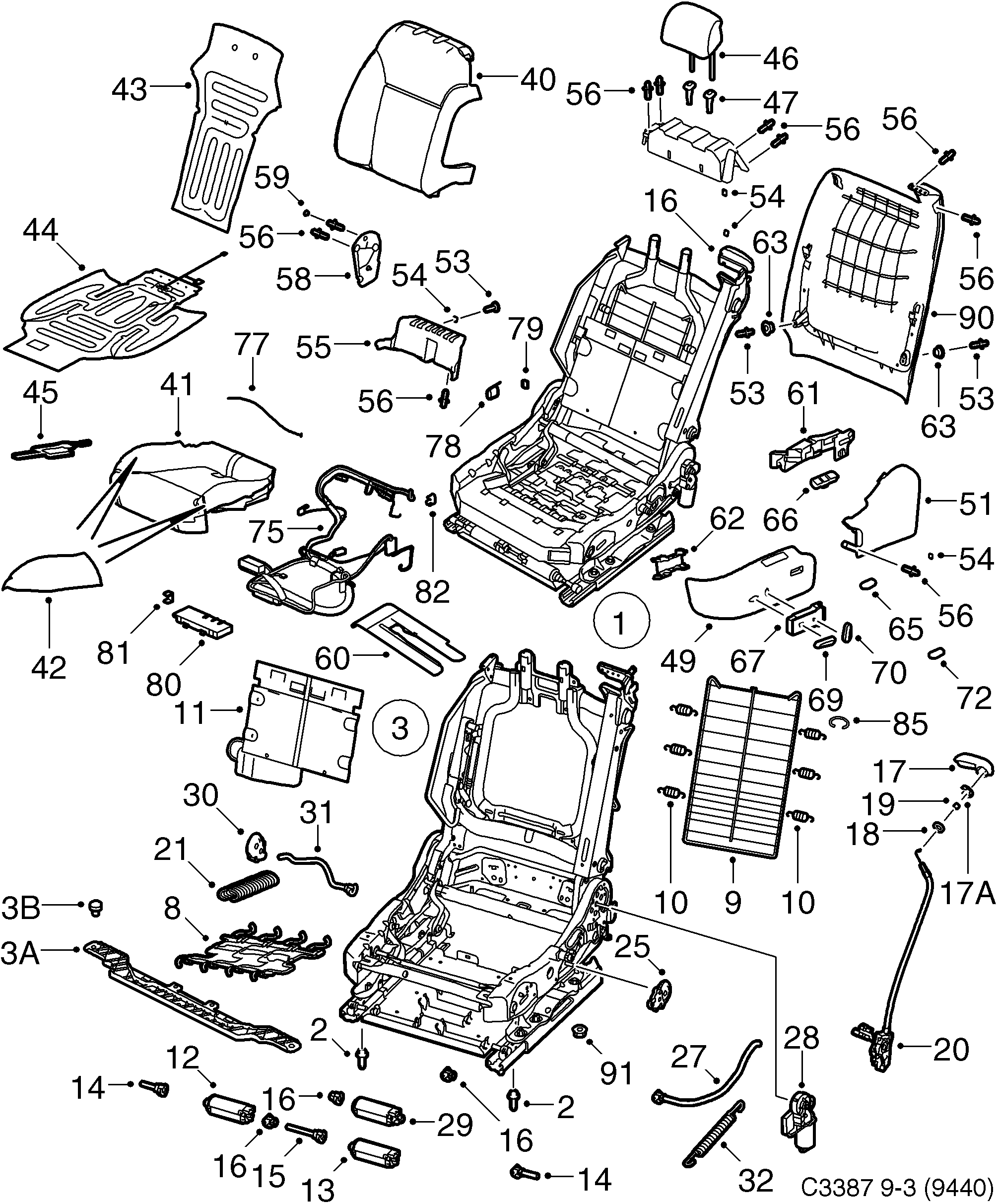

Group 8b Car body, internal, section 3150
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seat | 12804108 |
| 1 | Seat | 12804110 |
| 1 | Seat | 12804111 |
| 1 | Seat | 12804109 |
| 1 | Seat | 12804112 |
| 1 | Seat | 12804113 |
| 2 | Screw | 12767594 (replaces 12803726) |
| 2 | Screw | 12767594 (replaces 12833970) |
| 3 | Seat frame | 12798629 |
| 3 | Frame | 12761530 |
| 3 | Frame | 12767646 |
| 3 | Frame | 12768969 |
| 3 | Frame | 12772935 |
| 3 | Seat frame | 12798630 |
| 3 | Frame | 12761529 |
| 3 | Frame | 12767645 |
| 3 | Frame | 12768968 |
| 3 | Frame | 12772934 |
| 3 | Frame | 12764056 |
| 3 | Frame | 12767655 |
| 3 | Frame | 12768970 |
| 3 | Frame | 12772936 |
| 3 | Seat frame | 12798631 |
| 3 | Frame | 12761528 |
| 3 | Frame | 12767644 |
| 3 | Frame | 12768967 |
| 3 | Frame | 12772933 |
| 3 | Seat frame | 12798632 |
| 3 | Frame | 12761527 |
| 3 | Frame | 12767643 |
| 3 | Frame | 12768966 |
| 3 | Frame | 12772932 |
| 3 | Seat frame | 12758647 |
| 3 | Frame | 12761526 |
| 3 | Frame | 12767642 |
| 3 | Frame | 12768965 |
| 3 | Frame | 12772931 |
| 3A | Bracket | 24452499 |
| 3B | Torx screw | 11102721 |
| 8 | Wire matting | 12802562 |
| 9 | Wire matting | 12802563 |
| 10 | Spring | 12802564 |
| 11 | Lumbar support | 12802580 |
| 12 | Electrical motor | 12802545 |
| 12 | Electrical motor | 12802572 |
| 12 | Electrical motor | 12761505 |
| 13 | Electrical motor | 12802549 |
| 14 | Cable | 12802547 |
| 14 | Cable | 12761507 |
| 15 | Cable | 12802548 |
| 16 | Rubber damper | 12802550 |
| 17 | Opening handle | 12832865 |
| 17 | Handle | 12765751 |
| 17 | Opening handle | 12797340 |
| 17 | Handle | 12765752 |
| 17A | Snap ring | 93166797 |
| 18 | Spacer | 12802560 |
| 19 | Sealing washer | 12802561 |
| 20 | Cable | 12802556 |
| 20 | Cable | 12802557 |
| 21 | Mounting kit | 12800399 |
| Hook | 12800399 (replaces 12803044) | |
| 25 | Gear | 12802575 |
| 27 | Cable | 12802576 |
| 28 | Electrical motor | 12802565 |
| 28 | Electrical motor | 12802566 |
| 30 | Gear | 12802573 |
| 31 | Cable | 12802574 |
| 32 | Spring | 12802577 |
| 40 | Foam plastic cushion | 12797315 |
| 40 | Foam plastic cushion | 12796359 |
| 41 | Foam plastic cushion | 12797314 |
| 42 | Foam plastic insert | 12801618 |
| 42 | Foam plastic insert | 12802781 |
| 43 | Heating pad | 12783120 |
| 44 | Heating pad | 12783124 |
| 45 | Sensor | 12760542 (replaces 12798004) |
| 45 | Sensor | 12760542 |
| 46 | Head restraint | 12796357 |
| 46 | Head restraint | 12758791 |
| 46 | Head restraint | 12776224 |
| 47 | Sleeve | 24453402 |
| 49 | Cover | 12798692 |
| 49 | Cover | 12779534 |
| 49 | Cover | 12798694 |
| 49 | Cover | 12779535 |
| 49 | Cover | 12798693 |
| 49 | Cover | 12798695 |
| 49 | Cover | 12798688 |
| 49 | Cover | 12779532 |
| 49 | Cover | 12798690 |
| 49 | Cover | 12779533 |
| 49 | Cover | 12798689 |
| 49 | Cover | 12798691 |
| 49 | Cover | 12774352 |
| 49 | Cover | 12774353 |
| 49 | Cover | 12771819 |
| 49 | Cover | 12779524 |
| 49 | Cover | 12771820 |
| 49 | Cover | 12779526 |
| 49 | Cover | 12774347 |
| 49 | Cover | 12779528 |
| 49 | Cover | 12774348 |
| 49 | Cover | 12779530 |
| 51 | Cover | 12832815 |
| 51 | Cover | 12797338 |
| 51 | Cover | 12797337 |
| 51 | Cover | 12797339 |
| 53 | Screw | 92152147 |
| 54 | Clip nut | 92152332 |
| 55 | Cover | 12775823 (replaces 12832814) |
| 55 | Cover | 12775823 |
| 55 | Cover | 12775822 (replaces 12797326) |
| 55 | Cover | 12775822 |
| 56 | Plastic rivet | 92152335 |
| 58 | Cover | 12830822 |
| 58 | Cover | 12797329 |
| 58 | Cover | 12797328 |
| 58 | Cover | 12797330 |
| 59 | Cover | 12797341 |
| 59 | Cover | 12797342 |
| 60 | Cover | 12833444 |
| 60 | Cover | 12763142 |
| 60 | Cover | 12833445 |
| 60 | Cover | 12763141 |
| 61 | Bracket | 12797385 |
| 61 | Bracket | 12797386 |
| 62 | Adapter | 12779463 |
| 63 | Nut | 92152334 |
| 65 | Switch | 12799331 |
| 65 | Switch | 12799333 |
| 66 | Switch | 12791026 |
| 67 | Switch | 93180917 |
| 67 | Switch | 93180918 |
| 67 | Switch | 13104873 |
| 67 | Switch | 93180920 (replaces 13104874) |
| 67 | Switch | 12779514 |
| 67 | Switch | 12779515 |
| 69 | Button | 12805232 (replaces 12790957) |
| 69 | Button | 12805232 (replaces 12803365) |
| 69 | Button | 12805232 |
| 69 | Button | 12805237 (replaces 12791024) |
| 69 | Button | 12805237 (replaces 12803366) |
| 69 | Button | 12805237 |
| 69 | Knob | 13274114 |
| 70 | Button | 12803367 (replaces 12790958) |
| 70 | Button | 12803367 |
| 70 | Button | 12803368 (replaces 12791025) |
| 70 | Button | 12803368 |
| 70 | Knob | 13274112 |
| 72 | Cover | 12759328 |
| 72 | Cover | 12759329 |
| 72 | Cover | 12774354 |
| 75 | Cable harness | 12804047 |
| 75 | Cable harness | 12761523 |
| 75 | Cable harness | 12779542 |
| 75 | Cable harness | 12804048 |
| 75 | Cable harness | 12761519 |
| 75 | Cable harness | 12773716 |
| 75 | Cable harness | 12779564 |
| 75 | Cable harness | 12804092 |
| 75 | Cable harness | 12779306 |
| 75 | Cable harness | 12804049 |
| 75 | Cable harness | 12761522 |
| 75 | Cable harness | 12779540 |
| 75 | Cable harness | 12804046 |
| 75 | Cable harness | 12761521 |
| 75 | Cable harness | 12773718 |
| 75 | Cable harness | 12779566 |
| 75 | Cable harness | 12804044 |
| 75 | Cable harness | 12761525 |
| 75 | Cable harness | 12779546 |
| 75 | Cable harness | 12804045 |
| 75 | Cable harness | 12761524 |
| 75 | Cable harness | 12779544 |
| 77 | Tie strap | 11900512 |
| 78 | Microswitch | 12799330 |
| 79 | Clip | 12800502 |
| 80 | Electronic unit | 12789781 |
| 80 | Electronic unit | 12777815 (replaces 12788690) |
| 80 | Electronic unit | 12777815 |
| 80 | Relay | 12761504 |
| 81 | Clamp | 12800501 |
| 82 | Sensor | 12791602 |
| 91 | Nut | 11900429 |
