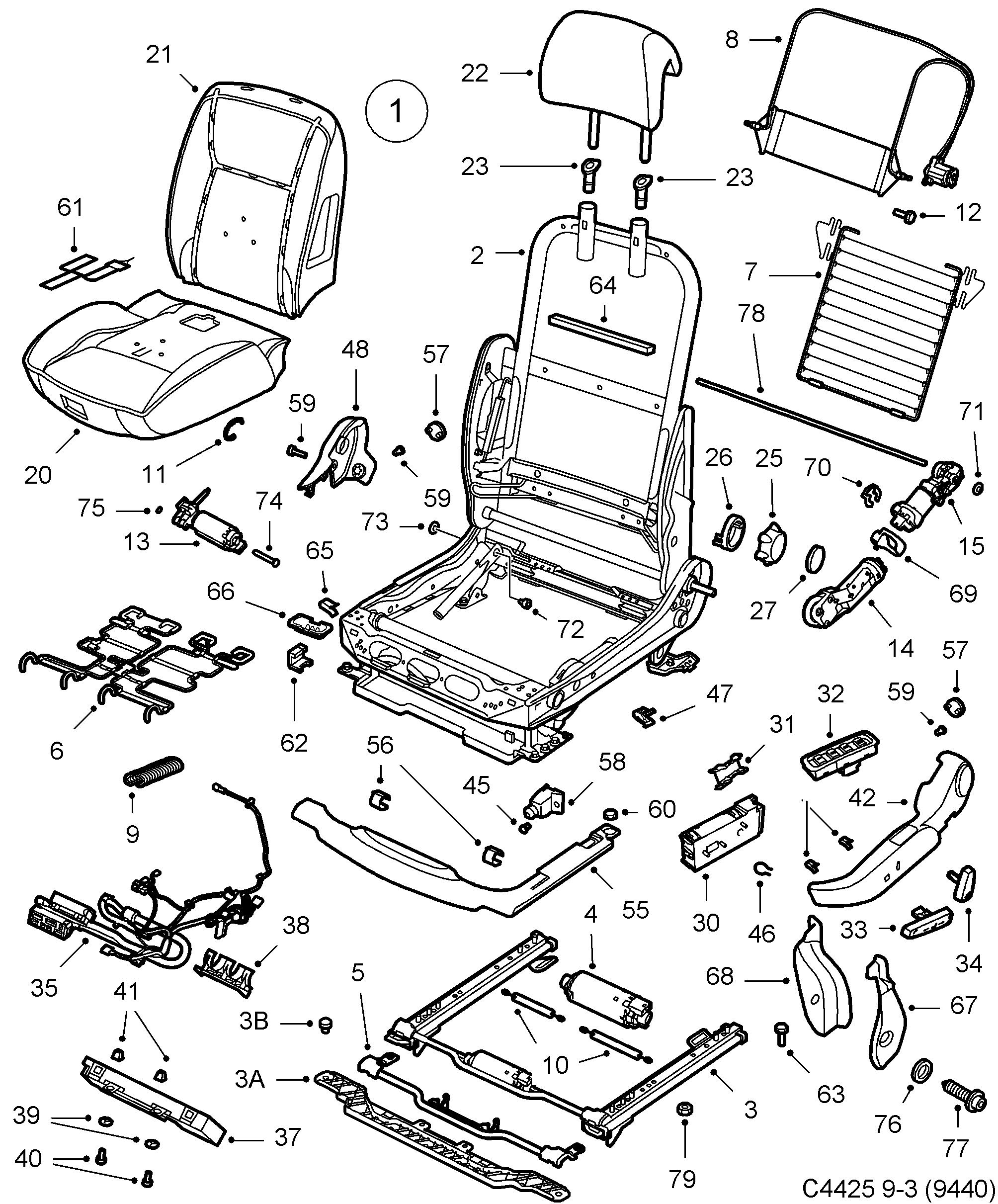

Group 8b Car body, internal, section 3100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seat | 12801489 |
| 1 | Seat | 12801490 |
| 1 | Seat | 12801491 |
| 1 | Seat | 12801492 |
| 2 | Seat frame | 24450067 |
| 2 | Seat frame | 24450082 |
| 2 | Seat frame | 12848619 (replaces 13201332) |
| 2 | Seat frame | 12848619 |
| 2 | Seat frame | 12823641 |
| 2 | Seat frame | 24450081 |
| 2 | Seat frame | 13201331 |
| 2 | Seat frame | 24450068 |
| 2 | Seat frame | 24450071 |
| 2 | Seat frame | 24450070 |
| 2 | Frame | 12755373 |
| 2 | Frame | 12755374 |
| 3 | Seat rail | 13125530 |
| 3 | Seat rail | 13124768 |
| 3 | Rail | 12823643 |
| 3 | Seat rail | 13124767 |
| 3 | Seat rail | 13125531 |
| 3 | Seat rail | 13124765 |
| 3 | Seat rail | 13124766 |
| 3A | Bracket | 24452499 |
| 3B | Torx screw | 11102721 |
| 4 | Electrical motor | 24467318 |
| 4 | Electrical motor | 24467319 |
| 5 | Carrier | 13100005 |
| 10 | Cable | 13100006 |
| 6 | Wire matting | 24438337 |
| 7 | Wire matting | 12796323 |
| 8 | Lumbar support | 12771576 (replaces 12796264) |
| 8 | Support | 12771576 |
| 8 | Lumbar support | 12771575 (replaces 12796265) |
| 8 | Support | 12771575 |
| 9 | Mounting kit | 12800399 |
| 11 | Hook | 12800399 (replaces 12803044) |
| 13 | Electrical motor | 9178759 |
| 13 | Electrical motor | 9178760 |
| 13 | Electrical motor | 24467322 |
| 13 | Electrical motor | 24467323 |
| 14 | Electrical motor | 24447376 |
| 14 | Electrical motor | 24447377 |
| 14 | Electrical motor | 24467320 |
| 14 | Electrical motor | 24467321 |
| 15 | Electrical motor | 24467324 |
| 15 | Electrical motor | 24467325 |
| 20 | Foam plastic cushion | 12799017 (replaces 12790974) |
| 20 | Seat cushion | 12799017 |
| 20 | Foam plastic cushion | 12799018 (replaces 12790976) |
| 20 | Seat cushion | 12799018 |
| 21 | Foam plastic cushion | 12796262 |
| 21 | Foam plastic cushion | 12796263 |
| 21 | Foam plastic cushion | 12790977 |
| 21 | Foam plastic cushion | 12791794 |
| 22 | Head restraint | 12758791 (replaces 12790887) |
| 22 | Head restraint | 12758791 |
| 22 | Head restraint | 12776224 |
| 23 | Sleeve | 24453402 |
| 25 | Control knob | 12800996 |
| 26 | Spacer | 12790956 |
| 26 | Spacer | 12793514 |
| 27 | Cover | 12759328 |
| 27 | Cover | 12759329 |
| 30 | Switch | 93180917 |
| 30 | Switch | 93180918 |
| 30 | Switch | 13104873 |
| 30 | Switch | 93180920 (replaces 13104874) |
| 31 | Adapter | 12779463 |
| 32 | Switch | 12791026 |
| 33 | Button | 12805232 (replaces 12790957) |
| 33 | Button | 12805232 (replaces 12803365) |
| 33 | Button | 12805232 |
| 33 | Button | 12805237 (replaces 12791024) |
| 33 | Button | 12805237 (replaces 12803366) |
| 33 | Button | 12805237 |
| 34 | Button | 12803367 (replaces 12790958) |
| 34 | Button | 12803367 |
| 34 | Button | 12803368 (replaces 12791025) |
| 34 | Button | 12803368 |
| 35 | Cable harness | 12790982 |
| 35 | Cable harness | 12790990 |
| 35 | Cable harness | 12772883 |
| 35 | Cable harness | 12779578 |
| 35 | Cable harness | 12772887 |
| 35 | Cable harness | 12779582 |
| 35 | Cable harness | 12802428 |
| 35 | Cable harness | 12762796 |
| 35 | Cable harness | 12779572 |
| 35 | Cable harness | 12773699 |
| 35 | Cable harness | 12779590 |
| 35 | Cable harness | 12794963 |
| 35 | Cable harness | 12762800 |
| 35 | Cable harness | 12779576 |
| 35 | Cable harness | 12790983 |
| 35 | Cable harness | 12773701 |
| 35 | Cable harness | 12779592 |
| 35 | Cable harness | 12790991 |
| 35 | Cable harness | 12773693 |
| 35 | Cable harness | 12779586 |
| 37 | Electronic unit | 12777813 (replaces 12798791) |
| 37 | Electronic unit | 12777813 (replaces 12801099) |
| 37 | Electronic unit | 12777813 (replaces 12802127) |
| 37 | Electronic unit | 12777813 |
| 38 | Bracket | 24413548 |
| 39 | Washer | 90353657 |
| 40 | Pin | 13104959 |
| 41 | Clamp | 13112907 |
| 42 | Cover | 12793868 |
| 42 | Cover | 12793870 |
| 42 | Cover | 12793869 |
| 42 | Cover | 12793871 |
| 42 | Cover | 12763831 |
| 42 | Cover | 12763829 |
| 42 | Cover | 12793872 |
| 42 | Cover | 12793874 |
| 42 | Cover | 12793873 |
| 42 | Cover | 12793875 |
| 42 | Cover | 12763828 |
| 42 | Cover | 12763830 |
| 42 | Cover | 12779520 |
| 42 | Cover | 12779521 |
| 42 | Cover | 12779519 |
| 42 | Cover | 12779517 |
| 42 | Cover | 12845930 (replaces 12779522) |
| 42 | Cover | 12845930 |
| 42 | Cover | 12779523 |
| 42 | Cover | 12845931 |
| 42 | Cover | 12779516 |
| 42 | Cover | 12845928 |
| 42 | Cover | 12779518 |
| 42 | Cover | 12845929 |
| 45 | Screw | 90562550 |
| 46 | Clip | 92152292 |
| 47 | Clip | 92152293 |
| 48 | Cover | 12790873 |
| 48 | Cover | 12790875 |
| 48 | Cover | 12790874 |
| 48 | Cover | 12790876 |
| 48 | Cover | 24452130 |
| 48 | Cover | 24452133 |
| 55 | Cover | 12794276 |
| 55 | Cover | 12794277 |
| 55 | Cover | 12794274 |
| 55 | Cover | 12794275 |
| 55 | Cover | 12763771 |
| 55 | Cover | 12763772 |
| 56 | Clip | 92151442 |
| 57 | Cover | 12791020 |
| 57 | Cover | 12791022 |
| 57 | Cover | 12791021 |
| 57 | Cover | 12791023 |
| 58 | Bracket | 12790964 |
| 58 | Bracket | 12790965 |
| 60 | Nut | 13116054 |
| 61 | Sensor | 12760542 (replaces 12798004) |
| 61 | Sensor | 12760542 |
| 62 | Sensor | 12791602 |
| 30 | Switch | 12779515 |
| 30 | Switch | 12779514 |
| 33 | Knob | 13274114 |
| 34 | Knob | 13274112 |
| 63 | Screw | 12823523 |
| 64 | Spacer | 12799087 |
| 65 | Clip | 12804373 |
| 66 | Clip | 12799019 |
| 67 | Edge protection | 13121831 |
| 68 | Edge protection | 13121832 |
| 69 | Bracket | 13183230 |
| 70 | Clip | 13183231 |
| 71 | Spring washer | 13183232 |
| 72 | Screw | 13183233 |
| 73 | Spacer | 13183234 |
| 74 | Pin | 13183235 |
| 75 | Spacer | 13203428 |
| 77 | Screw | 11097381 |
| 78 | Shaft | 13111818 |
| 79 | Nut | 11900429 |
