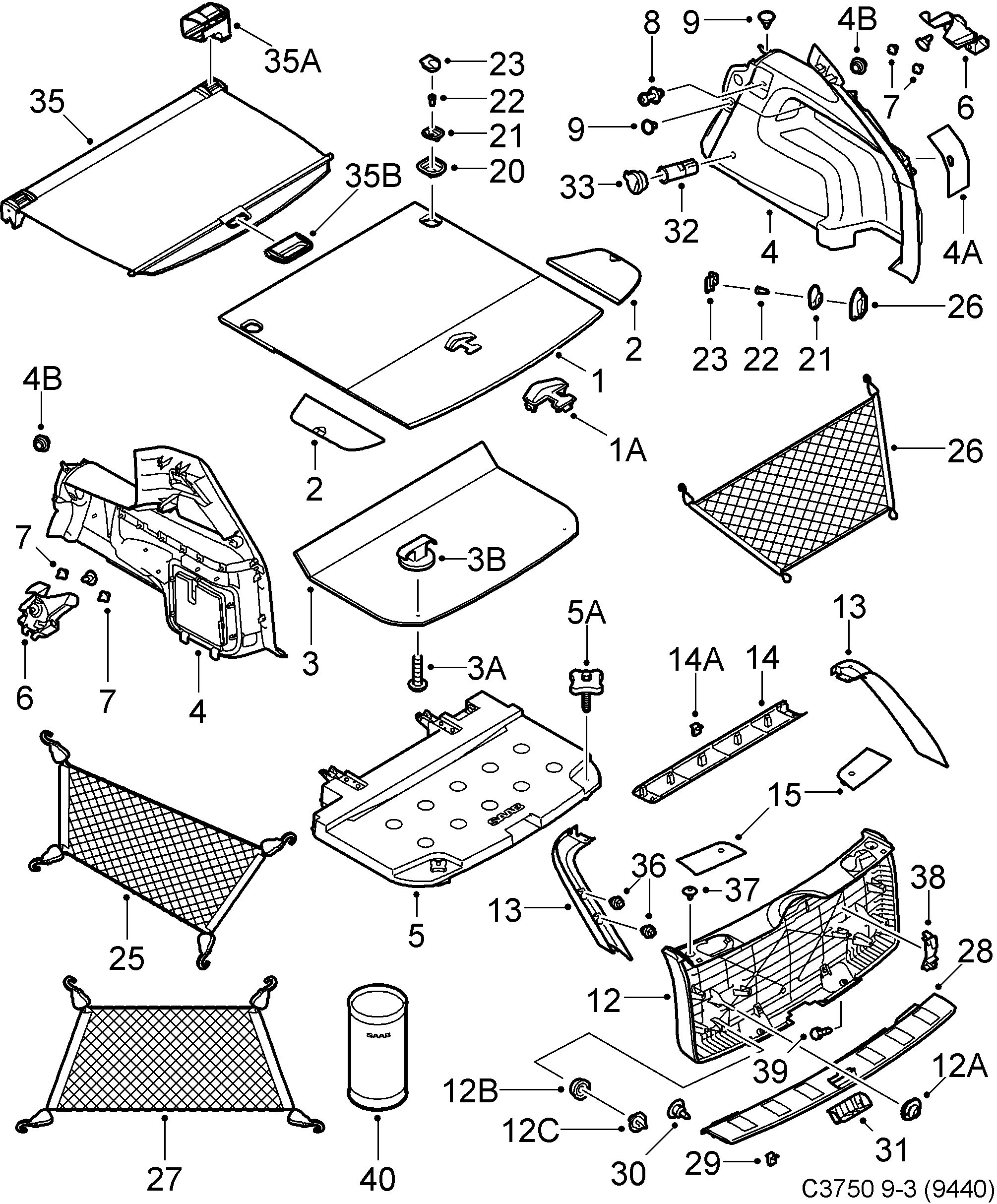

Group 8b Car body, internal, section 2620
| Pos | Article | Part No. |
|---|---|---|
| 1 | Loading floor | 12794188 |
| 1 | Loading floor | 12783264 |
| 1A | Handle | 12793631 |
| 2 | Loading floor | 12794191 |
| 2 | Loading floor | 12783270 |
| 2 | Loading floor | 12766134 |
| 2 | Loading floor | 12783271 |
| 2 | Loading floor | 12794149 |
| 2 | Loading floor | 12783272 |
| 2 | Loading floor | 12765882 |
| 2 | Loading floor | 12783273 |
| 3 | Loading floor | 12798573 |
| 3A | Screw | 92151823 |
| 3B | Hook | 12762902 |
| 4 | Luggage compt lining | 12794173 |
| 4 | Luggage compt lining | 12779308 |
| 4 | Luggage compt lining | 12783266 |
| 4A | Hatch | 12794104 |
| 4A | Hatch | 12781439 |
| 4A | Hatch | 12783913 |
| 4B | Clip | 12769637 |
| 4 | Luggage compt lining | 12794110 |
| 4 | Luggage compt lining | 12779309 |
| 4 | Luggage compt lining | 12783268 |
| 4A | Hatch | 12794183 |
| 4A | Hatch | 12781438 |
| 4A | Hatch | 12783915 |
| 5 | Loudspeaker | 12792505 |
| 5A | Screw | 12765962 |
| 6 | Bracket | 12794732 |
| 6 | Bracket | 12794733 |
| 7 | Rivet | 92152036 |
| 8 | Screw | 12761473 |
| 12 | Luggage compt lining | 12794203 |
| 12 | Luggage compt lining | 12783274 |
| 12A | Rubber seal | 5141924 |
| 12B | Clip | 92152355 |
| 12C | Clip | 92152391 |
| 13 | Cover | 12770227 (replaces 12793705) |
| 13 | Cover | 12770227 |
| 13 | Cover | 12793707 |
| 13 | Cover | 12770228 |
| Spacer | 12800301 | |
| 14 | Cover | 12793703 |
| 14A | Clamp | 12763576 (replaces 92152124) |
| 15 | Grille, loudspeaker | 12793698 |
| 15 | Grille, loudspeaker | 12793699 |
| 20 | Plate | 24456010 |
| 21 | Lashing ring | 12768269 |
| 22 | Screw | 4685988 |
| 23 | Cap | 24456019 |
| 25 | Safety net | 12767656 (replaces 12767110) |
| 26 | Cargo net | 12762263 |
| 26 | Safety net | 12771242 |
| 27 | Floor cargo net | 12804871 |
| 27 | Safety net | 12771241 |
| 28 | Sill protection | 12794770 |
| 29 | Clamp | 12763576 (replaces 4388757) |
| 31 | Cover | 12796677 |
| 32 | Power outlet | 12450044 |
| 33 | Retaining ring | 12450047 |
| 35 | Security panel | 12796049 |
| 35A | Release mechanism | 12849758 |
| 35A | Release mechanism | 12849759 |
| 35B | Handle | 12821512 |
| 36 | Clip | 12768769 |
| 37 | Clamp | 92152371 |
| 38 | Clip | 12794777 |
| 39 | Screw | 92151603 (replaces 92150067) |
| 39 | Screw | 92151603 |
| 40 | Protective foil | 32025840 |
