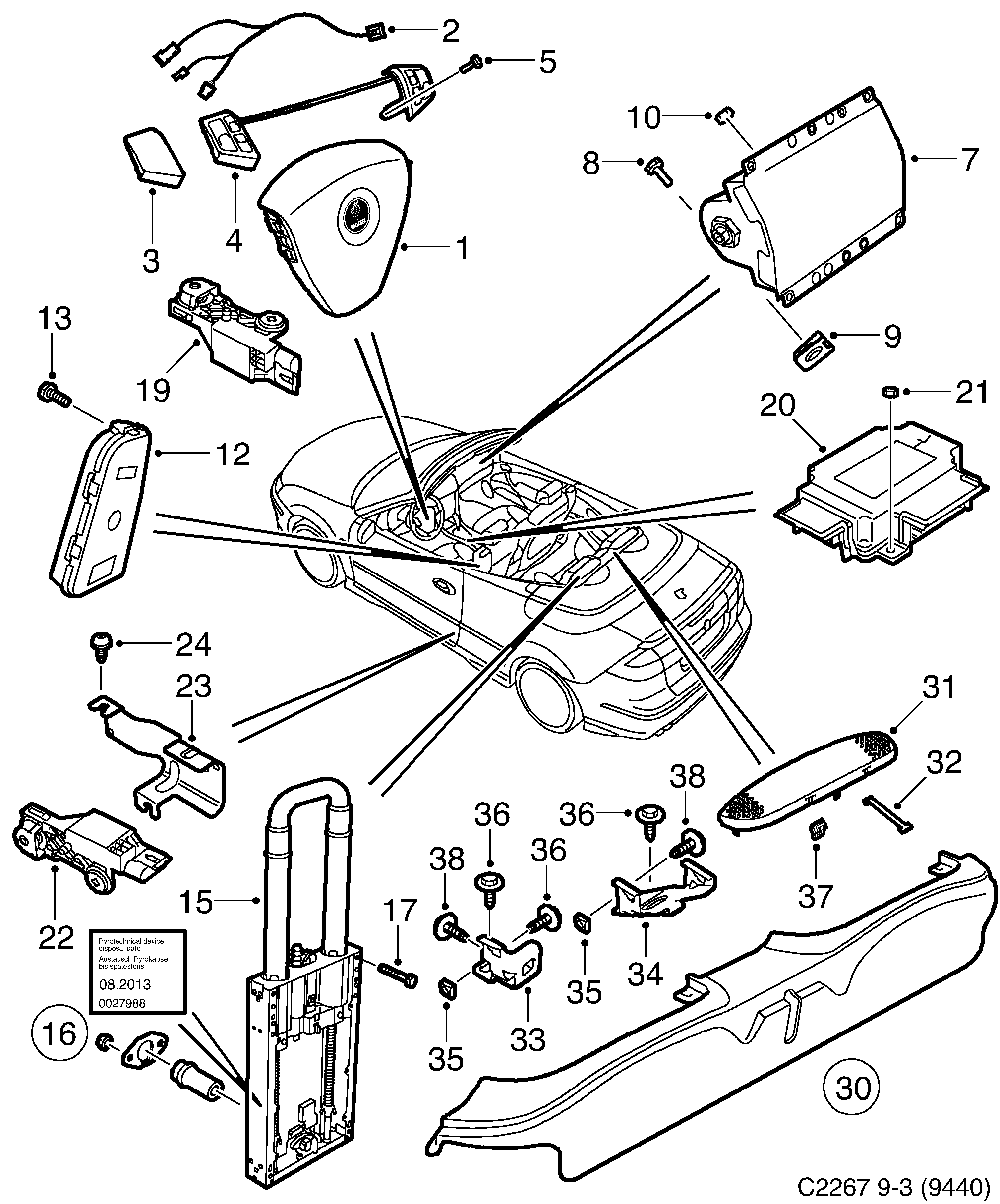

Group 8b Car body, internal, section 1500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Inflatable bag | 12789426 |
| 1 | Inflatable bag | 12757622 |
| 2 | Cable harness | 12788406 |
| 2 | Cable harness | 12766215 |
| 3 | Cover | 12788011 |
| 3 | Cover | 12799743 |
| 7 | Inflatable bag | 12833371 |
| 7 | Inflatable bag | 12785274 |
| 7 | Inflatable bag | 12833492 |
| 7 | Inflatable bag | 12785273 |
| 7 | Inflatable bag | 12757627 |
| 8 | Screw | 92151891 (replaces 92150090) |
| 9 | Nut | 11900467 |
| 10 | Nut | 92153044 (replaces 92150142) |
| 10 | Nut | 11900439 |
| 12 | Inflatable bag | 12832835 |
| 12 | Inflatable bag | 12832924 |
| 12 | Inflatable bag | 12800254 |
| 13 | Screw | 12845177 |
| 15 | Roll-over bar | 12758372 (replaces 12830025) |
| 15 | Roll-over bar | 12758372 |
| 16 | Release mechanism | 93184376 (replaces 12832372) |
| 16 | Release mechanism | 93184376 |
| Assembly instruction | 93184860 | |
| 17 | Screw | 11900376 |
| 19 | Sensor | 12772217 (replaces 12804195) |
| 19 | Sensor | 12772217 (replaces 12762215) |
| 19 | Sensor | 12778698 (replaces 12767653) |
| 19 | Sensor | 12778698 (replaces 12774874) |
| 19 | Sensor | 12778698 |
| 20 | Electronic unit | 12762953 (replaces 12802582) |
| 20 | Electronic unit | 12762954 (replaces 12756355) |
| 20 | Electronic unit | 12762954 |
| 20 | Control unit | 12841443 (replaces 12771236) |
| 20 | Control unit | 12841443 (replaces 12778700) |
| 20 | Control unit | 12841443 |
| 22 | Sensor | 12772219 (replaces 12802258) |
| 22 | Sensor | 12772219 (replaces 12762214) |
| 22 | Sensor | 12778699 (replaces 12767652) |
| 22 | Sensor | 12778699 (replaces 12774875) |
| 22 | Sensor | 12778699 |
| 23 | Cap | 12763983 (replaces 12831651) |
| 23 | Cap | 12763982 (replaces 12831652) |
| 24 | Screw | 11900377 |
| 30 | Cover | 12759300 (replaces 12830234) |
| 30 | Cover | 12759300 |
| 30 | Cover | 12759299 (replaces 12831251) |
| 30 | Cover | 12759299 |
| 30 | Cover | 12759298 (replaces 12833977) |
| 30 | Cover | 12759298 |
| 30 | Cover | 12759297 (replaces 12833978) |
| 30 | Cover | 12759297 |
| 30 | Cover | 12775617 |
| 31 | Cover | 12833393 |
| 31 | Cover | 12759295 |
| 31 | Cover | 12759293 |
| 31 | Cover | 12833397 |
| 31 | Cover | 12759294 |
| 31 | Cover | 12759292 |
| 31 | Cover | 12778857 |
| 31 | Cover | 12778856 |
| 32 | Tie strap | 12831072 |
| 33 | Bracket | 12830935 |
| 33 | Bracket | 12831038 |
| 34 | Bracket | 12830623 |
| 35 | Nut | 12833876 |
| 36 | Screw | 11900329 |
| 37 | Clamp | 92152185 |
| 1 | Cover | 12775618 |
