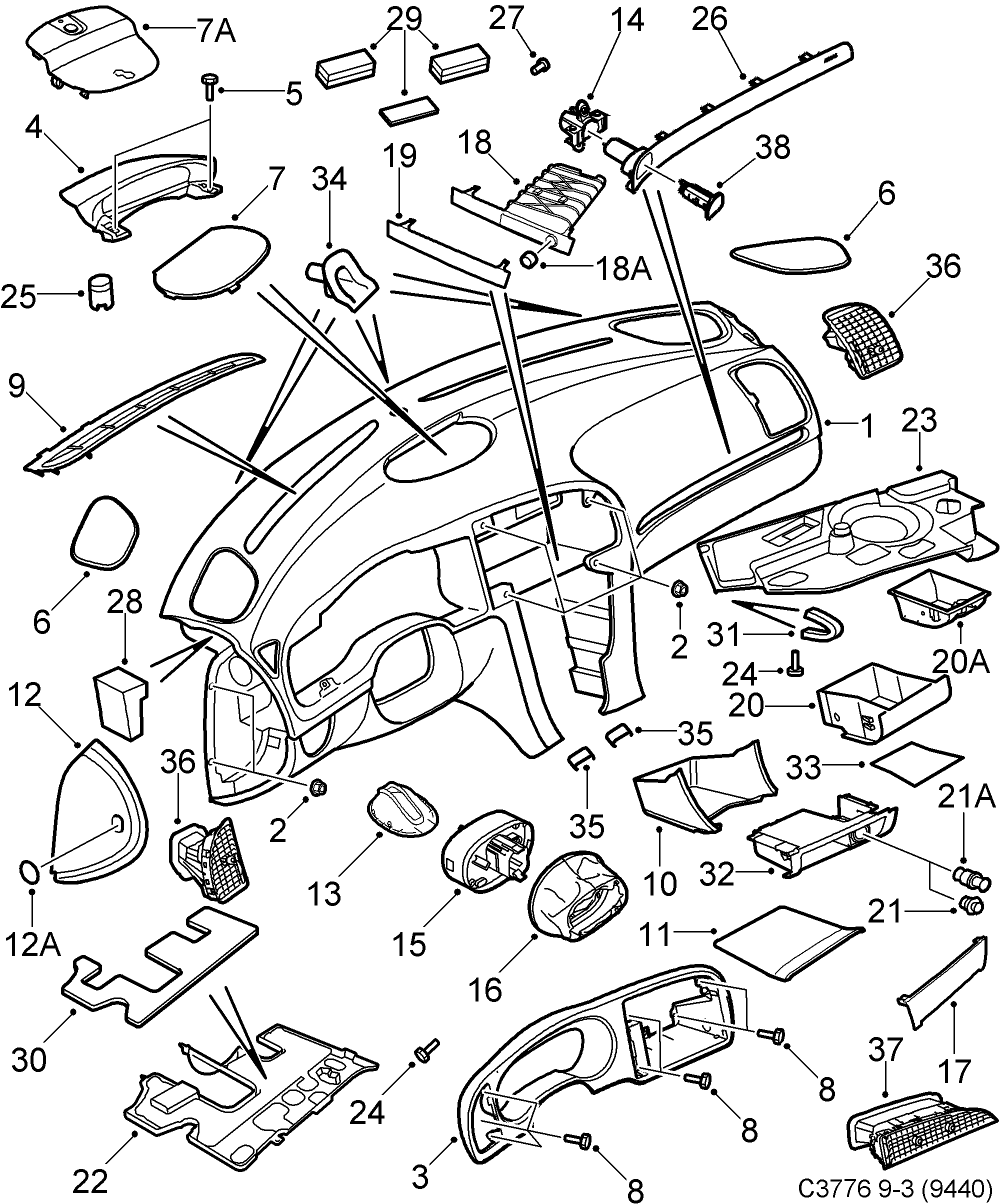

Group 8b Car body, internal, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Instrument panel | 12785404 |
| 1 | Instrument panel | 12769072 (replaces 12803965) |
| 1 | Instrument panel | 12769072 |
| 1 | Instrument panel | 12845799 |
| 1 | Instrument panel | 12789298 |
| 1 | Instrument panel | 12769074 (replaces 12803967) |
| 1 | Instrument panel | 12769074 |
| 1 | Instrument panel | 12764365 |
| 1 | Instrument panel | 12785405 |
| 1 | Instrument panel | 12769073 (replaces 12803966) |
| 1 | Instrument panel | 12769073 |
| 1 | Instrument panel | 12845798 |
| 1 | Instrument panel | 12789299 |
| 1 | Instrument panel | 12769075 (replaces 12803968) |
| 1 | Instrument panel | 12769075 |
| 1 | Instrument panel | 12764361 |
| 1 | Instrument panel | 12804118 |
| 1 | Instrument panel | 12804120 |
| 1 | Instrument panel | 12804119 |
| 1 | Instrument panel | 12804121 |
| 1 | Instrument panel | 12845801 |
| 1 | Instrument panel | 12845800 |
| 2 | Nut | 92152037 |
| 3 | Instrument plate | 12785417 |
| 3 | Instrument plate | 12785418 |
| 3 | Instrument plate | 12764394 |
| 3 | Instrument plate | 12764393 |
| 3 | Instrument plate | 12848091 |
| 3 | Instrument plate | 12848090 |
| 3 | Instrument plate | 12827555 |
| 3 | Instrument plate | 12827554 |
| 4 | Cover | 12803969 (replaces 12785410) |
| 4 | Cover | 12803969 |
| 5 | Screw | 12780283 (replaces 92152214) |
| 6 | Grille, loudspeaker | 12801531 (replaces 12785406) |
| 6 | Grille, loudspeaker | 12801531 |
| 6 | Grille, loudspeaker | 12766234 |
| 6 | Grille, loudspeaker | 12801532 (replaces 12785407) |
| 6 | Grille, loudspeaker | 12801532 |
| 6 | Grille, loudspeaker | 12847319 |
| 6 | Grille, loudspeaker | 12766233 |
| 6 | Grille, loudspeaker | 12801533 (replaces 12788672) |
| 6 | Grille, loudspeaker | 12801533 |
| 6 | Grille, loudspeaker | 12766232 |
| 6 | Grille, loudspeaker | 12847320 |
| 6 | Grille, loudspeaker | 12801534 (replaces 12788673) |
| 6 | Grille, loudspeaker | 12801534 |
| 6 | Grille, loudspeaker | 12766231 |
| 7 | Grille, loudspeaker | 12785408 |
| 7A | Grille | 12764391 |
| 7 | Grille, loudspeaker | 12785409 |
| 7A | Grille | 12764389 |
| 9 | Grille | 12804139 (replaces 12791135) |
| 9 | Grille | 12804139 |
| 9 | Grille | 12762144 |
| 9 | Grille | 12804140 (replaces 12791136) |
| 9 | Grille | 12804140 |
| 9 | Grille | 12762143 |
| 10 | Storage tray | 12802543 (replaces 12785421) |
| 10 | Storage tray | 12802543 |
| 10 | Storage tray | 12802544 (replaces 12788628) |
| 10 | Storage tray | 12802544 |
| 11 | Rubber mat | 12793324 |
| 11 | Rubber mat | 12802541 |
| 11 | Rubber mat | 12793325 |
| 11 | Rubber mat | 12802542 |
| 12 | Cover | 12805997 (replaces 12798075) |
| 12 | Cover | 12805997 (replaces 12801747) |
| 12 | Cover | 12805997 (replaces 12803112) |
| 12 | Cover | 12805997 |
| 12 | Cover | 12801749 (replaces 12785416) |
| 12 | Cover | 12801749 |
| 12 | Cover | 12843772 |
| 12A | Plug | 12843773 |
| 13 | Cover | 12786985 |
| 13 | Cover | 12785426 |
| 13 | Steering column cover | 12762828 |
| 14 | Linkage | 12793335 |
| 14 | Linkage | 12793336 |
| 15 | Electronic unit | 12805195 (replaces 12800627) |
| 15 | Electronic unit | 12805195 (replaces 12800468) |
| 15 | Electronic unit | 12805195 (replaces 12801012) |
| 15 | Electronic unit | 12805195 (replaces 12800182) |
| 15 | Electronic unit | 12805195 |
| 15 | Electronic unit | 12769670 (replaces 12805561) |
| 15 | Electronic unit | 12769670 (replaces 12760548) |
| 15 | Electronic unit | 12769670 (replaces 12761348) |
| 15 | Electronic Module | 12769670 |
| 15 | Electronic Module | 12777260 |
| 15 | Control unit | 12842075 |
| 15 | Electronic unit | 12805194 (replaces 12800626) |
| 15 | Electronic unit | 12805194 (replaces 12800467) |
| 15 | Electronic unit | 12805194 (replaces 12801013) |
| 15 | Electronic unit | 12805194 (replaces 12800181) |
| 15 | Electronic unit | 12805194 |
| 15 | Electronic unit | 12842076 (replaces 12805559) |
| 15 | Electronic unit | 12842076 (replaces 12760547) |
| 15 | Electronic unit | 12842076 (replaces 12761347) |
| 15 | Electronic Module | 12842076 (replaces 12769671) |
| 15 | Electronic Module | 12842076 (replaces 12777261) |
| 15 | Control unit | 12842076 |
| 15 | Electronic unit | 12805197 (replaces 12800629) |
| 15 | Electronic unit | 12805197 (replaces 12800470) |
| 15 | Electronic unit | 12805197 (replaces 12801014) |
| 15 | Electronic unit | 12805197 (replaces 12800184) |
| 15 | Electronic unit | 12805197 |
| 15 | Electronic unit | 12805560 |
| 15 | Electronic unit | 12777262 (replaces 12760546) |
| 15 | Electronic unit | 12777262 (replaces 12761346) |
| 15 | Electronic unit | 12777262 (replaces 12769672) |
| 15 | Electronic Module | 12777262 |
| 15 | Electronic Module | 12842077 (replaces 12779246) |
| 15 | Control unit | 12842077 |
| 15 | Electronic unit | 12805196 (replaces 12800628) |
| 15 | Electronic unit | 12805196 (replaces 12800469) |
| 15 | Electronic unit | 12805196 (replaces 12801015) |
| 15 | Electronic unit | 12805196 (replaces 12800183) |
| 15 | Electronic unit | 12805196 |
| 15 | Electronic unit | 12842078 (replaces 12805558) |
| 15 | Electronic unit | 12842078 (replaces 12760545) |
| 15 | Electronic unit | 12842078 (replaces 12761345) |
| 15 | Electronic Module | 12842078 (replaces 12769673) |
| 15 | Electronic Module | 12842078 (replaces 12777263) |
| 15 | Electronic Module | 12842078 (replaces 12779247) |
| 15 | Control unit | 12842078 |
| 15 | Control unit | 12847562 |
| 15 | Control unit | 12847563 |
| 16 | Steering column cover | 12805634 (replaces 12785419) |
| 16 | Steering column cover | 12805634 |
| 17 | Cover | 12794241 |
| 18 | Cup holder | 12784431 (replaces 12794289) |
| 18 | Cup holder | 12784431 (replaces 12802003) |
| 18 | Cup holder | 12774395 (replaces 12764386) |
| 18 | Cup holder | 12774395 |
| 18 | Cup holder | 12784433 (replaces 12794288) |
| 18 | Cup holder | 12784433 (replaces 12802004) |
| 18 | Cup holder | 12774394 (replaces 12764384) |
| 18 | Cup holder | 12774394 |
| 18 | Cup holder | 12784432 (replaces 12794290) |
| 18 | Cup holder | 12784432 (replaces 12802005) |
| 18 | Cup holder | 12764382 |
| 18 | Cup holder | 12774393 |
| 18A | Push button | 12797635 |
| 19 | Cover | 12797639 |
| 19 | Cover | 12784433 (replaces 12797643) |
| 19 | Cover | 12797644 |
| 19 | Cover | 12764379 |
| 20 | Ashtray | 12785423 |
| 20 | Ashtray | 12789501 |
| 20A | Ashtray | 93167100 |
| 21 | Cover | 12785425 |
| 21A | Cigarette lighter | 12785424 |
| Bulb | 93190474 (replaces 12798389) | |
| 22 | Sound insulating baffle | 12790030 |
| 22 | Sound insulating baffle | 12805998 (replaces 12799930) |
| 22 | Sound insulating baffle | 12805998 |
| 22 | Insulation | 12775646 |
| 22 | Sound insulating baffle | 12806000 (replaces 12804526) |
| 22 | Sound insulating baffle | 12806000 |
| 22 | Insulation | 12775641 |
| 22 | Sound insulating baffle | 12790031 |
| 22 | Sound insulating baffle | 12805999 (replaces 12799929) |
| 22 | Sound insulating baffle | 12805999 |
| 22 | Insulation | 12775645 |
| 22 | Sound insulating baffle | 12806001 (replaces 12804529) |
| 22 | Sound insulating baffle | 12806001 |
| 22 | Insulation | 12775642 |
| 23 | Sound insulating baffle | 12801561 (replaces 12790032) |
| 23 | Sound insulating baffle | 12801561 |
| 23 | Insulation | 12775643 |
| 23 | Sound insulating baffle | 12804527 |
| 23 | Insulation | 12775640 |
| 23 | Sound insulating baffle | 12801562 (replaces 12790033) |
| 23 | Sound insulating baffle | 12801562 |
| 23 | Insulation | 12775644 |
| 23 | Sound insulating baffle | 12804528 |
| 23 | Insulation | 12775647 |
| 24 | Screw | 12780283 |
| 24 | Screw | 4462206 |
| 25 | Cover plate | 12789016 |
| 26 | Decor strip | 12780473 (replaces 12793333) |
| 26 | Decor strip | 12780473 |
| 26 | Decor strip | 12767168 |
| 26 | Decor strip | 12767170 |
| 26 | Decor strip | 12771620 |
| 26 | Decor strip | 12793334 |
| 26 | Decor strip | 12780474 |
| 26 | Decor strip | 12767167 |
| 26 | Decor strip | 12767169 |
| 26 | Decor strip | 12771619 |
| 26 | Decor strip | 12779655 |
| 26 | Decor strip | 12779656 |
| 26 | Decor strip | 12781621 |
| 26 | Decor strip | 12781622 |
| 26 | Plate | 12848100 |
| 26 | Plate | 12848097 |
| 26 | Plate | 12848096 |
| 26 | Plate | 12848099 |
| 26 | Plate | 12848098 |
| 26 | Plate | 12848101 |
| 26 | Decor strip | 12847269 |
| 26 | Decor strip | 12767162 |
| 26 | Decor strip | 12767164 |
| 26 | Decor strip | 12771618 |
| 26 | Decor strip | 12847268 |
| 26 | Decor strip | 12767161 |
| 26 | Decor strip | 12767163 |
| 26 | Decor strip | 12771617 |
| 26 | Decor strip | 12782940 |
| 26 | Decor strip | 12782941 |
| 26 | Plate | 12848103 |
| 26 | Plate | 12848106 |
| 26 | Plate | 12848102 |
| 26 | Plate | 12848105 |
| 26 | Plate | 12848104 |
| 26 | Plate | 12848107 |
| 27 | Screw | 92153222 (replaces 92150119) |
| 28 | Spacer | 12801139 |
| 28 | Spacer | 4858098 |
| 29 | Shim | 12802264 |
| 30 | Insulation | 12799911 |
| 30 | Insulation | 12799912 |
| 31 | Foam part | 12801535 |
| 32 | Storage tray | 12802362 |
| 32 | Storage tray | 12802363 |
| 33 | Rubber mat | 12806035 |
| 34 | Guide | 12790830 |
| 35 | Tape | 12756972 |
| 38 | Release mechanism | 12823165 |
| 38 | Release mechanism | 12823601 |
